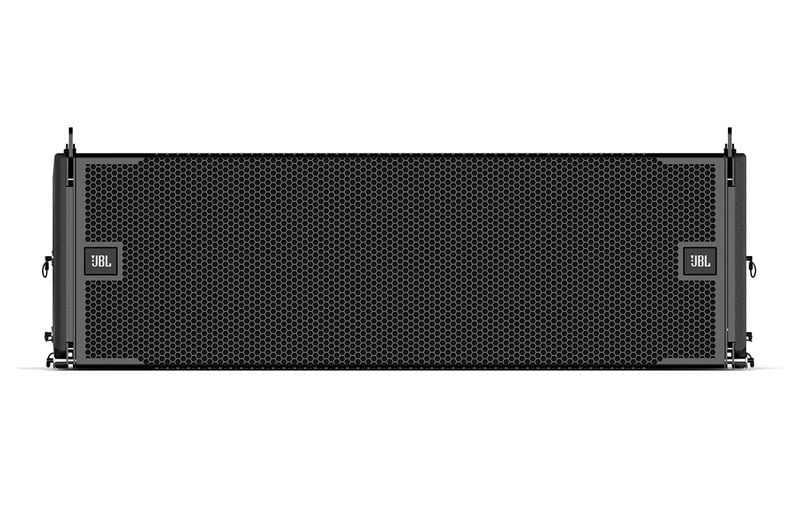

Jbl VTX A12 2x12'' Son Jenerasyon Line Array Kabin Hoparlör
Next Generation Dual 12" Line Array Loudspeaker
JBL VTX A12 is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. VTX A12 was designed from scratch to address the unique challenges of rental companies, FOH engineers and tour sound production crews. Next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage. A patented JBL rigging mechanism and redesigned suspension system streamline deployment and setup. And refinements to the physical design maximize reliability and versatility, while minimizing size and dramatically reducing weight. VTX A12 isn’t just a superior line array—it’s a completely new way to approach tour sound.
New and improved JBL transducers for the best output per weight
Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels
Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion, and 90-degree coverage down to 250 Hz
Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion
Best-in-class rigging for streamlined, rapid deployment
Full-face grill for superior weatherization and refined aesthetics
New transport cart and frame for simplified transport and setup
Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance
Full integration with JBL system control and prediction software
Lightweight design
Frequency Response 46 Hz - 19 kHz (Preset: VTX A12)
Coverage Pattern Horizontal: 90 degrees nominal (250Hz - 18kHz)
Vertical: Varies with array size and configuration
Max SPL 146 dB (Preset: VTX A12)
System Processing Crown Audio I-Tech HD Series, Crown Audio I-Tech 4x3500HD
IP Rating IP55 EN (60529)
UV Rating 6 (ISO105-B01)
Dimensions (H x W x D) 330.2mm x 1117.6mm x 495.3mm
13.0in x 44.0in x 19.5in
Weight 60.8 kg (134.0 lbs)
