2 x 10" Woofers, 1 x 2" Compression Driver, 1400 Watt Peak power - 700 Watt RMS

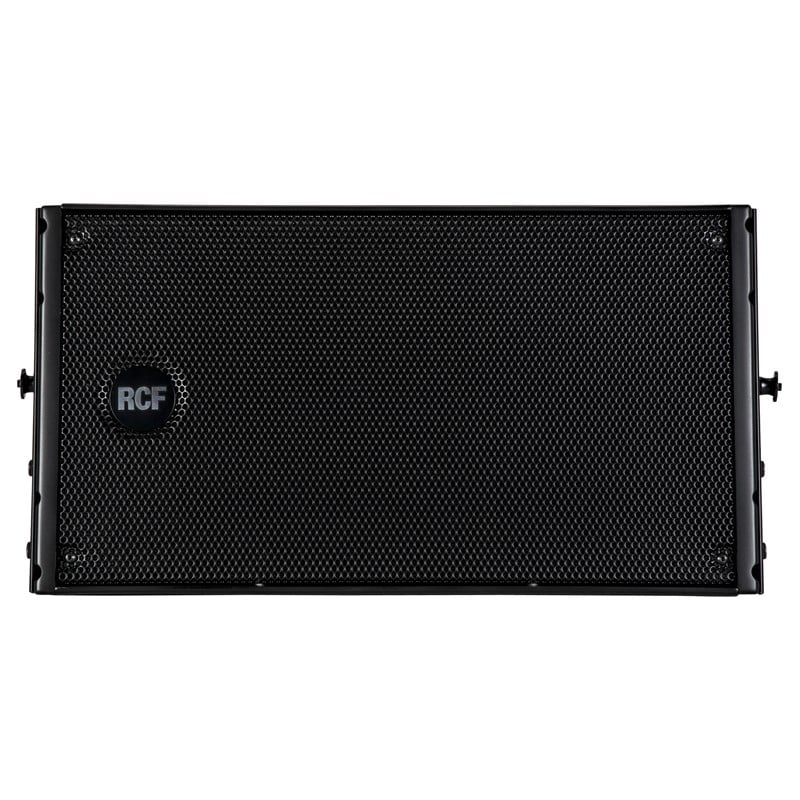

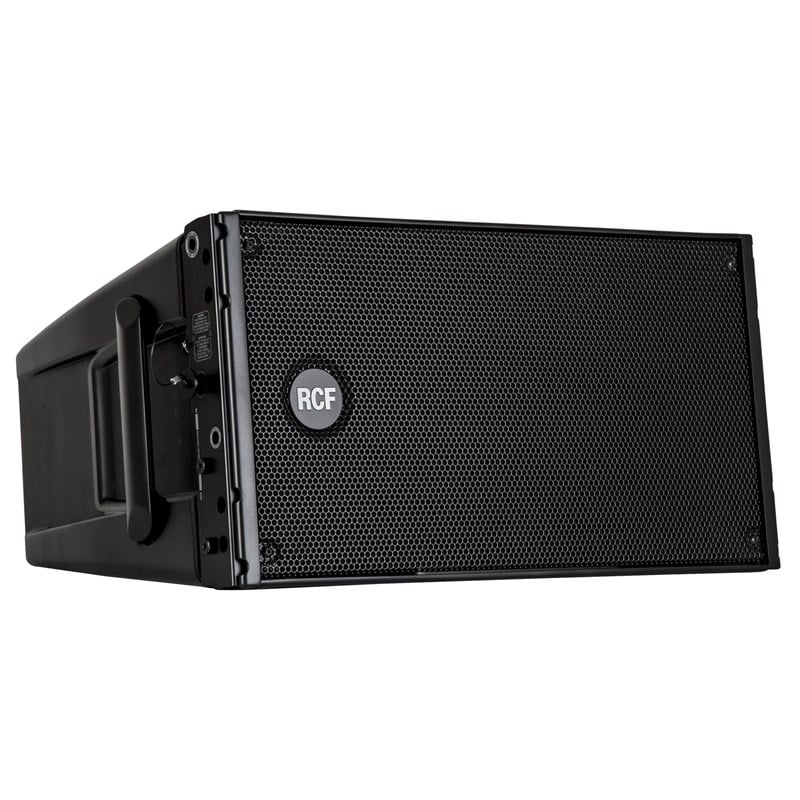

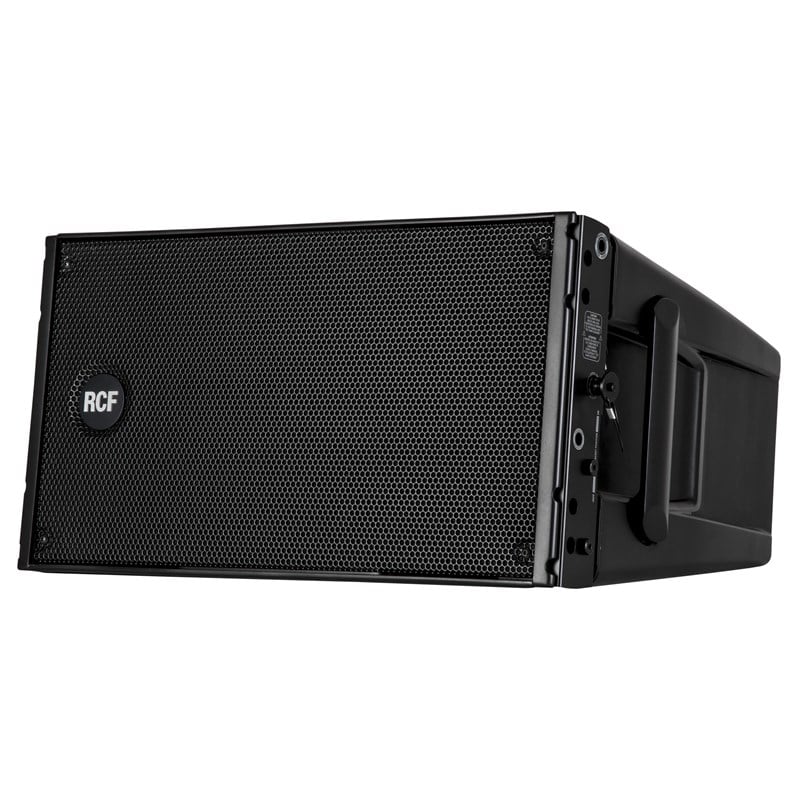

Rcf HDL 20-A 2x10 inç 700W RMS Aktif Line Array Modül

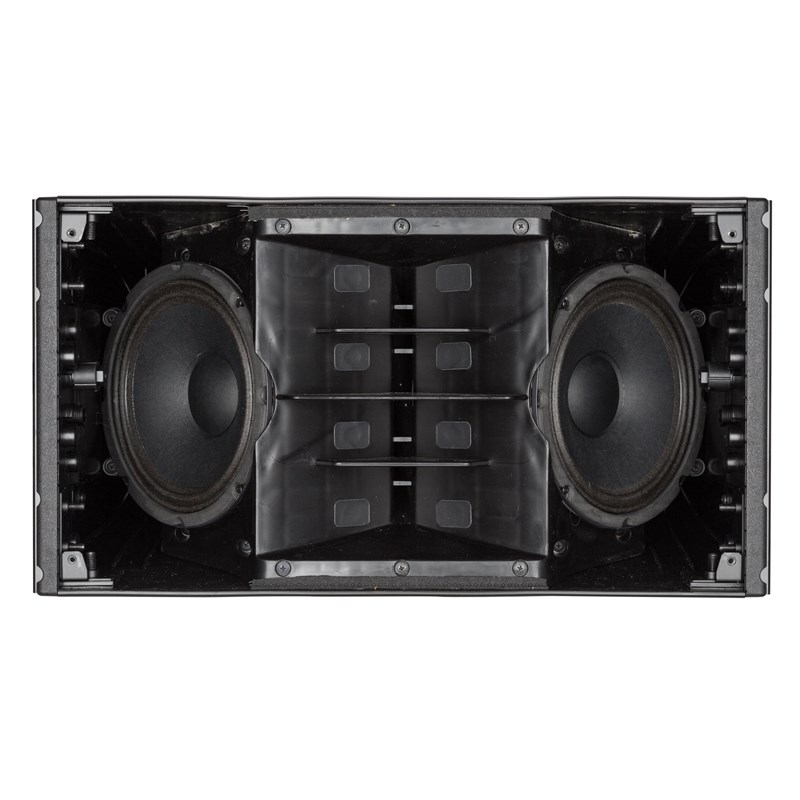

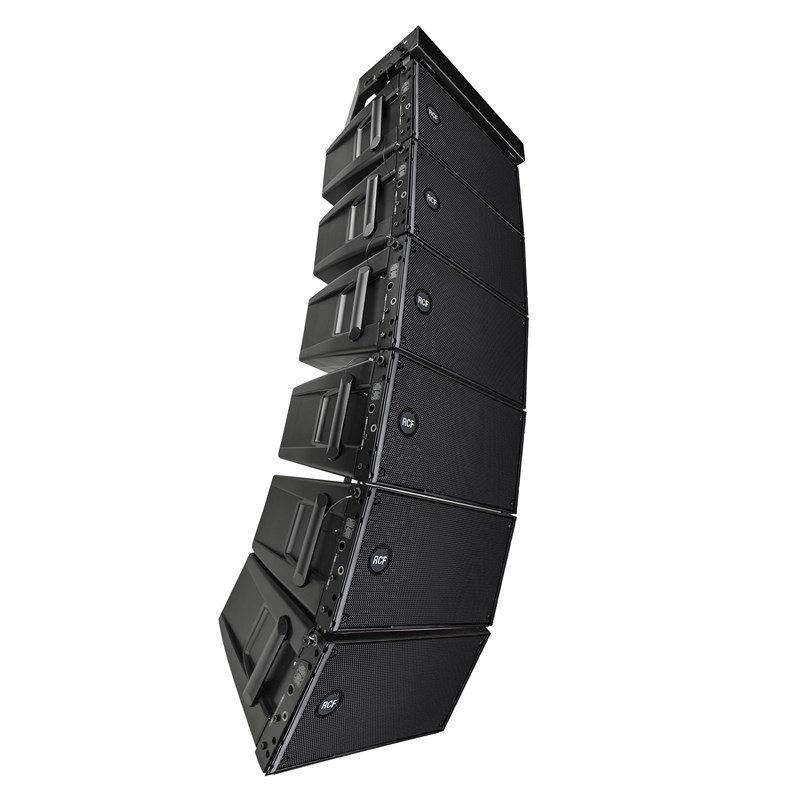

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system. • 1400 Watt Peak power - 700 Watt RMS • 135 dB max SPL • 55 Hz 20 kHz frequency response • 2 x 10" Woofers • 1 x 2" Compression Driver • DSP controlled Input section with selectable presets • Tour grade safe and solid variable mechanics • Composite PP enclosure structurally wooden reinforced
TOUR SOUND IN A COMPACT SIZE The HDL 20-A is a true active and high power ready to use touring system equipped with a high efficiency digital amplifier that delivers superior SPL reducing energy requirement. The integrated processing and the cabling reduction will make the set-up faster and easier and, thanks to its compact size, the truck space requirement is reduced to the minimum.
POWERFUL CLASS D AMPLIFIER RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.
THE IDEAL FLYABLE BASS COMPLEMENT The bass reflex design guarantees a deep, linear power response while the 4” voice coil vented woofer design offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module. The HDL 18-AS is a compact, flyable high-power subwoofer, designed to integrate seemlessly into a HDL 20-A flown array.

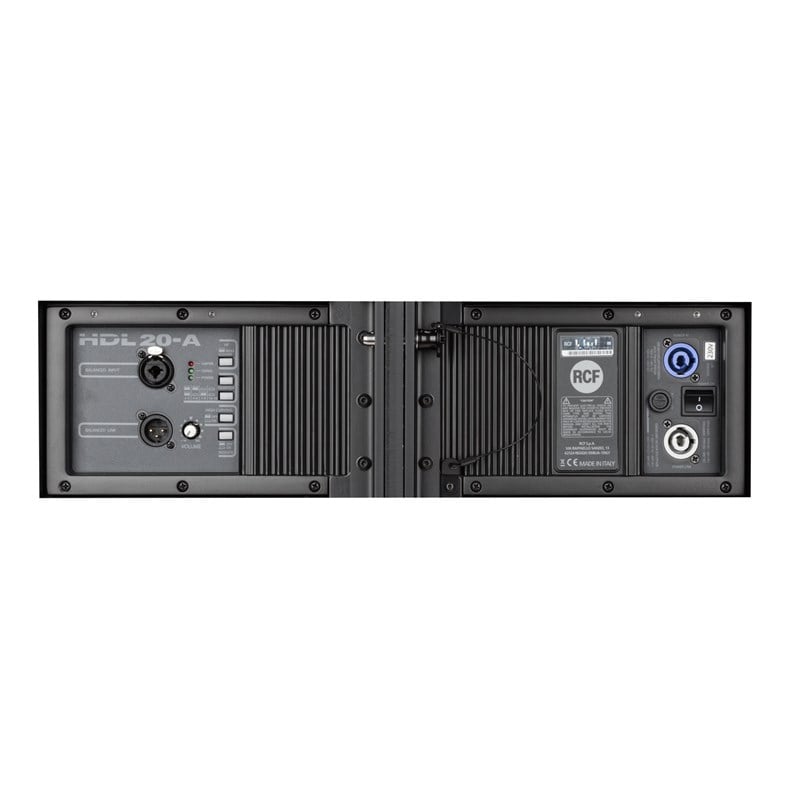

FREQUENCY RESPONSE: 55 Hz ÷ 20000 Hz MAX SPL @ 1M: 135 dB HORIZONTAL/VERTICAL COVERAGE ANGLE:100°/15° COMPRESSION DRIVER: 1 x 2.0", 3" v.c WOOFER: 2 x 10", 2.5" v.c INPUT CONNECTORS: XRL OUTPUT CONNECTORS: XLR INPUT SIGNAL: bal/unbal INPUT SENSITIVITY: -2 dBu/+4 dBu CROSSOVER FREQUENCIES: 800 Hz PROTECTIONS: Thermal, RMS LIMITER: Soft Limiter HIGH/LOW FREQUENCIES: 400 W Peak, 200 W RMS/ 1000 W Peak, 500 W RMS CONTROLS: Cluster, HF, High curving, Indoor TOTAL POWER: 1400 W Peak, 700 W RMS
COOLING: Convection CE MARKING: Yes CONNECTIONS: Powercon IN/OUT CABINET/CASE MATERIAL: PP Composite HARDWARE: Rigging flyware HANDLES: 2 side, 2 back GRILLE: Steel COLOR: Black HEIGHT: 294 mm / 11.57 inches WIDTH: 705 mm / 27.76 inches DEPTH: 445 mm / 17.52 inches WEIGHT: 30.2 kg / 66.58 lbs PACKAGE HEIGHT: 375 mm / 14.76 inches PACKAGE WIDTH: 800 mm / 31.5 inches PACKAGE DEPTH: 500 mm / 19.69 inches PACKAGE WEIGHT: 33.2 kg / 73.19 lbs
