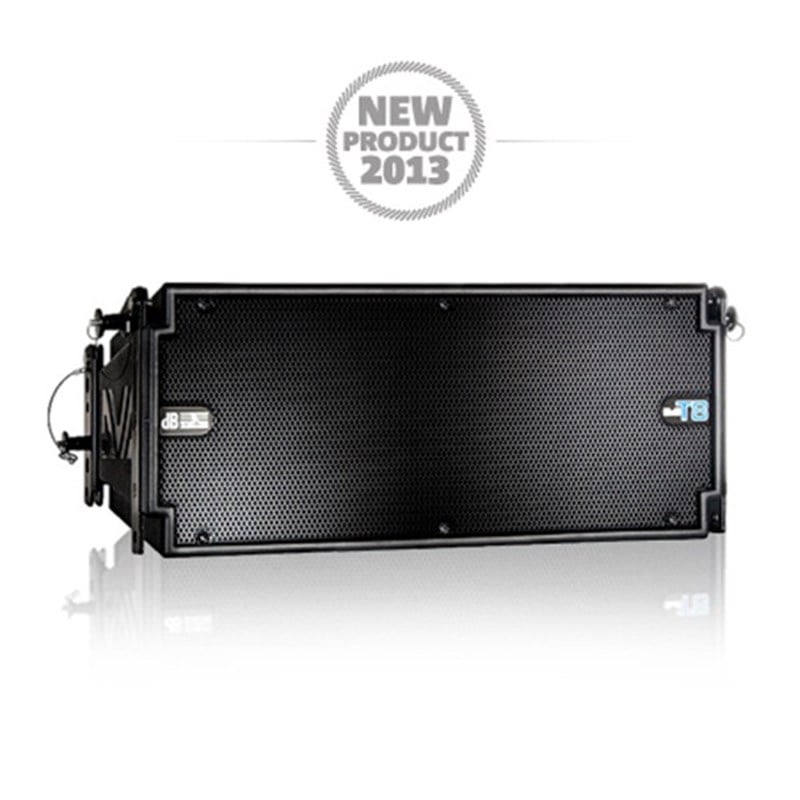

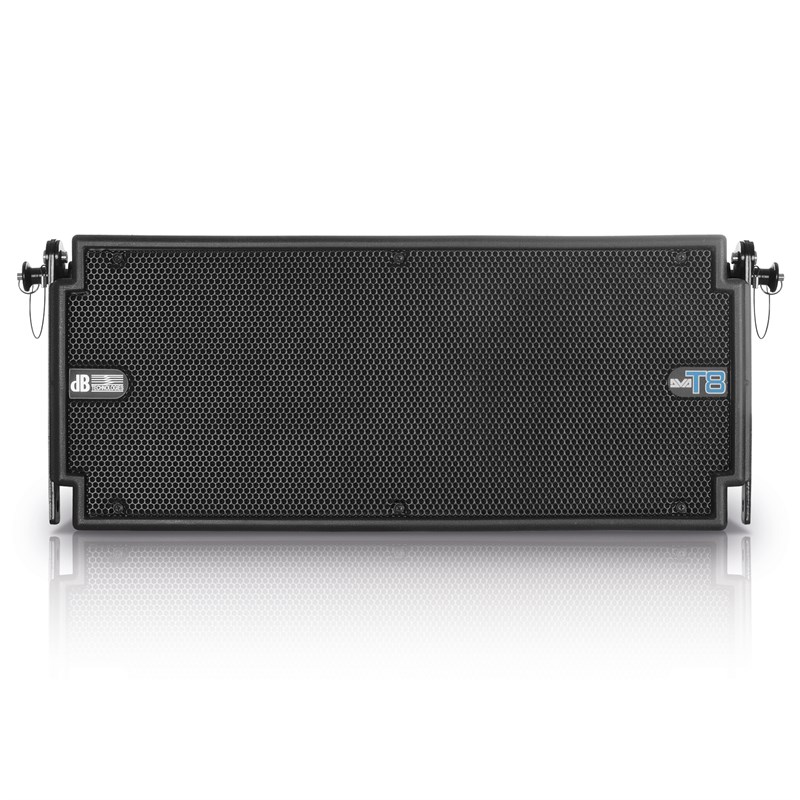

dB Technologies Dva T8 - 8 inç 700 Watt Rms Aktif Line Array Modül
Technical Data
Speaker Type 3-Way Active Line Array Module
Acoustical data
Frequency Response [-6dB] 66 - 18.000 Hz
Max SPLOne Unit: 132 dB
HF2x1 "
Voice Coil HF1.4 "
Directivity100x15 ° Single unit
MF1x 6.5 "
Voice Coil MF2 "
LF8 "
Voice Coil LF2.5 "
Amplifier
Amp TechnologyDigipro® G2
Amp ClassClass D
HF Amp175 W RMS
MF Amp175 W RMS
LF Amp350 W RMS
CoolingConvection
Processor
ControllerDSP 56 bit with double precision filters
AD/DA Converter24 bit/96 kHz
System Presets9, (8xHF and Low-mid correction)
LimiterDual Active Limiter
Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF1900 Hz
Slope MF-HF24 dB/Octave
Crossover Frequency LF-MF400 Hz
Slope LF-MF24 dB/Octave
Input
Signal Input1x XLR fem, Bal.
Signal Output1x XLR male, Bal.
NetworkRDnet remote control RJ45 connector IN/OUT
Power Socket1x Powercon In
1x Powercon Out
Voltage Range90 - 240 V
Mechanics
HousingPolypropylen PP
Metal reinforced
Housing DesignTrapezoidal 15°
Rain CoverIncluded

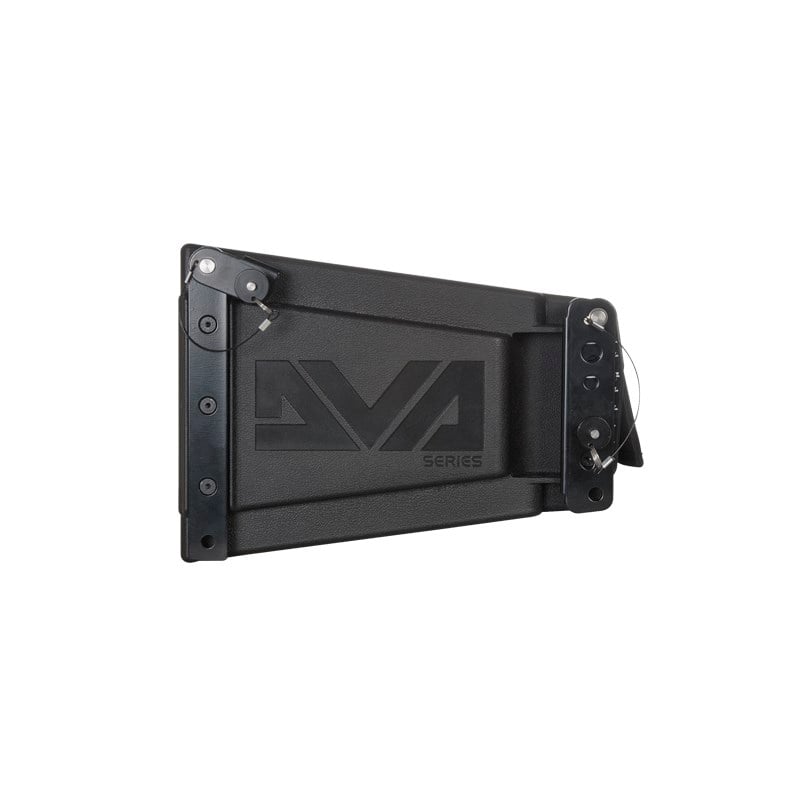

Rigging PointsIntegrated rigging hardware
Width580 mm (23.2 in)
Height240 mm (9.6 in)
Depth327 mm (13.08 in)
Weight14,2 kg (31.3 lbs)
