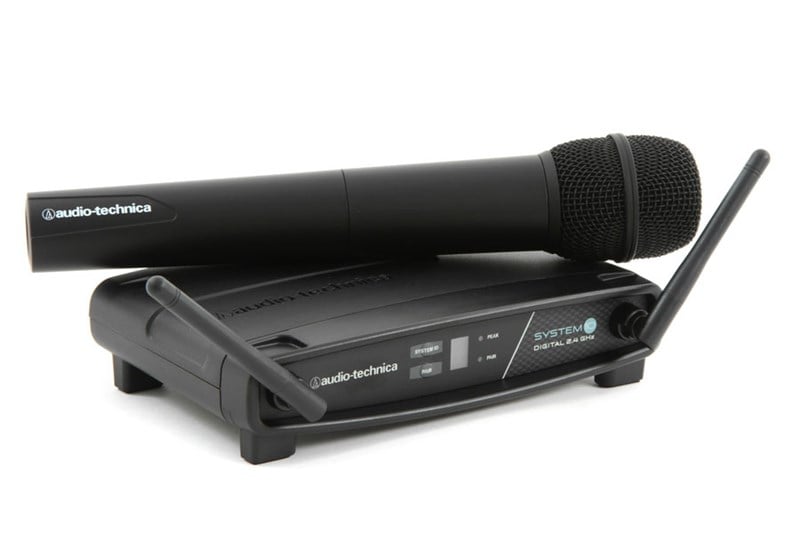

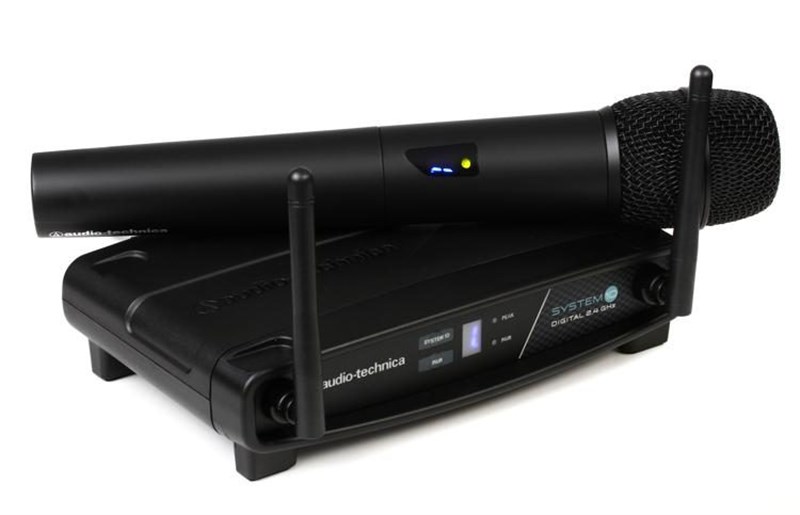

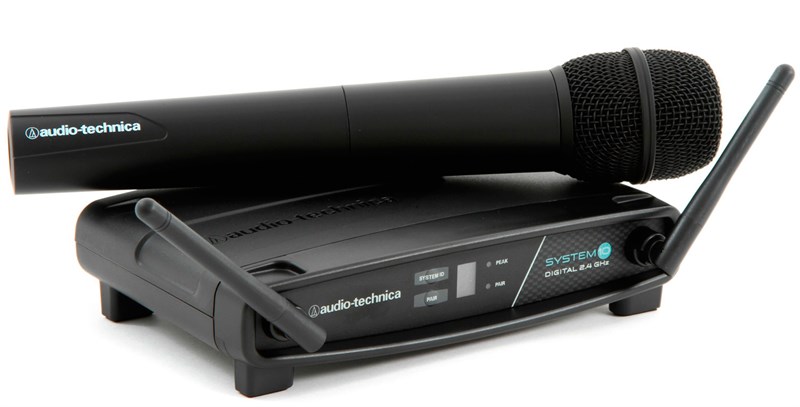

Audio Technica ATW-1102 Kablosuz Dinamik Vokal Mikrofonu
ATW-R1100 receiver
ATW-T1002 handheld dynamic unidirectional microphone/transmitter
2.4 GHz range – completely free from TV interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection
State-of-the-art digital receiver for reliable performance
Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
2.4 GHz range – completely free from TV/ 3G interference
Three levels of diversity assurance: frequency, time, & space
Automatic frequency selection for seamless, interference-free operation
Automatic Frequency Selection. Plug & Play. Ease of use and reliability
Extremely easy operation with instantaneous channel selection, sync, and set-up
State-of-the-art digital receiver for reliable performance

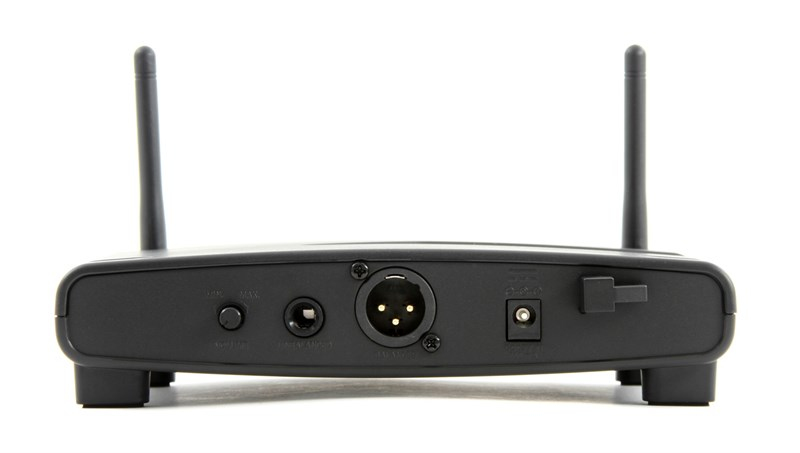

Balanced XLR and unbalanced 1/4” output jacks with level control
Overall System
Operating Frequencies 2.4 GHz ISM band
Frequency Response 20 Hz to 20 kHz Depending on microphone type
Operating Range 30 m (100') Open range env. with no interfering signals
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion <0.05% typical
Operating Temperature Range 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Audio Sampling 24 bit / 48 kHz
Latency 3.8 ms
Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Dimensions 190 mm W x 46.2 mm Hx 128.5 mm D
Weight 290g
Accessories Included Power supply
Handheld Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Battery Type Two 1.5V AA (not included)
Battery Life >7 hours (alkaline) (Depending on battery type and use pattern)
Dimensions 254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight 280g
Accessories Included AT8456a Quiet-Flex™ stand clamp
