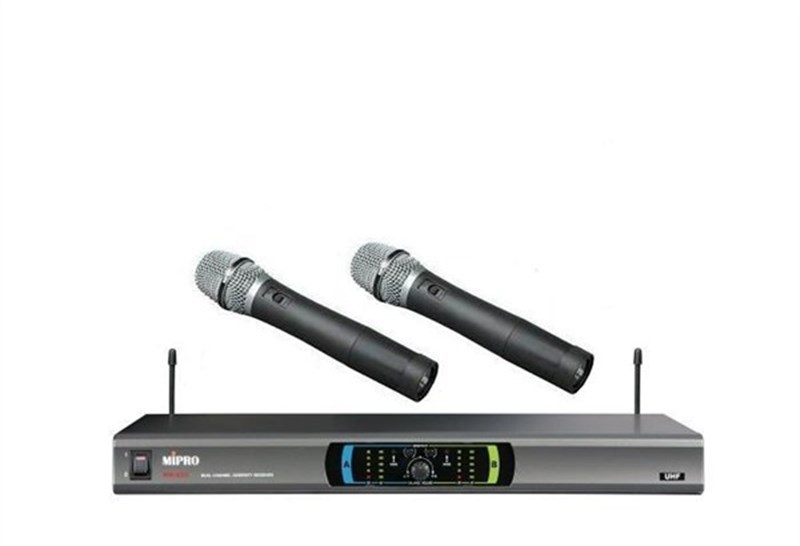

Mipro MR-823 EL UHF Çift El Kablosuz Mikrofon Seti
MR-823 Dual-Channel Diversity Receiver
CPU diversity technology ensures stable signal quality and avoids signal drop-out.
PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
RF and audio level LED indicators.
Adjustable ‘SQ’ for increased or decreased sensitivity level for increased reception range or interference management.
Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.
Chassis |
EIA Standard 19 " 1U metal chassis |
|
|
|
|
|
Frequency Range |
UHF 480 ~ 934 MHz |
|
|
|
|
|
Oscillation Mode |
PLL Synthesized fixed-frequency. |
|
|
|
|
|
Receiving Mode |
Diversity receiving |
|
|
|
|
|
Deviation |
< ± 40 kHz |
|
|
|
|
|
S/N Ratio |
> 106 dB(A) |
|
|
|
|
|
T.H.D. |
< 0.5% @ 1 kHz |
|
|
|
|
|
Frequency Response |
50 Hz ~ 18 kHz |
|
|
|
|
|
Max. Output Level |
3-Level Switch: +10 dBV / 0 dBV / -6 dBV |
|
|
|
|
|
Sensitivity |
10 dBμV at S/N > 80 dB |
|
|
|
|
|
Squelch |
“PiloTone & NoiseLock” dual-squelch circuit |
|
|
|
|
Power Supply |
12 ~ 15V DC, 1A |
|
|
|
|
|
Dimensions (W × H × D) |
420 × 44 × 204 mm / 17 × 1.7 × 8.0 " |
|
|
|
|
|
Net Weight |
Approx. 1.7 kg / 3.7 lbs |
|
|
|
|
|
Note |
Refer to actual product in the event of product discrepancy. |
|
|
|
|
Frequency range and maximum deviation comply with the regulations of different countries.
|
MH-80 Handheld Transmitter
Fixed frequency with PLL synthesized technology ensures no need for frequency setup.
Innovatively designed housing combines aesthetics and ergonomic style.
Unique sturdy multi-layered steel grilles protect the capsule against impact, anti-roll and pop noise. Interior grille with fine metal mesh instead of sponge foam minimizes pop & breath noises and ensures transparent sound clarity.
Patented, integrated grille and battery housing design enable fast and easy 2 AA battery installation and replacement.
Sturdy housing with color-coded channel identification rings.
Low-battery warning indicator also determines battery freshness.
Patented lockable, silent on/off switch.
Proprietary quality condenser capsule exhibits high fidelity, wide dynamic range, transparent sound quality, and withstands maximum SPL.
Up to 24 hours of continuous operation with 2 AA alkaline batteries.
Housing |
Rugged plastic housing |
|
|
|
|
|
Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
|
|
|
|
|
Oscillation Mode |
PLL Synthesized fixed-frequency |
|
|
|
|
|
RF Output Power |
10 ~ 30 mW (country dependent) |
|
|
|
|
|
Spurious Emissions |
< -55 dBc |
|
|
|
|
|
Max. Input Level |
140 dB SPL |
|
|
|
|
|
Display |
LED indicator for power on/off and low battery status |
|
|
|
Battery Type |
2 × AA alkaline |
|
|
|
|
|
Max. Input Level |
140 SPL |
|
|
|
|
|
Operating Time |
Min. 17 hours |
|
|
|
|
|
Mic Capsule Module |
Condenser or Dynamic options |
|
|
|
|
|
Dimensions (Ø × L) |
51 × 234 mm / 2 × 9.2 " |
|
|
|
|
|
Net Weight |
Approx. 199 g / 7 oz |
|
|
|
|
|
Note |
Refer to actual product in the event of product discrepancy. |
|
|
|
|
Frequency range and maximum deviation comply with the regulations of different countries. |
