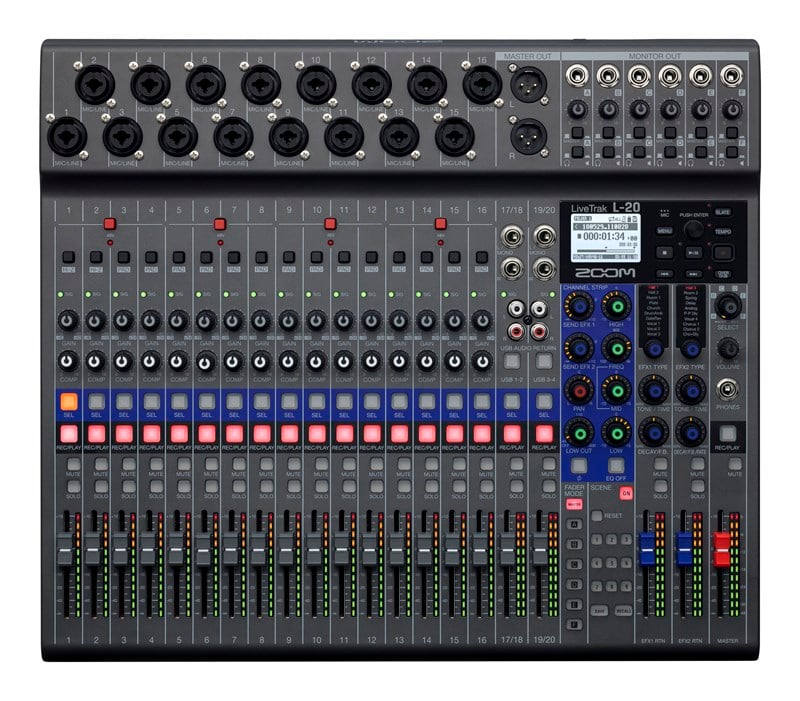

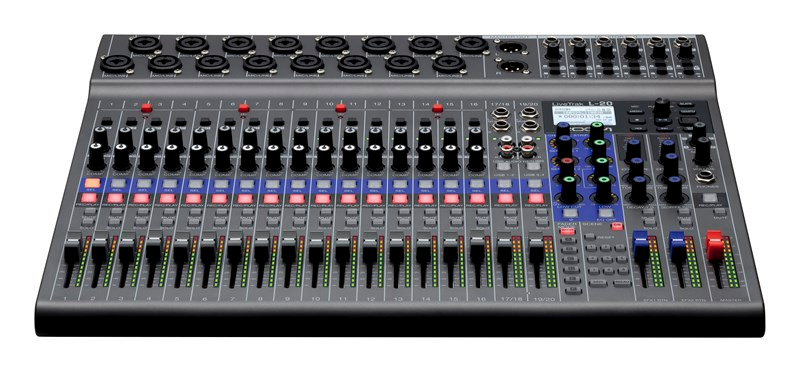

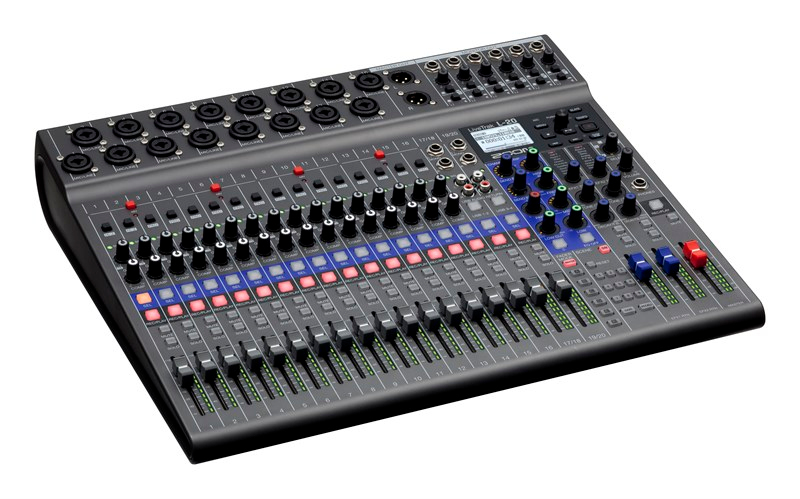

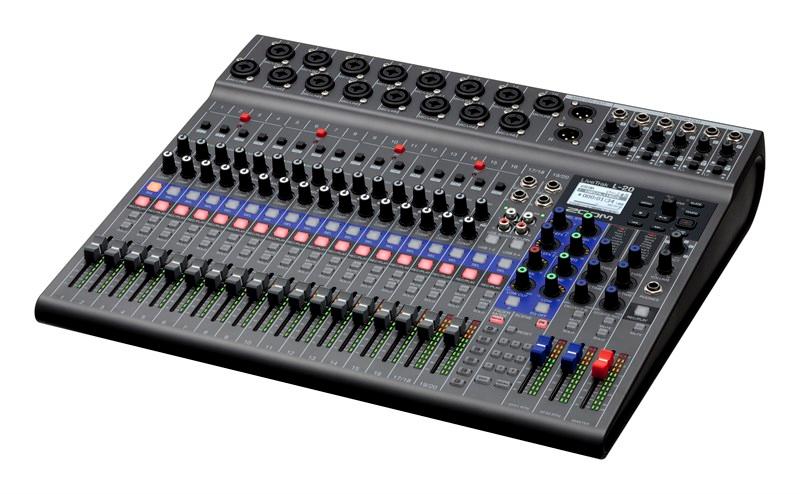

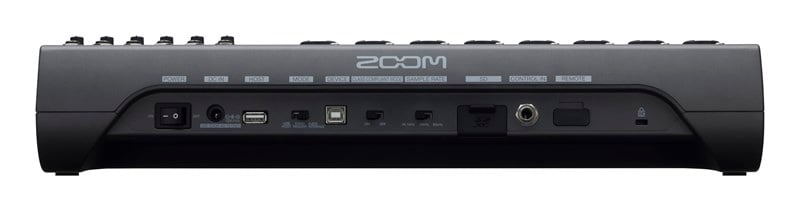

ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser
ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser
ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser
ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser
ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser
ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser

ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser

Marka : Zoom
Fiyat : $2,273.89(KDV Dahil)

20 Inputs for Bigger Sound, 20 Channels, 22 Tracks of Recording



ZOOM LiveTrack L-20 Profesyonel 20 Kanallı Dijital Mikser




Studio Mikser kategorisindeki ZOOM LiveTrack L-20 en uygun fiyat ve taksit seçenekleri ile www.medumuzik.com'dan satın alabilirsiniz.






Kutu İçeriği
The L-20
LiveTrak L-20
AD-19 AC Adapter
USB 2.0 Cable
Quick Guide

Öne Çıkan Özellikleri
20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
22-track simultaneous recording, 20-track playback
22-in/4-out USB audio interface connectivity
Records up to 24bit/96kHz audio to SD card
48V phantom power
Hi-Z connectivity (channels 1-2)
26dB pad (channels 3-16)
Built-in compression control (Channels 1-16)
Solo buttons for individual channels
Variable frequency low-cut control
Main outputs plus 6 customizable monitor outputs
Dedicated headphone output for sound engineer
Scene saving function, up to 9 scenes saved at a time
20 built-in chorus, delay and reverb effects with adjustable parameters
Two effect busses
Built-in slate mic
Class-compliant mode (for iOS compatibility)
Compatible with Remote Mixer app for iPad
Automatic recording starting/stopping capability
Pre-record function
Import/export projects with USB 2.0 host port
Compatible functions for ZOOM FS01 footswitch
Automatic power-save function

Teknik Özellikleri
Type: Digital Mixer with USB Interface
Channels: 20
Inputs - Mic Preamps: 16 x XLR-1/4" combo (mic/line)
Phantom Power: Yes
Inputs - Line: 4 x 1/4" (2 x stereo channels), 2 x Dual RCA Stereo
Inputs - Other: 2 x XLR-1/4" combo (Hi-Z)
Outputs - Main: 2 x XLR (master)
Outputs - Other: 6 x 1/4" (monitor)
Busses/Groups: 2 x FX Buses
Talkback: Built-in Slate Mic
Remote: 1 x 1/4" (footswitch control), 1 x Remote Port (BTA-1 adapter)
USB: 1 x Type A, 1 x Type B
Computer Connectivity: USB (22 x 4)
Headphones: 1 x 1/4" TRS
Faders: 18 x channel faders, 2 efx faders, 1 x master
A/D Resolution: Up to 24-bit/96kHz
EQ Bands: 3-band Mid-parametric EQ
Effects: 20 effect variations ; Reverb, Delay, Chorus
Signal Processing: Compression (16 channels)
Features: 22 recording tracks, 20 playback tracks, 9 scene recall settings
Transport Controls: Yes
Screen: LCD screen
Storage: SDHC/SDXC Card Slot
Software: Remote Mixer App (iPad, BTA-1 bluetooth adapter required)
Rackmountable: Yes (RKL-12 kit sold separately)
Power Source: 12V DC 2A power supply (included)
Height: 8.25 cm
Depth: 38.86 cm
Width: 44.45 cm
Weight:  3.6 kg

Mono Kanal
16
Stereo Kanal
2
USB Bağlantı
Var
