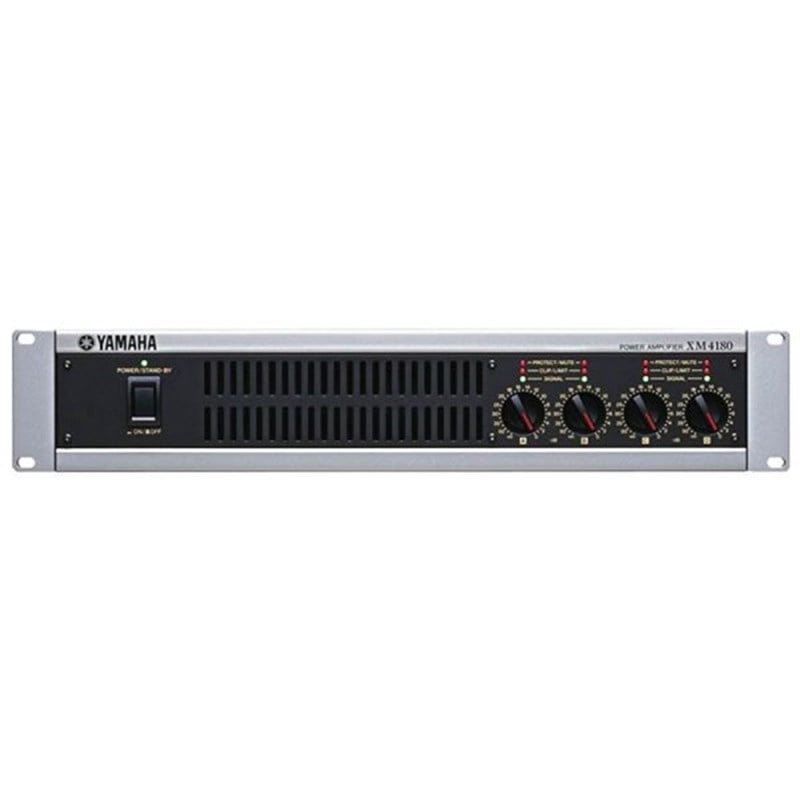

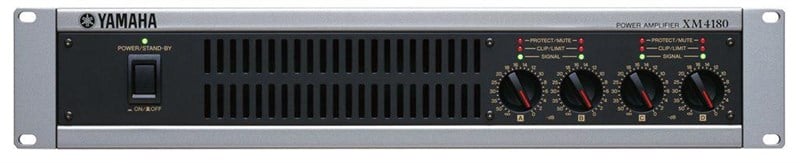

Yamaha XM-4180 - 4x180 watt 8 ohm Power Amplifikatör
Four high-power channels.
Switchable stereo, parallel, or bridged operation.
Versatile connectivity and high-pass filters for a variety of applications.
Distribution drive capability for parallel multi-speakers systems (XM4180).
Monitor/Remote connector for remote monitoring and control.
XM4180
Output power; 1kHz 4ohms; Channel 250Wx4
8ohms; Channel 210Wx4
8ohms; Bridge 500Wx2
Output power; 20Hz-20kHz 4ohms; Channel 230Wx4
8ohms; Channel 180Wx4
8ohms; Bridge 460Wx2
70V Line 300Wx2;
RL=8ohms
Total harmonic distortion Less than 0.1% (20Hz-20kHz; Halfpower)
Intermodulation distortion Less than 0.1% (60Hz:7kHz=4:1; Halfpower)
Frequency response 0, +0, -0.5dB; 20Hz-20kHz
S/N ratio More than 103dB
Residual noise Less than -73dBu
Channel separation Less than -60dB
Damping factor More than 100
Voltage gain 30dB
Input sensitivity +4 dBu
Maximum input voltage +22 dBu
Processors HPF (20Hz/55Hz/OFF, 12dB/Oct)

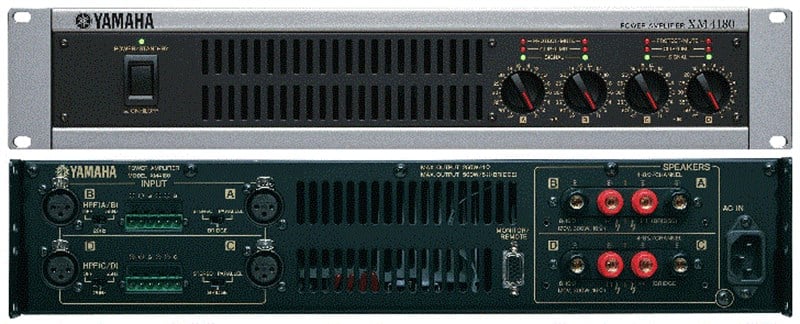

I/O connectors Line input / output ports XLR-3-31 type /ch
Euroblock connector /ch
Speaker output ports 5-way binding post/ch
Control ports D-sub 15pin x1
Protection circuit Load protection POWER switch ON/OFF mute, DC-fault (Output relay off; Restored automatically),
Amplifier protection Thermal (Mute the output; heatsink temp ≥ 90°C; return automatically), VI limiter (Limit the output, RL ≤ 2ohms)
Power supply protection Thermal (Amplifier shuts down automatically; heatsink temp ≥ 90°C)
Amplifier class EEEngine
Cooling Single variable-speed fan
Power requirements AC120V, 230V or 240V 50/60Hz
Power consumption Music source equivalent 600W
Idle 40W
Standby 5W
Dimensions (W x H x D) Width 480mm; 18-7/8"
Height 88mm; 3-7/16"
Depth 412mm; 16-1/4"
Weight 10kg; 22lbs
