Marka : Yamaha
Fiyat : $0.00(KDV Dahil)

(Takım)

Yamaha VXC8W 2 Yollu 8 İnç 8 Ohm 360 Watt Tavan Hoparlörü

1" yumuşak kubbeli tweeter'lı 8" konik woofer

VXC8 / VXC8W
General specifications
Speaker type 2-way, Acoustic suspension
Frequency range (-10dB) 55Hz - 20kHz (Half-space:2π)
Nominal coverage 100° conical (Half-space:2π)


Components

LF 8" Cone
HF 1" Soft dome
LF-HF -
Power rating


NOISE 90W
PGM 180W
PEAK 360W
Nominal impedance
Transformer taps 100V 60W (170Ω), 30W (330Ω), 15W (670Ω)
70V 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
SPL Sensitivity (1W; 1m on axis) 90dB SPL (Half-space:2π)
Peak (Calculated) 116dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)

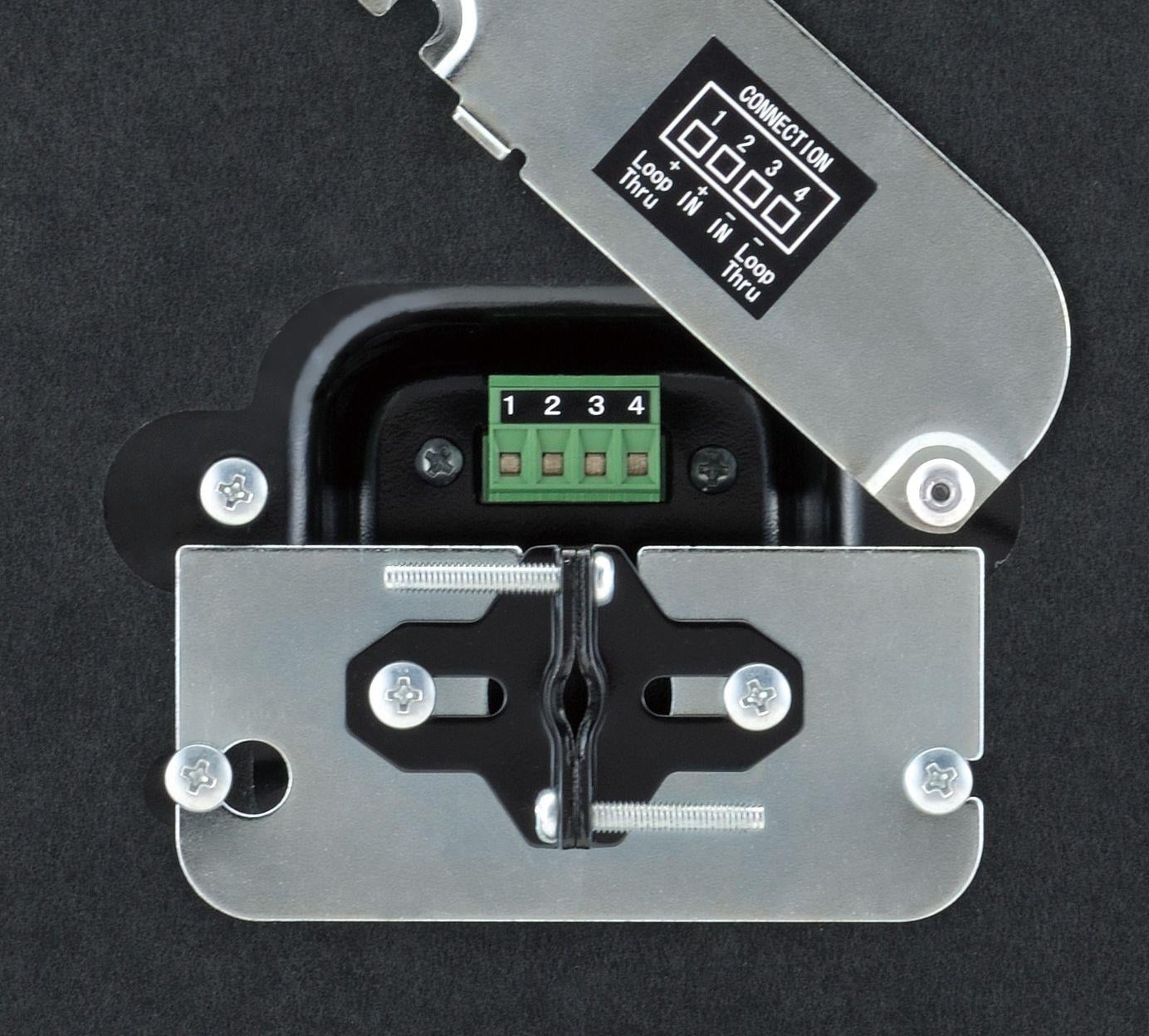

I/O connectors 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
Finish VXC8: Black / VXC8W: White
Waterproof IP32
Dimensions Diameter 325mm (12.8")
D 259mm (10.2")
Net weight 6.6kg (14.6lbs)
Cutout size Ø285 mm (Ø11 1/4")
Required ceiling board thickness 5 mm – 35 mm
Accessories O-ring, Tile Rail, Cutout Template
Packaging Packaged in pairs
Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance -
