Marka : Yamaha
Fiyat : $0.00(KDV Dahil)

(Takım)

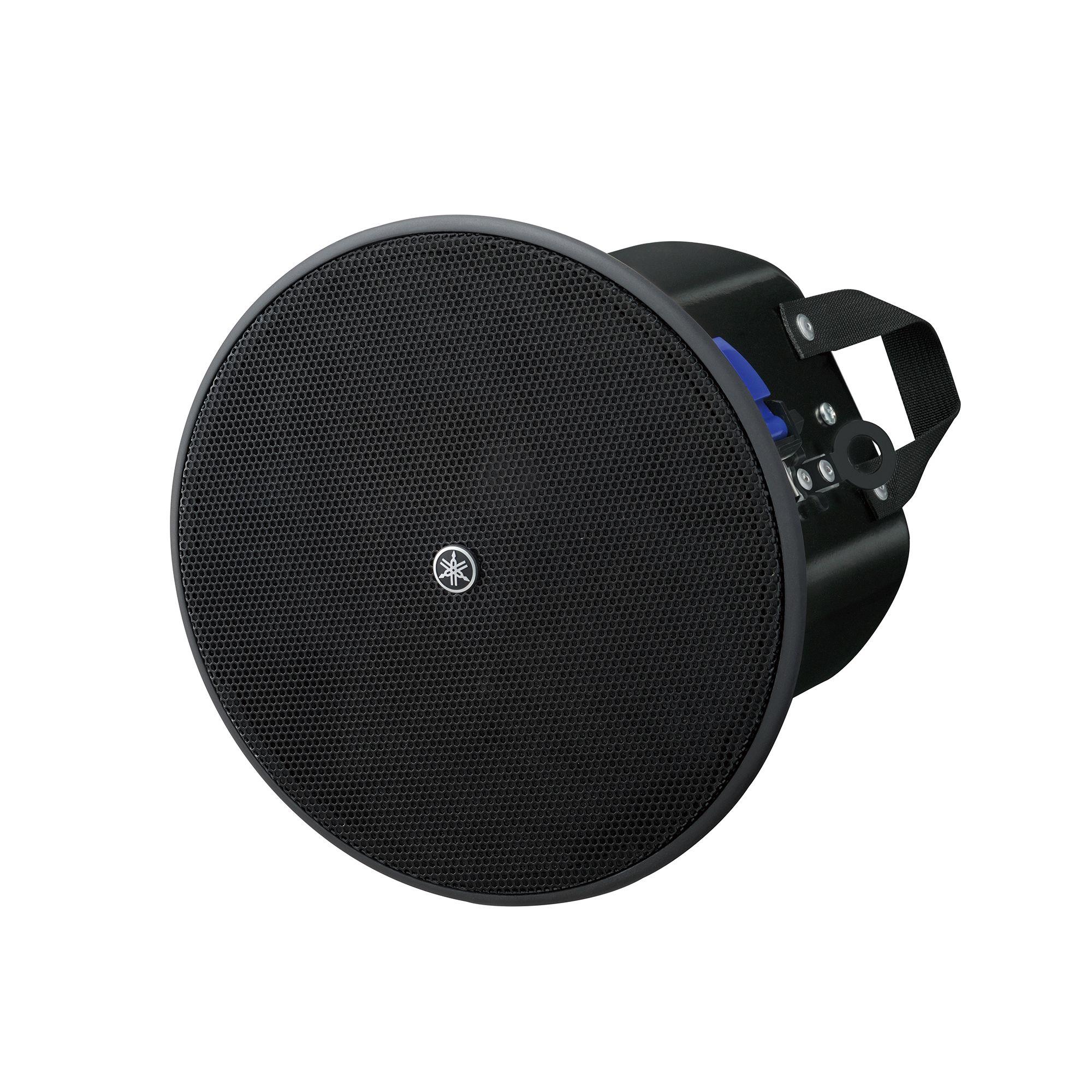

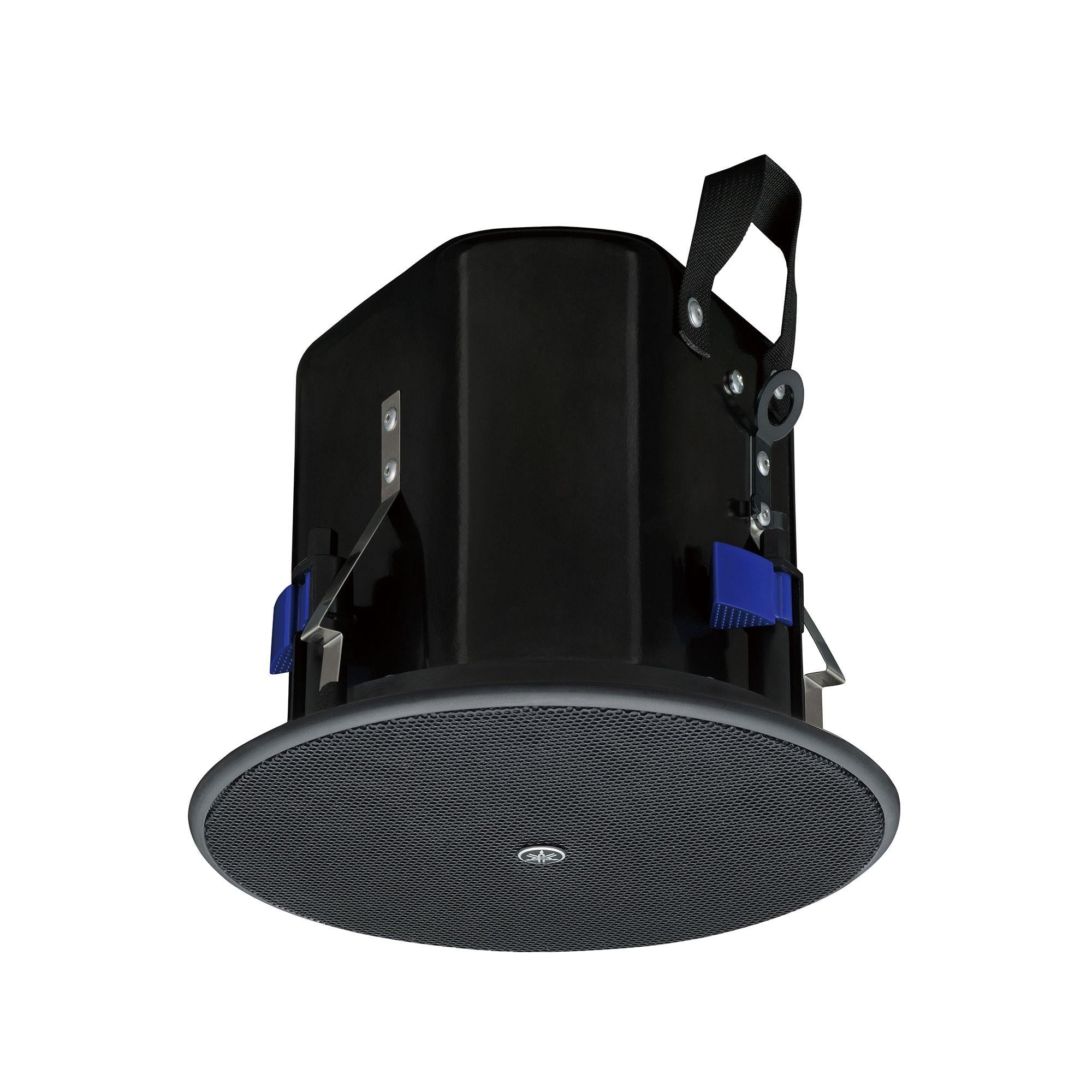

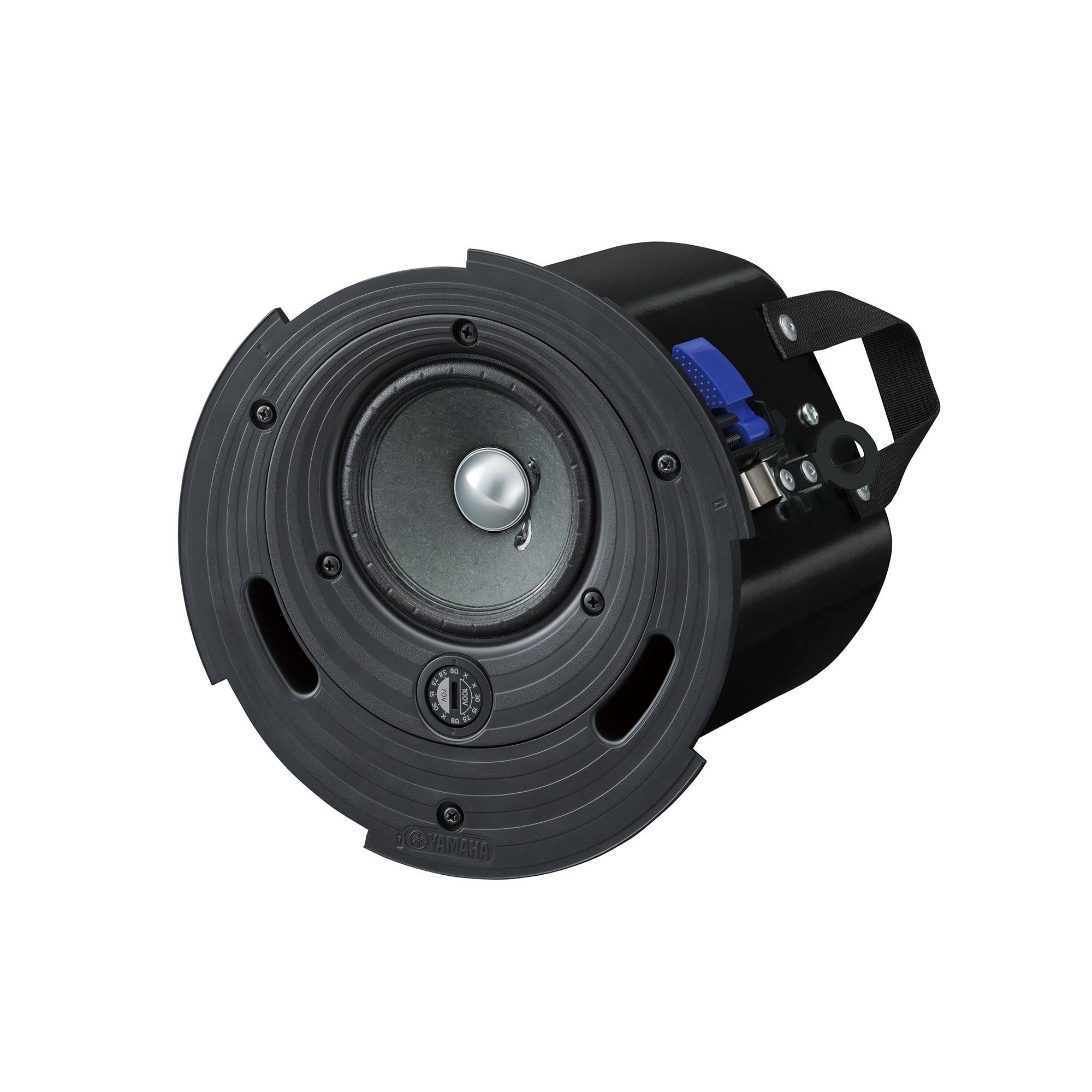

Yamaha VXC6 300 Watt 2 Yollu Tavan Hoparlörü

0,75" yumuşak kubbeli tweeter'lı 6,5" konik woofer

VXC6 / VXC6W
General specifications
Speaker type 2-way, Acoustic suspension
Frequency range (-10dB) 56Hz - 20kHz (Half-space:2π)
Nominal coverage 110° conical (Half-space:2π)


Components

LF 6.5" Cone
HF 0.75" Soft dome
LF-HF -
Power rating


NOISE 75W
PGM 150W
PEAK 300W
Nominal impedance
Transformer taps 100V 60W (170Ω), 30W (330Ω), 15W (670Ω)
70V 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
SPL Sensitivity (1W; 1m on axis) 87dB SPL (Half-space:2π)
Peak (Calculated) 111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)

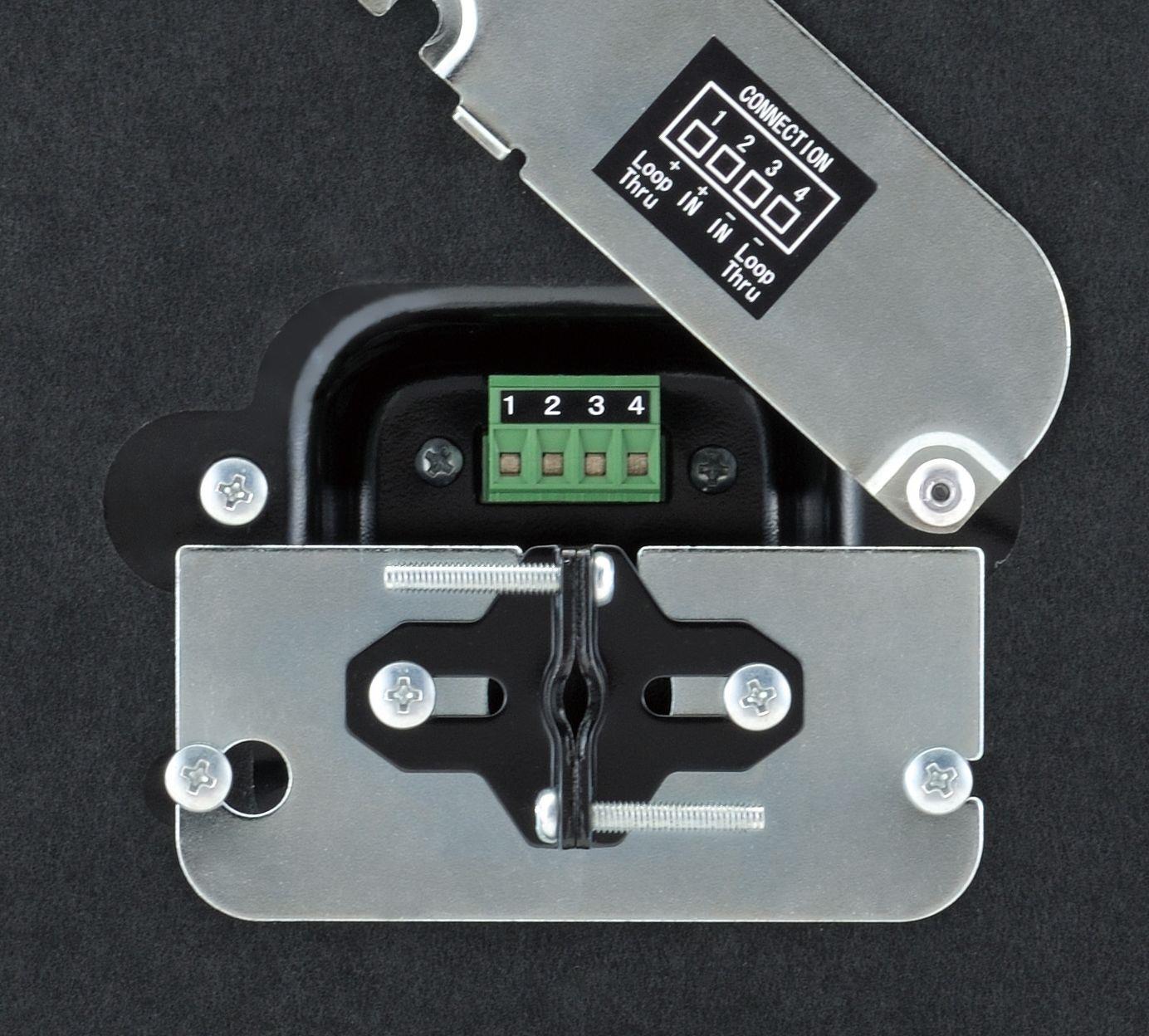

I/O connectors 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
Finish VXC6: Black / VXC6W: White
Waterproof IP32
Dimensions Diameter 286mm (11.3")
D 205mm (8.1")
Net weight 4.4kg (9.7lbs)
Cutout size Ø247 mm (Ø9 3/4")
Required ceiling board thickness 5 mm – 35 mm
Accessories O-ring, Tile Rail, Cutout Template
Packaging Packaged in pairs
Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS
EN54-24 compliance -
