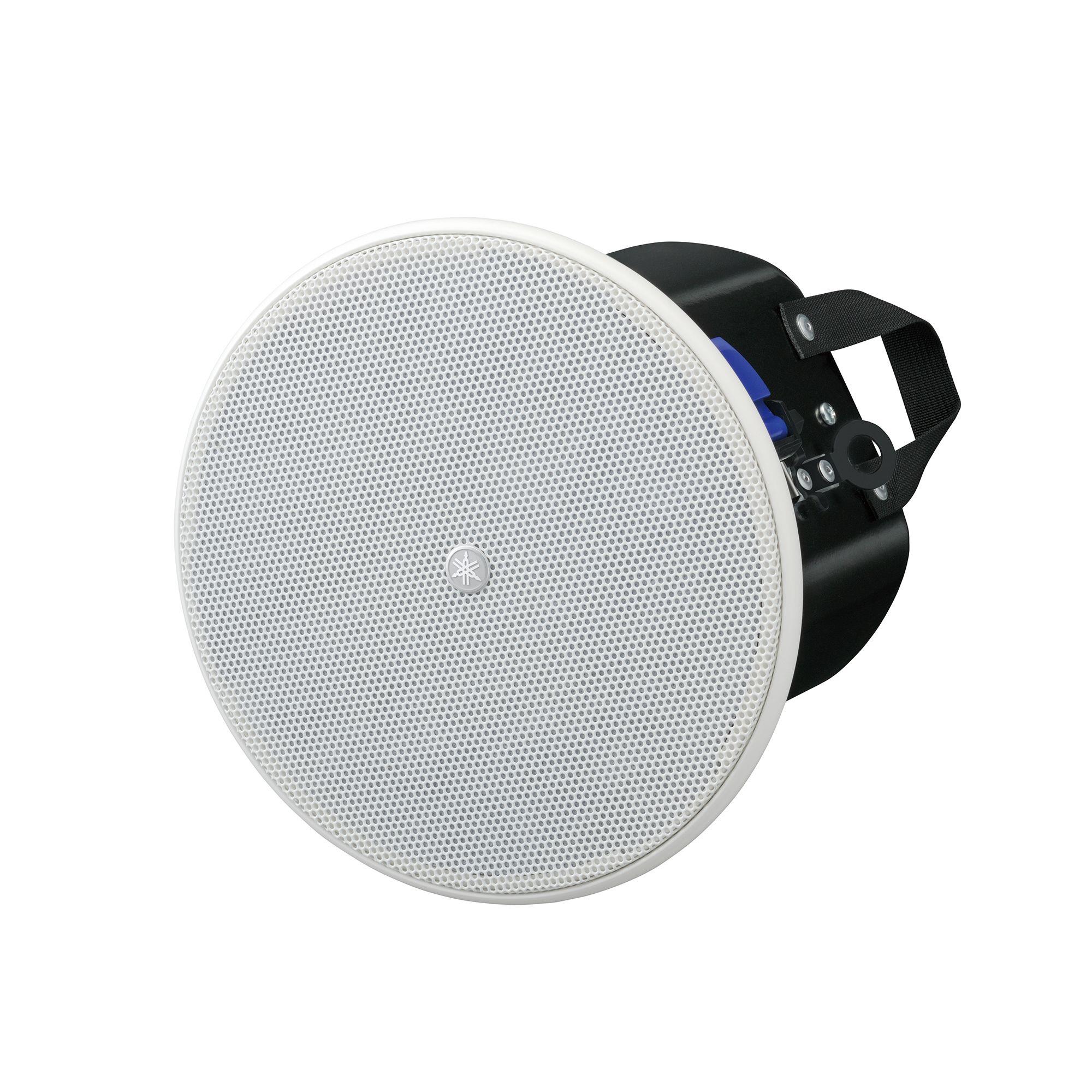

Yamaha VXC4W 2 Yollu 4'' 120 Watt Tavan Hoparlörü
Yamaha VXC4W 2 Yollu 4'' 120 Watt Tavan Hoparlörü
Yamaha VXC4W 2 Yollu 4'' 120 Watt Tavan Hoparlörü
Yamaha VXC4W 2 Yollu 4'' 120 Watt Tavan Hoparlörü
Yamaha VXC4W 2 Yollu 4'' 120 Watt Tavan Hoparlörü

Yamaha VXC4W 2 Yollu 4 İnç 120 Watt Tavan Hoparlörü

Marka : Yamaha
Fiyat : $0.00(KDV Dahil)

(Takım)

Yamaha VXC4W 2 Yollu 4'' 120 Watt Tavan Hoparlörü

4" sürücülü tam aralıklı hoparlör.

VXC4  VXC4W
General specifications
Speaker type Full-range, Bass-reflex
Frequency range (-10dB) 80Hz - 20kHz (Half-space:2π)
Nominal coverage 130° conical (Half-space:2π)


Components

LF -
HF -
LF-HF 4" full-range
Power rating


NOISE 30W
PGM 60W
PEAK 120W
Nominal impedance
Transformer taps 100V 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ)
70V 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ)
SPL Sensitivity (1W; 1m on axis) 87dB SPL (Half-space:2π)
Peak (Calculated) 108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
I/O connectors 1x Ceramic terminal block (3P) (input: +/-, Earth)
Finish VXC4-VA: Black / VXC4-VAW: White
Waterproof IP32
Dimensions Diameter 225mm (8.9")
D 232mm (9.1")
Net weight 2.6kg (5.7lbs)
Cutout size Ø186 mm (Ø7-5/16")
Required ceiling board thickness 5 mm – 35 mm
Accessories O-ring, Tile Rail, Cutout Template
Packaging Packaged in pairs
Certificate CE, RoHS
EN54-24 compliance Yes (DoP No. 0359-CPR-00405)
