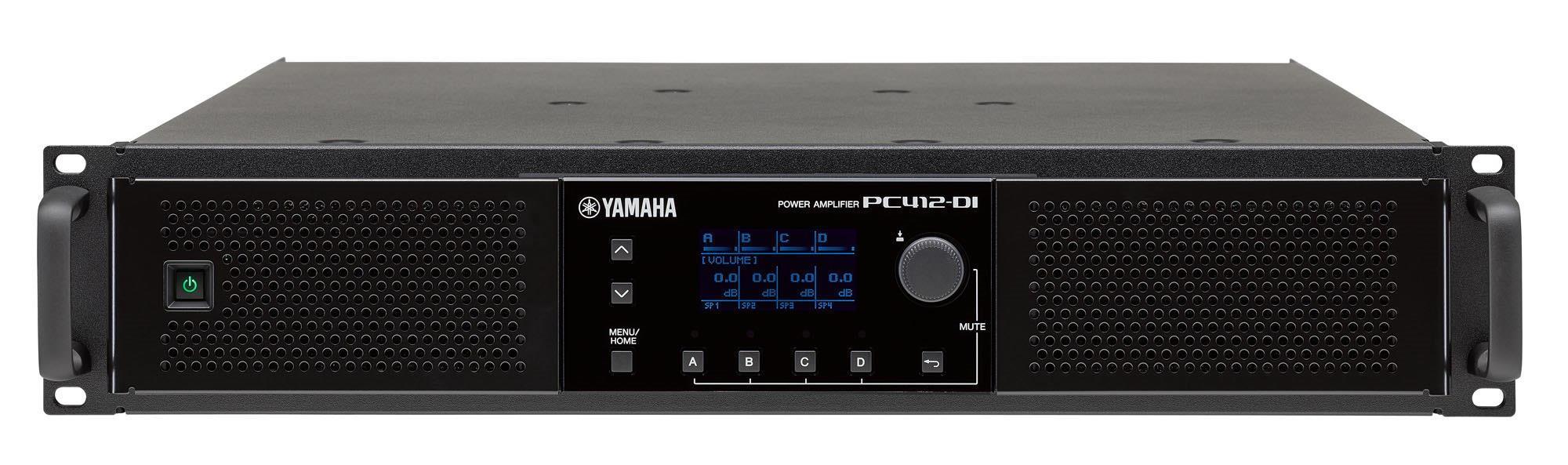

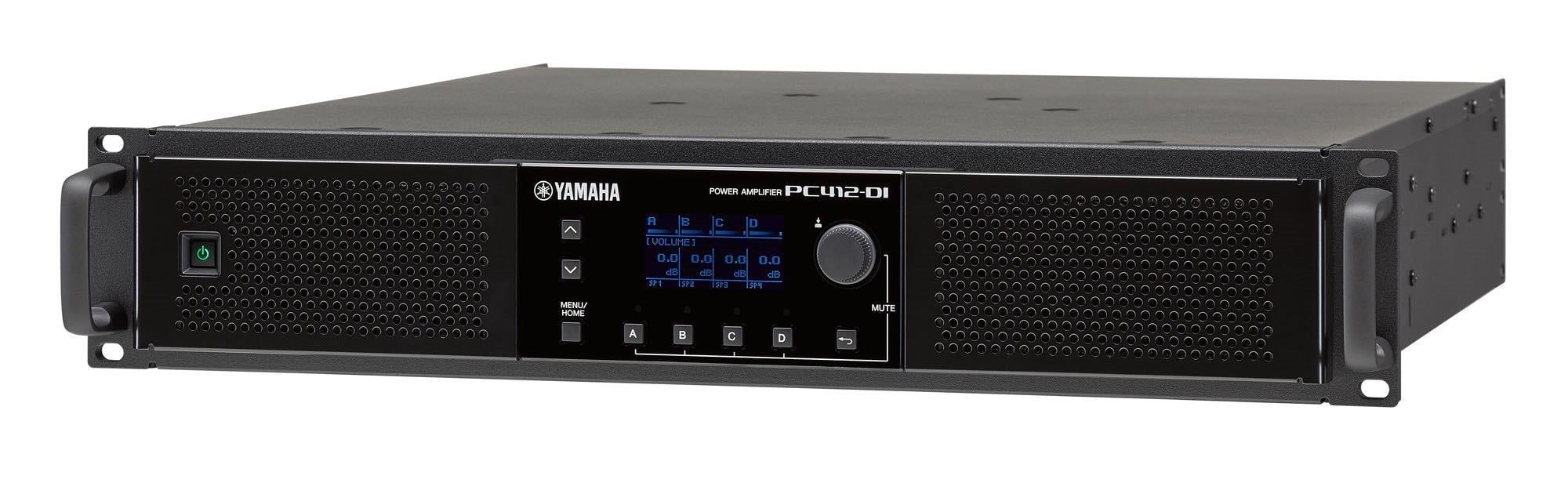

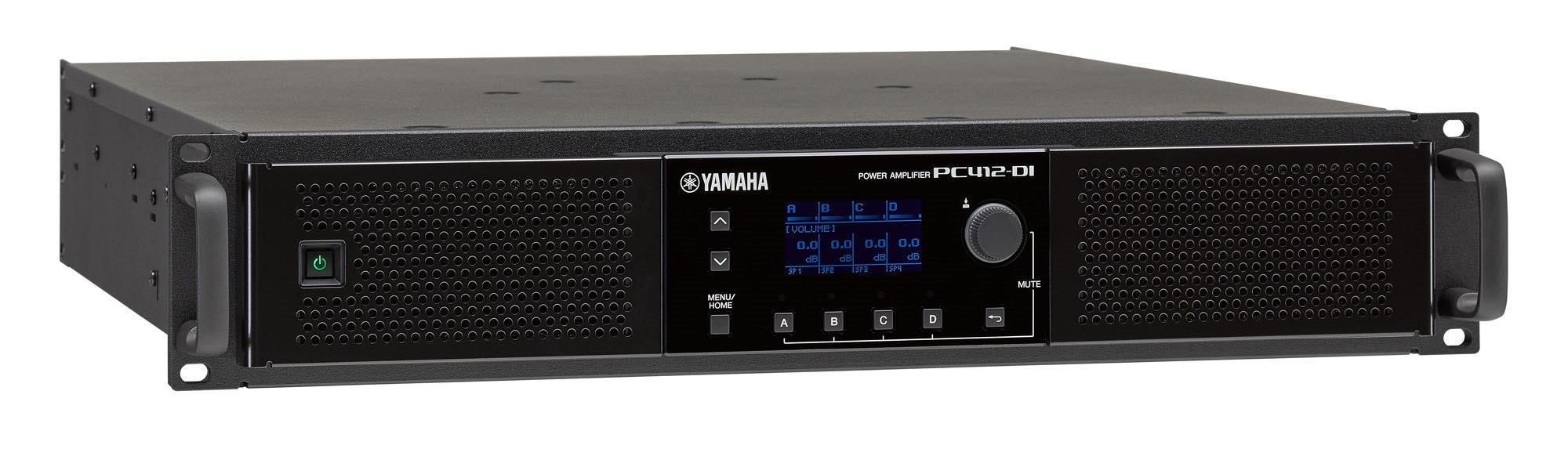

| PC412-DI |
| General specifications |
| Output Power; 1kHz, Non-clip, 20msec Burst, All channels driven |
16Ω |
600W x 4 |
| 8Ω |
1200W x 4 |
| 4Ω |
1900W x 4 |
| 2Ω |
2500W x 4 |
| 8Ω (BRIDGE mode) |
3800W x 2 |
| 4Ω (BRIDGE mode) |
5000W x 2 |
| Hi-Z (70V mode) |
1200W x 4 |
| Hi-Z (100V mode) |
1200W x 4 |
| Amplifier class |
Class D, Single ended output |
| Total harmonic distortion |
0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven), 0.01% (100V/70V, 1kHz, 10W, All channels driven), 0.1% (100V/70V, 1kHz, Half power, All channels driven) |
| Frequency response |
+0.5, -1.5dB @8Ω, 1W, 20Hz to 20kHz (HPF Thru) |
| Crosstalk |
≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted) |
| S/N ratio |
112dB (8Ω, Gain setting = 32dB, A-weighted) |
| Voltage Gain/Sensitivity |
8Ω Volume max |
32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu) |
| Hi-Z 100V mode, Volume max |
32.0dB/+10.2dBu (Gain setting: 32dB), 26.0dB/+16.2dBu (Gain setting: 26dB), 38.2dB/+4.0dBu (Gain setting: +4dBu), 28.2dB/+14.0dBu (Gain setting: +14.0dBu) |
| Hi-Z 70V mode, Volume max |
32.0dB/+7.2dBu (Gain setting: 32dB), 26.0dB/+13.2dBu (Gain setting: 26dB), 35.2dB/+4.0dBu (Gain setting: +4dBu), 25.2dB/+14.0dBu (Gain setting: +14.0dBu) |
| Protection circuit |
Load protection |
POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically) |
| Amplifier protection |
Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically) |
| Power supply protection |
Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown |
| Cooling |
7 step variable speed fan x 3, front to rear airflow |
| Maximum input voltage |
28dBu |
| Input impedance |
20kΩ (balanced) |
| Sampling frequency rate |
96kHz |
| A/D D/A Converters |
AD: 24-bit linear; DA: 24-bit linear |
| Dante Interface |
Channel count |
16 IN with Dante Redundancy, 16 OUT |
| Sampling frequency |
96/88.2/48/44.1kHz |
| Dante latency |
0.25/0.5/1/2/5ms |
| Bit depth |
32/24bit |
| Processors |
20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter |
| Latency |
Analog Input to Speakers: 1.5msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.8msec (fs=96kHz), 1.9msec (fs=88.2kHz), 2.5msec (fs=48kHz), 2.7msec (fs=44.1kHz) |

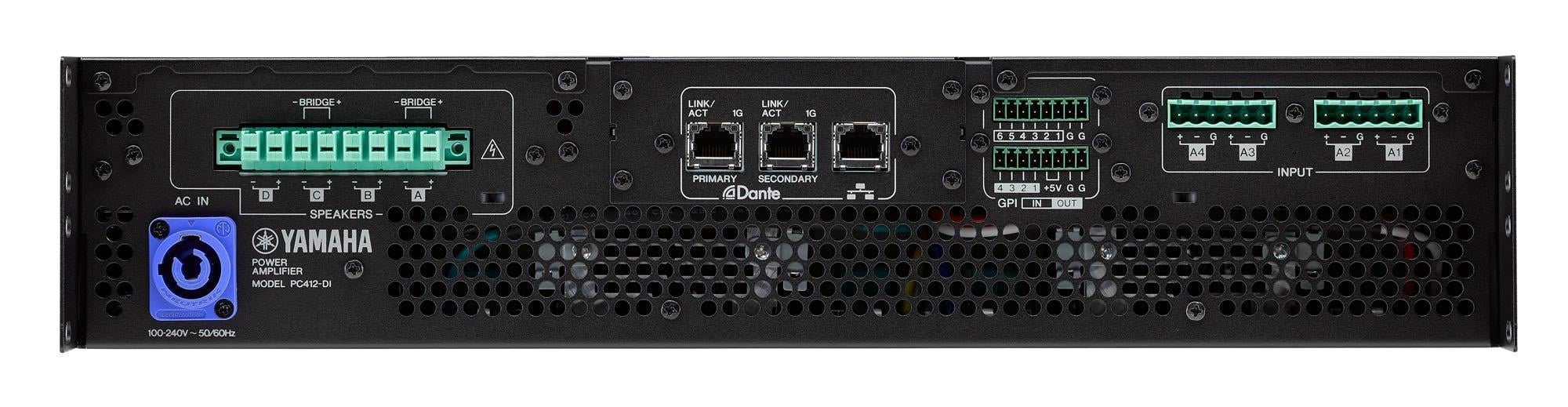

| I/O Connectors |
Analog Input |
Euro block 6pin x 2 (4ch balanced input) |
| Digital I/O |
Dante Interface: RJ45 x 2 (Redundant/Daisy Chain) |
| Speaker Output |
7.62mm Euro block 8pin x 1 |
| Control ports |
RJ45 x 1 |
| AC |
AC inlet (powerCON 20A) x 1 |
| Others |
Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2) |
| Indicators |
Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED) |
| Power requirements |
100V - 240V 50Hz/60Hz ** |
| Power consumption |
1850W (1/8 MAX power, 2Ω, Pink noise at all channels), 190W (Idle), 105W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V) |
| Operating temperature |
0°C to +40°C |
| Storage temperature |
-20°C to +60°C |
| Dimensions |
W |
480mm (18.90 inch) |
| H |
88mm (3.46 inch): 2U |
| D |
528mm (20.79 inch) |
| Net weight |
16.0 kg (35.3 lbs) |
| Accessories |
Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euroblock plug 3.5mm 8p x 2, Audio Input Euroblock plug 5.08mm 3p x 4, Cable tie x 4, Speaker Euroblock plug 7.62mm 8p x 1, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4 |
