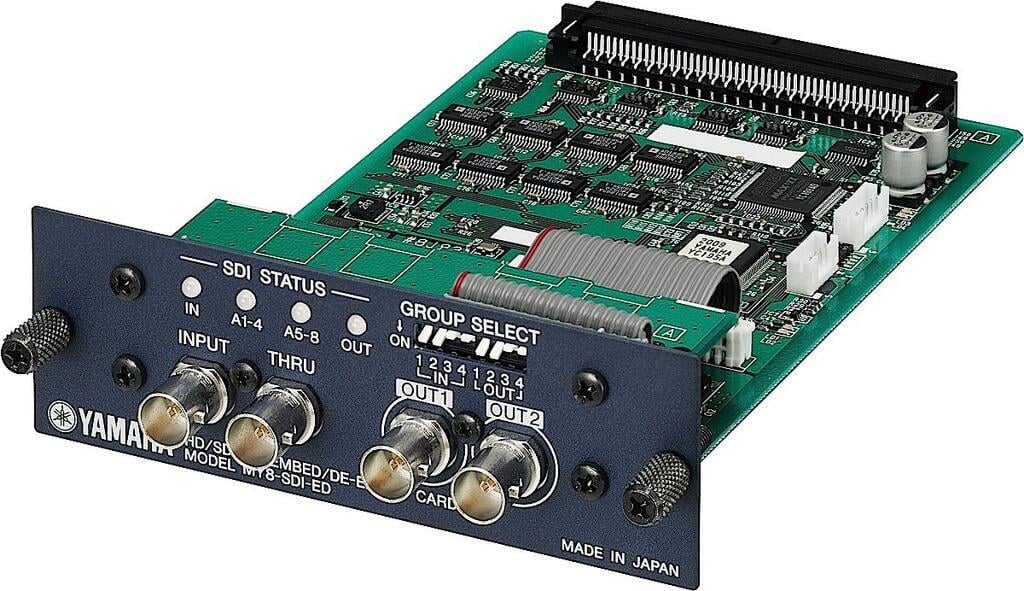

Yamaha MY8-SDI-ED 8 Kanal HD-SDI/SD-SDI Arayüz Kart
Yamaha MY8-SDI-ED 8 Kanal HD-SDI/SD-SDI Arayüz Kart
Yamaha MY8-SDI-ED 8 Kanal HD-SDI/SD-SDI Arayüz Kart

Yamaha MY8-SDI-ED 8 Kanal HD-SDI/SD-SDI Arayüz Kart

Marka : Yamaha
Fiyat : $0.00(KDV Dahil)
MY8-SDI-ED
Overview
The MY8-SDI-ED is an HD-/SD-SDI Embed/De-embed card for
compatible Yamaha digital mixing consoles and signal processors.
Features
• 4 x BNC connectors: 1 x HD-/SD-SDI input, 2 x HD-/SD-SDI output (same signal), 1 x HD-/SD-SDI thru output (relocked)
• Can de-embed up to two of the 4 audio groups (4 channels per group: total 8 channels) embedded in a HD-SDI signal
• Can embed 2 audio groups into an HD-/SD-SDI signal for output
• LED audio status display
• Dimensions: 120mm x 40mm x 176mm (4.7" x 1.6" x 6.9")
Specifications
HD-SDI/SD-SDI I/O Characteristics
HD-SDI I/O Signal SMPTE 292M (1.485Gbps, 1.485/1.001Gbps)
SD-SDI I/O Signal SMPTE 259M-C (270Mbps)
Resolution  24bit
Frequency 48kHz
Impedance 75Ω
Connector  Input: 1 x BNC
Output: 2 x BNC (same signal)
Lines Selected 2 audio groups of 4 channels; total 8 channels
HD-SDI/SD-SDI Thru Output Characteristics
SDI Output Signal Reclocked thru output
Impedance 75Ω
Connector  1 x BNC
