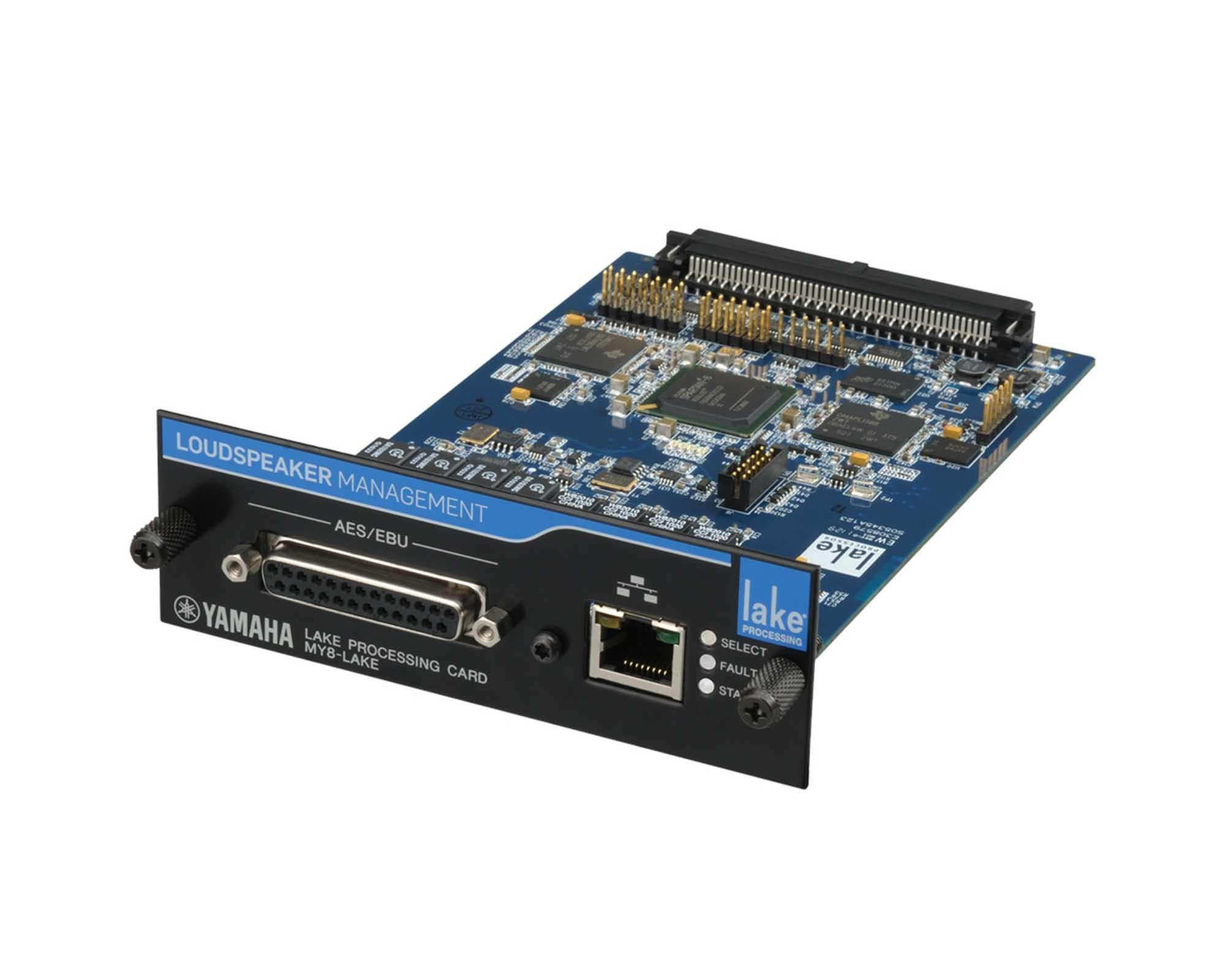

Yamaha MY8-LAKE I/O Yapılandırılabilir Lake İşleme Kartı
Yamaha MY8-LAKE I/O Yapılandırılabilir Lake İşleme Kartı

Yamaha MY8-LAKE I/O Yapılandırılabilir Lake İşleme Kartı

Marka : Yamaha
Fiyat : $0.00(KDV Dahil)
MY8-LAKE
Overview
8-in/8-out Mesa mode (system EQ), 4-in/12-out Contour mode (crossover), or a combination of both for versatile processing.
•96 kHz internal processing, supporting 44.1 kHz, 48 kHz, and 88.2 kHz sample rates.
•Compatible with Smaart sound system measurement software for efficient, effective speaker tuning.
•Flexible system setup via Yamaha digital mixer insert points and MY8-LAKE card AES/EBU connectors.
•Lake Controller software application allows comprehensive overall management of all Lake devices in the system.
•Over 1,000 speaker presets included for fast, accurate tuning with a wide range of systems.
General Specifications
Sampling Frequency Mini-YGDAI I/F
AES/EBU Input/Output
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Internal Operating Frequency 96 kHz
Signal Delay Best case (synchronous 96 kHz to synchronous 96 kHz) from AES input to AES output via module (Contour or Mesa) 0.7185 ms
Power Requirements maximum 3W
Temperature range Operating 0 to 40 °C (32 to 104 °F)
Storage -20 to 60 °C (-4 to 140 °F)
