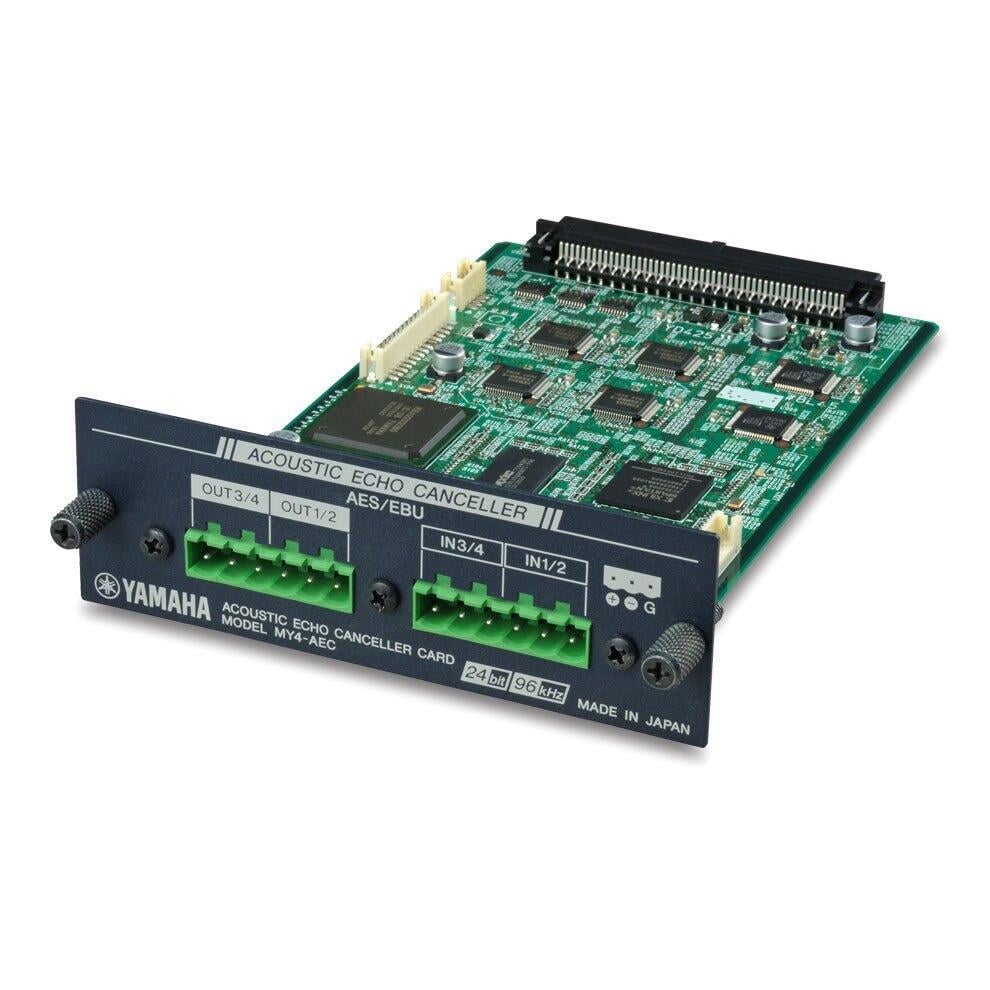

Yamaha MY4-AEC 4 Kanal Akustik Yankı Engelleyici Arayüz Kartı
Yamaha MY4-AEC 4 Kanal Akustik Yankı Engelleyici Arayüz Kartı

Yamaha MY4-AEC 4 Kanal Akustik Yankı Engelleyici Arayüz Kartı

Marka : Yamaha
İndirim Oranı : %60 İndirim
Fiyat : $7,853.33(KDV Dahil)
İndirimli : $3,141.33(KDV Dahil)

Yamaha MY4-AEC 4 Kanal Akustik Yankı Engelleyici Arayüz Kartı

MY4-AEC
Overview
4-Channel Acoustic Echo Canceller Card for Yamaha DME64N/24N/MTX5-D/MRX7-D
24bit resolution, 4-in/4-out adaptive echo canceller
4x Euroblock connectors
HD sound quality
4ch feedback suppressor and noise reduction
Additional 4ch AES/EBU I/O with sampling rate converter
Easy operation with DME Designer and MTX-MRX Editor
General Specifications
Compatible Hosts DME24N, DME64N: V4.0 or later software is required
MTX5-D: V1.2 or later software is required.
Sampling Frequency DME24N, DME64N: 44.1kHz, 48kHz, 88.2kHz, 96kHz (-10%, +6%)
MTX5-D: 44.1kHz, 48kHz (-10%, +6%)
Digital Input/Output Characteristics
Terminal Format Audio Data Length Level Connector
AES/EBU In 1/2, 3/4 AES/EBU 24bit RS422 Euroblock
AES/EBU Out 1/2, 3/4 AES/EBU * 24bit RS422 Euroblock
Audio
Signal Processing Adaptive Echo Canceller, Feedback Suppressor
Noise Reduction, Matrix Mixer
Frequency Range 20Hz to 20kHz
Arrival Time of Direct Sound 120ms maximum
Echo Time Delay 400ms maximum
Noise Reduction 17dB maximum
Echo Cancelling Capacity 60dB maximum
