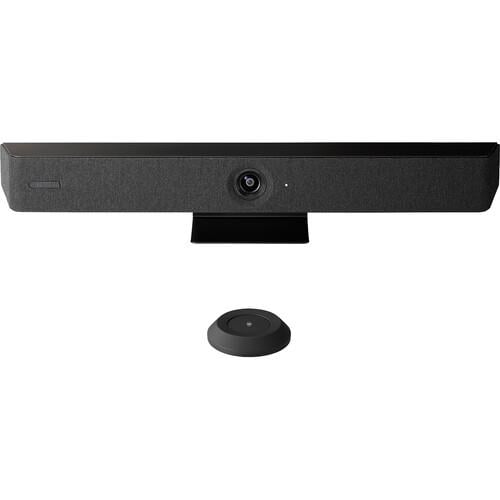

| CS-800 |
| General |
| Dimensions |
W 620 mm × D 90 mm × H 70 mm |
| Weight |
1.7 kg |
| Power Requirements |
AC 100 - 240 V (50/60 Hz) |
| Maximum Power Consumption |
42.0 W |
| In Operation |
Temperature |
0 ℃ – 40 ℃ |
| Humidity |
20 % – 85 % (No condensation) |
| Storage |
Temperature |
-20 ℃ – 60 ℃ |
| Humidity |
20 % – 85 % (No condensation) |
| Indicator |
Status Indicator |
| Accessories |
Read this first, Safety Guide, Quick Guide, USB 2.0 cable (Type C-A, 5 m / 16.4 ft), HDMI cable (2 m / 6.6 ft), Remote control (RC-RBT1), Lens cap, Terminal cover, Coin battery (CR2032) × 2, AC adaptor with power cord (CW2002100), Table stand, Wall mounting bracket, Terminal cover screw (2.5 mm × 8 mm) × 2, Hexagonal screw (M3 × 8 mm) for table stand × 2, Screw (M3 × 8 mm) for wall mounting bracket × 1, Hexagonal wrench |
| Options |
Mounting Accessory BRK-WL1, Mounting Accessory BRK-TV1/BRK-TV2, USB 3.2 Gen 1 cable (A-C) 10 m CBL-L10AC, USB 3.2 Gen 1 cable (A-C) 25 m CBL-L25AC |
| Supported OS |
Windows 11, Windows 10, macOS 12, macOS 11, macOS 10.15, Chrome OS |
| Interface |
USB (Type-C): USB 2.0/3.2 Gen 1, UAC 2.0, UVC 1.1, DisplayLink, HDMI: Version 1.4, Resolution: 720 x 480, 1,280 x 720, 1,366 x 768, 1,920 x 1,080, Frame rate: 30 fps, HDCP: Version 1.4, HDMI-CEC: Power control / Input selection, Bluetooth, Wi-Fi network |
| Installation |
Tabletop installation: Table stand (accessory), Wall mount installation: Wall mounting bracket (accessory), Display mount installation: BRK-TV1/BRK-TV2 (option) |
| Audio |
| Speakers |
Full-range speaker x 1 |
| Maximum volume |
90 dBSPL (1 m) |
| Microphones |
Hexa-microphone (6x MEMS) |
| Microphone Coverage |
Frontward 110 degrees audio pickup, Max distance: 6.0 m (19.6 ft, Face focus beamforming off) / 3.0 m (9.8 ft, Face focus beamforming on) |
| Frequency bandwidth |
Speaker frequency response 100 Hz – 20 kHz, Microphone frequency response 100Hz – 16kHz |
| Signal processing |
Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, SoundCap Eye (Face focus beamforming, Self-silence, Self volume balancer) |
| Camera and Video |
| Field of View |
(4K) Diagonal:120 degrees, Horizontal: 110 degrees |
| Focus Distance |
0.5 m (1.6 ft) to ∞ |
| Frame Rate |
6 fps, 7.5 fps, 10 fps, 15 fps, 30 fps |
| Resolution |
3,840 x 2,160, 2,560 x 1,440, 1,920 x 1,080, 1,280 x 720, 640 x 360 *When using 3,840 x 2,160, 2,560 x 1,440 resolution, optional cables (CBL-L10AC or CBL-L25AC) that is USB 3.0 or greater is needed. |
| USB Output Format |
YUY2, MJPEG, NV12 |
| Frame Control |
Smart framing (Group, Individual, Speaker tracking) or manual, pan-tilt-zoom (PTZ), configurable preset x 2, Maximum zoom ratio: 5.0x, People detection max distance: 4.5 m |
| User Interface |
| Remote Control |
Power, Microphone mute x 2, Speaker volume, Camera ePTZ, Smart framing ON/OFF, Camera preset x 2, OSD menu control |
| OSD Menu |
Meeting area, Smart framing mode, Camera preset, Mic, Speaker, Bluetooth |
| Yamaha CS Manager |
Supported OS |
Windows 11, Windows10 (64 bit), macOS 12, macOS 11, macOS 10.15 |
| Functions |
Device status monitor, Security setting, Power setting, Audio setting, Camera setting, Smart framing setting, Bluetooth setting, HDMI screen setting, Network(Wi-Fi) setting, NTP setting, Firmware upgrading, Factory default setting, Logs retrieving |
