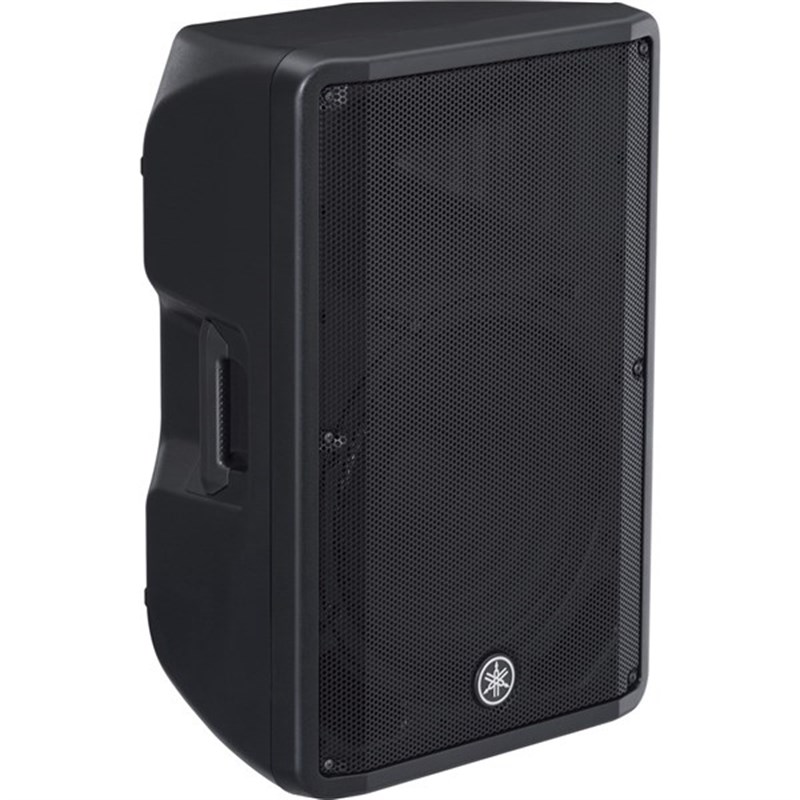

Yamaha CBR 15 15'' 500/1000W Pasif Kabin Hoparlör
Expect rich, clear sound and reliable performance from the Yamaha CBR15 passive loudspeaker.
With a respectable 500-watts of RMS power handling, and 96dB SPL sensitivity,
these loudspeakers boast impressive performance for their compact, portable nature.
We especially appreciate the CBR15's HF-protection circuit, which prevents speaker damage from excessive input.
We also dig the smart form factor, which lets you use the CBR15 as either a mains speaker or on its side as a floor monitor.
However you use it, expect stellar sound and performance you can trust with the Yamaha CBR15 passive loudspeaker.
Yamaha CBR15 15" Passive Loudspeaker at a Glance:
Ideal for small- to mid-size venues
Great sound at any volume level
Use as a main speaker or as a floor monitor
Ideal for small- to mid-size venues
With 500-watts of RMS power handling and lightweight components,
the Yamaha CBR15 is perfect for small- to mid-size venues.
Whether you're in a band, a gigging DJ, or run a sound-for-hire rig,
the CBR15 will serve you well in a variety of applications.
Great sound at any volume level
The Yamaha CBR15 puts out full, punchy sound at any volume level thanks to two specific components.
An extremely sensitive LF driver puts out powerful bass even when you're not driving the speaker hard.
And when you do want to push your system to the max,
an HF-protection circuit prevents excessive input signals from damaging the tweeter,
so you get clear sound throughout the entire volume range.
Use as a main speaker or as a floor monitor
Yamaha designed the CBR15's cabinet with a 50-degree wedge angle.
This allows you to place the speaker on its side and angle it up for use as a stage monitor.
Especially if you're equipping your school or church with PA gear,
you'll appreciate the dual-function versatility of the Yamaha CBR15.
Yamaha CBR15 15" Passive Loudspeaker Features:
Passive loudspeaker with lightweight plastic cabinet
Impressive 500W RMS power handling
1/4" and speakON inputs for flexible connectivity
HF-protection circuit prevents tweeter damage due to excessive signal levels
Highly-sensitive LF driver puts out full bass even at lower volumes
Tech Specs:
Powered No
LF Driver Size 1 x 15"
HF Driver Size 1.4"
Power Rating (Program) 500W
Peak Power Capacity 1000W
Impedance 8 ohms
Inputs 1 x 1/4", 1 x speakON
Frequency Range 46Hz-20kHz (-10 dB)
Crossover Frequency 2kHz
Maximum Peak SPL 126dB
Horizontal Coverage Angle 90 Degrees
Vertical Coverage Angle 60 Degrees
Enclosure Material Plastic
Mounting Options Pole, Fly
Height 27.6"
Width 17.9"
Depth 14.9"
Weight 39 lbs.
