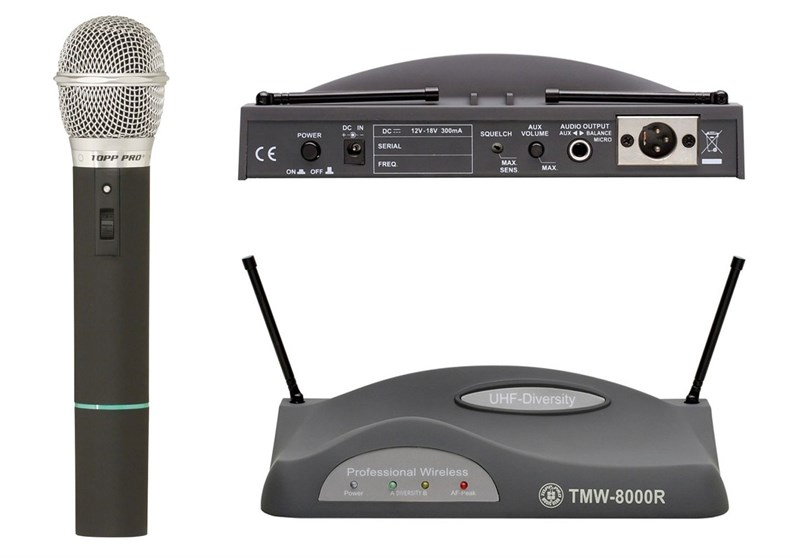

Topp Pro TMW-8000M Kablosuz El Mikrofon Seti
Set İçeriği: TMW 8000R Receiver + TMW 8000T El Mikrofonu
Receiver (Rx): TMW8000R
Reception Mode: Diversity
Carrier Frequency: UHF 470 MHz to 662 MHz
Stability: ± 0.005% / 25º C
Modulation: FM (F3E)
Max. Deviation: ±40 / 55KHz
T.H.D. Distortion: < 0.6%
Dynamic Range: > 110 dBm
S/R Ratio: >100 @ ±15KHz deviation
Frequency Response: 50Hz – 15KHz ±3dB
Oscillation Mode: Quartz controlled fixed frequency
Sensitivity: 3µ for 20dB
Squelch: Tone Key (Tone frequency 32.768 KHz) / External Control (-85 dBm / -100 dBm)
Audio Output: 1, Unbalanced 0-500mV, 10kO Load / 2, XLR- Balanced 55mV
Power Supply: 12VDC/300mA with AC/DC Adaptor
Handheld Microphone (Tx): TMW8000T
Microphone Element: Dynamic
Oscillation Mode: Quartz controlled fixed frequency
Modulation: FM (F3E)
Carrier Frequency: UHF 780 - 960 MHz
Stability: ± 0.005% / 25º C
Max. Deviation: 40 KHz
Tone Frequency: 32.768 KHz
Pre-emphasis: 50µS
Output Power: 10mW
Frequency Response: 50Hz - 15 KHz
Battery: 1 x 006P (9V Alkaline)
Current Drain: < 35mA
Battery Life: > 8 Hours
