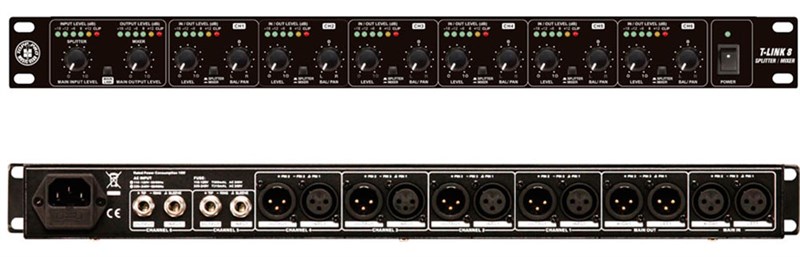

Topp Pro T-LINK8 - 8 Kanal Splitter Mikser
Model T-LINK 8 MIXER / SPLITTER PROCESSOR
AUDIO INPUTS Connectors: XLR and 1/4" TRS
Type: RF filtered, servo-balanced input
Impedance: 50 kOhms balanced, 25 kOhms unbalanced
Nominal operating level: -10 dBV to +4 dBu
Max. input level: +21 dBu balanced and unbalanced
CMRR: Typ. 40 dB, > 55 dB @ 1 kHz
AUDIO OUTPUTS Connectors: XLR and 1/4" TRS
Type: Electronically servo-balanced output stage
Impedance: 60 Ohms balanced, 30 Ohms unbalanced
Max. output level: +22 dBu balanced and unbalanced
SYSTEM SPECIFICATIONS Frequency response: 5 Hz to 200 kHz, +/- 3 dBu
S/N ratio: >95 dBu, unweighted, 22 Hz to 22 kHz
THD: = 0.002 % typ. @ +4 dBu, 1kHz, gain 1
FUNCTION CONTROLS Main input level: variable
Main output level: variable
Level: variable for each channel
Balance/pan: placing in the stereo field
FUNCTION SWITCHES Main Link: links the main input signal to the main output
Split/mix: changeover from split to mix mode for each channel
INDICATORS Input level (main): 6-digit LED display: -18/-12/-6/0/+12/Clip
Output level (main): 6-digit LED display: -18/-12/-6/0/+12/Clip
Input/output level: 6-digit LED display: -18/-12/-6/0/+12/Clip
POWER SUPPLY Mains Voltages
PHYSICAL Dimensions (H*W*D): 483(W) 195(D) 44(H)mm (19" 7.54" 1.7")
Net Weight: 2.6 kg(5.73lb)
Shipping Weight: 3.5 kg
