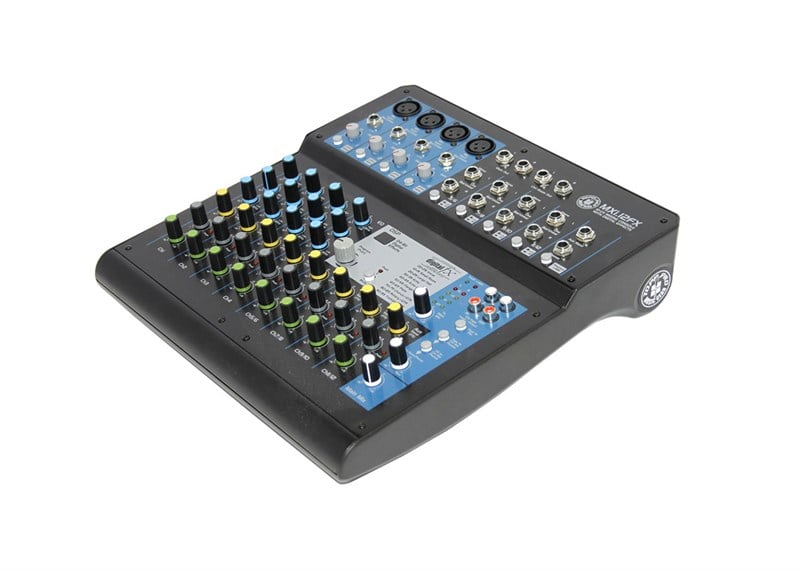

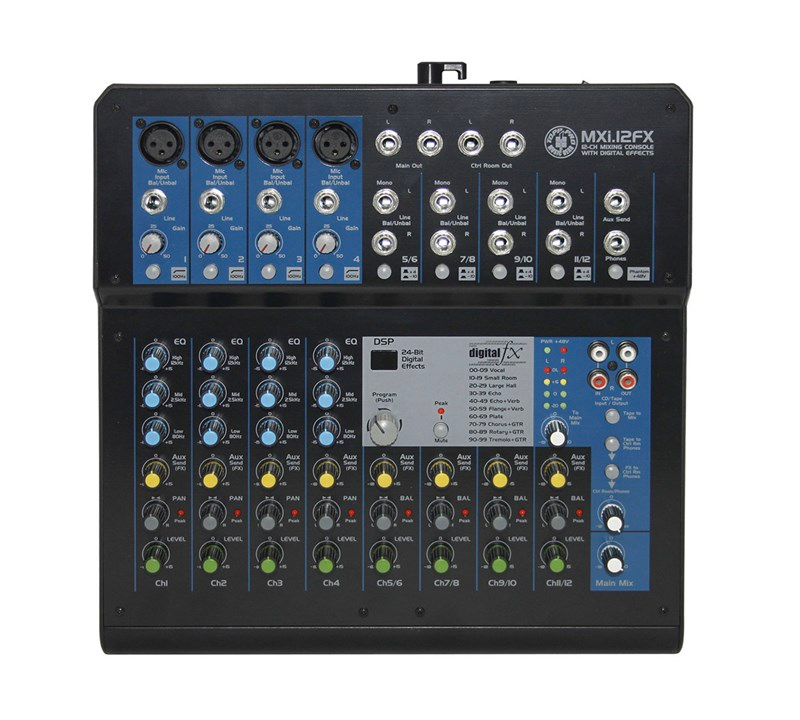

Frequency Response:
Mic Input to any Output
(Gain @ 0 dB, Rated output level): 20 Hz to 50 kHz(0, -1dB)
20 Hz to 130 kHz(0, -3dB)
Distortion (THD&N):
Mic Input to MAIN Output(Gain @ 0 dB,
Rated output level @ 20 Hz-20 kHz bandwidth): 0.003%(A-weighted)
MIC EIN (Equivalent Input Noise):
Input: Channel INPUT MIC
(Rs = 150 Ohm ,Gain @ Max.,20 Hz-20 kHz bandwidth): 119dBu (A-weighted)
Input Gain Control Range (20 Hz-20 kHz bandwidth):
Mono Channel: MIC: 0 to 48dB, LINE: -33 to +15dB
Stereo Channel: LINE: -8 to +6dB
Attenuation (Crosstalk) (20 Hz-20 kHz bandwidth):
Line in, 1/4" TRS Main Out,1 kHz relative to 0 dBu, 22 Hz ~ 22 kHz Filter,Gain @ unity
Main Mix knob/fader @ -8: -87dBu(A-weighted)
Channel Level knob/fader @ -8: -85dBu(A-weighted)
Rated Output Level:
Main, Aux, Control Room output
(all knob/fader @ 0 dBu,1 kHz): 0dBu
Maximum Output Level:
Main, Aux, Control Room output(all knob/fader
@ 0 dBu,1 kHz, 22 Hz 22 kHz Filter,THD @ 1%): +20dBu
Maximum Voltage Gain (EQ and PAN/BAL knob @ 0 dB, Other all knob or fader @ max, DFX mute,1 kHz, Rs=600 Ohm):
Mono Channel MIC INPUTMAIN OUT (1/4" TRS Unbalanced): 74dBu
Mono Channel MIC INPUTPHONES (1/4" TRS Stereo): 84dBu
Mono Channel MIC INPUTAUX SEND (1/4" TRS Unbalanced): 79dBu
Mono Channel MIC INPUT TAPE OUT (RCA): 74dBu
Mono Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced): 59dBu
Stereo Channel LINE INPUT MAIN OUT (1/4" TRS Unbalanced): 33dBu
TAPE INPUT MAIN OUT (1/4" TRS Unbalanced): 10dBu

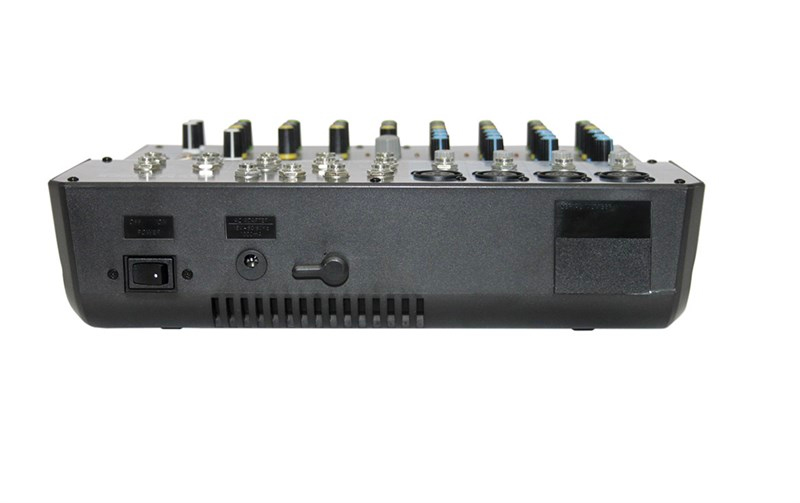

Power supply:
Adaptor: AC 18V, 1000mA
Power Consumption: 18W
Physical:
Dimension (L*W*H): 271*259*54.3mm
Weight: Net:1.9kg
|
Main mix Noise (20 Hz-20 kHz bandwidth):
MAIN OUT (all knob/fader @ 0 dBu,22 Hz 22 kHz Filter,Gain @ unity)
Main Mix knob/fader @ -8: -106dBu (A-weighted)
Channel Level knob/fader @ -8
Main Mix knob/fader @ 0dB: -95dBu (A-weighted)
Channel Level knob/fader @ -
Main Mix knob/fader @ 0dB: -93dBu (A-weighted)
Channel Level knob/fader @ 0dB
Input HPF:
Channel 1-4: 75Hz, 18 dB/oct
Equalization (Mono channels):
High: +/-15 dB @12 kHz
Mid: +/-12 dB @2.5 kHz
Low: +/-15 dB @80 Hz
Internal Digital Effect:
Presets: 100
Controls: 100-Position PRESET Selector and Mute Switch
Display: Two 7-segment display and Mute/Peak LED Indicator
Type of effects: VOCAL,SMALL ROOM, LARGE HALL, ECHO, ECHO+VERB, FLANGE+VERB, PLATE, CHORUS+GTR,ROTARY+GTR, TREMOLO+GTR
PEAK Indicator:
Channel 1-12: +17dBu
Digital Effect(AUX send): +11dBu
VU Meters: +20dBu
VU Meters:
Main Left and Right (4-segment): Clip (+20), +6, 0, -20 (0 LED=0 dBu)
Impedance:
Microphone Input: 2.6k Ohms
Line Input: 10k Ohms
CD/Tape Input: 22k Ohms
Main Outputs: 120 Ohms
Ctrl Room, Aux Sends: 120 Ohms
Tape Output: 1K Ohms
Phones Outputs: 25 Ohms
Phantom power:
Mic Pin2/Pin3 And Pin1(XLR-3-31 type balanced1=GND,2=HOT,3=COLD): +48V
|
