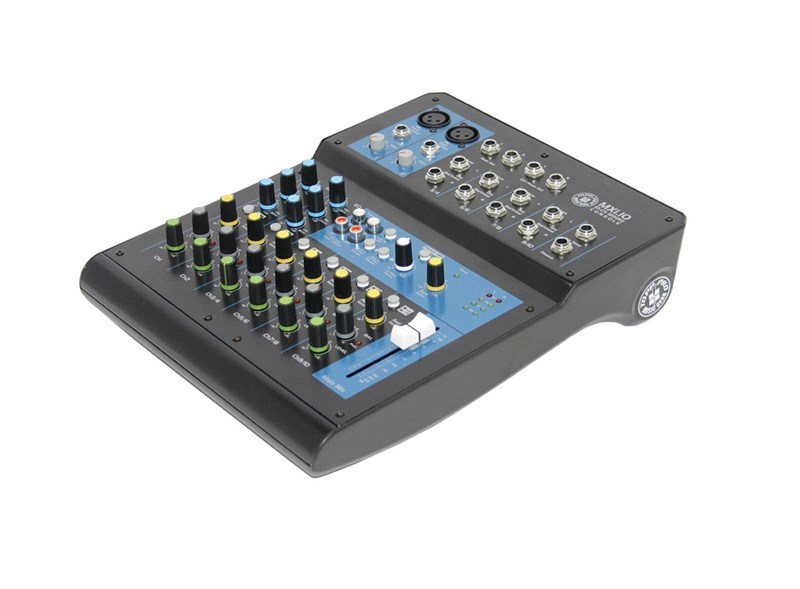

Model: MX.i10 / MXi.10USB
Frequency Response:
Mic Input to any Output (Trim at 0 dB)
+0, -1 dB: 10 Hz to 150 kHz
-3 dB: 10 Hz to 200 kHz
Distortion:
THD and SMPTE IMD: 20 Hz to 20 kHz
Mic Input to Main Output: <0.005% @+4 dBu output
Noise:
20 Hz to 20 kHz BW (150 Ohm source impedance)
Equivalent Input Noise (EIN): -129 dBu
Residual Output Noise
Main, Ctrl Room, Phones: -106 dBu
CMRR:
Mic In: 60 dB@1 kHz, Gain@ maximum
Crosstalk:
Adjacent Inputs or Input to Output: -90 dB@1 kHz
Input Gain Conrol Range: 0 dB to 50 dB
Phantom Power: +48 VDC
Equalization:
High: +/-15 dB@12 kHz
Mid (except for MX.5): +/-12 [email protected] kHz
Low: +/-15 dB@80 Hz
|
Mixer Rated Output:
Main, Aux, Control Room: +4 dBu
Maximum Rated Output: +22 dBu
Maximum Input Levels:
Mic Input: +12 dBu, Gain @+10 dB
Line Input: +30 dBu, Gain @+10 dB
Tape Input and Aux Return: +22 dBu
Input Impedance:
Mic Input: 2.6 kOhm , balanced
Line Input: 20 kOhm , balanced
Stereo Aux Returns: 20 kOhm , balanced
CD/Tape In: 24 kOhm , unbalanced
Output Impedance:
Main: 240 Ohm , balanced; 120 Ohm, unbalanced
Ctrl Room, Aux Sends: 120 Ohm
Tape Output: 1 kOhm
Phones Output: 25 Ohm
VU Meters:
Main Left and Right (4-segment): Clip (+18), +6, 0, -20 (0 LED=0 dBu)
AC Power Requirements:
External Power Supply Output: 18.5 VAC 2@150 mA (3-pin AC power connection)
External Power Supply AC Input: 240 VAC, 50 Hz
Physical:
Dimensions (H x W x D)
41 x 188 x 252 mm
Net Weight
1.4 Kg
|
