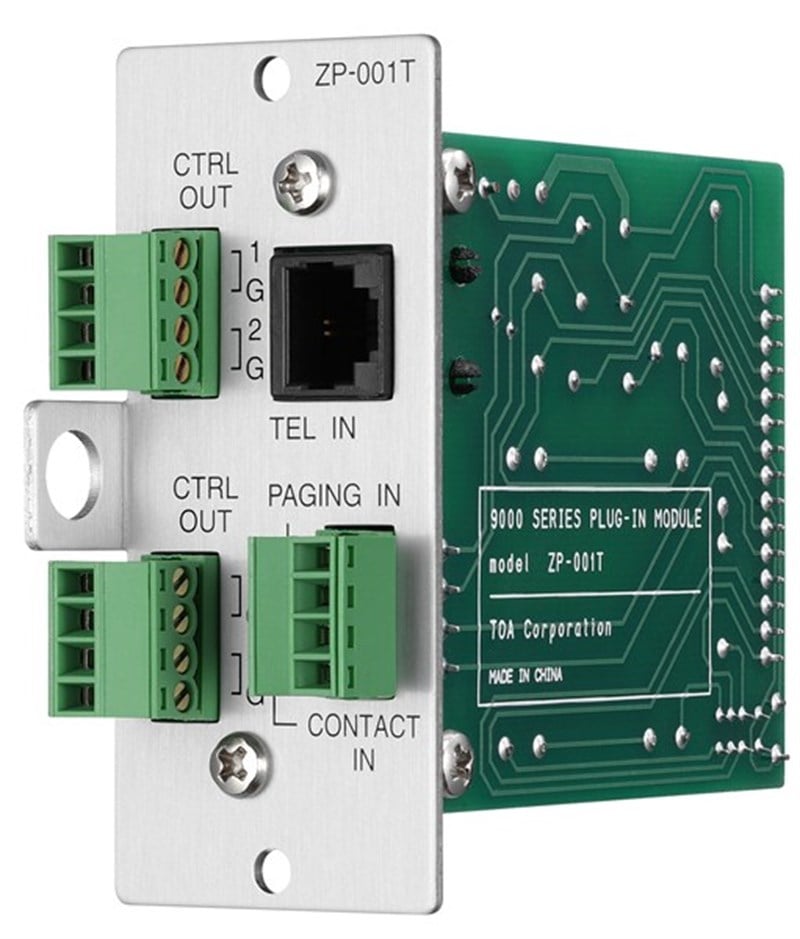

Toa ZP 001T Telefon Bölge Çağrı Modülü
Power Source +24 V DC, +6 V DC
Current Consumption 38 mA (at +24 V DC), 18 mA (at +6 V DC)
Number of Line 1 line
Type of Selectable Signal DTMF signal
Signaling System Loop-Start (or Ground-Start, selectable)
TEL Line 0 dB, 600 Ω, balanced, transformer-isolated,
loop voltage: 24 V DC or more, which should be supplied from the PABX.
RJ11 connector
Paging Input 0 dB, 600 Ω, balanced, transformer-isolated audio input,
removable terminal block (4 pins)
Control Input 1 channel, no-voltage make contact, open voltage: 5 V DC,
short-circuit current: 0.5 mA, removable terminal block (4 pins)
Control Output 4 channels, open collector output (isolated), withstand voltage: 35 V DC,
control current: max. 50 mA, removable terminal block (4 pins)
Operating Temperature -10℃ to +40℃
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm
Weight 153 g
Accessory Removable terminal plug (4 pins) …3, Module mounting screw …
