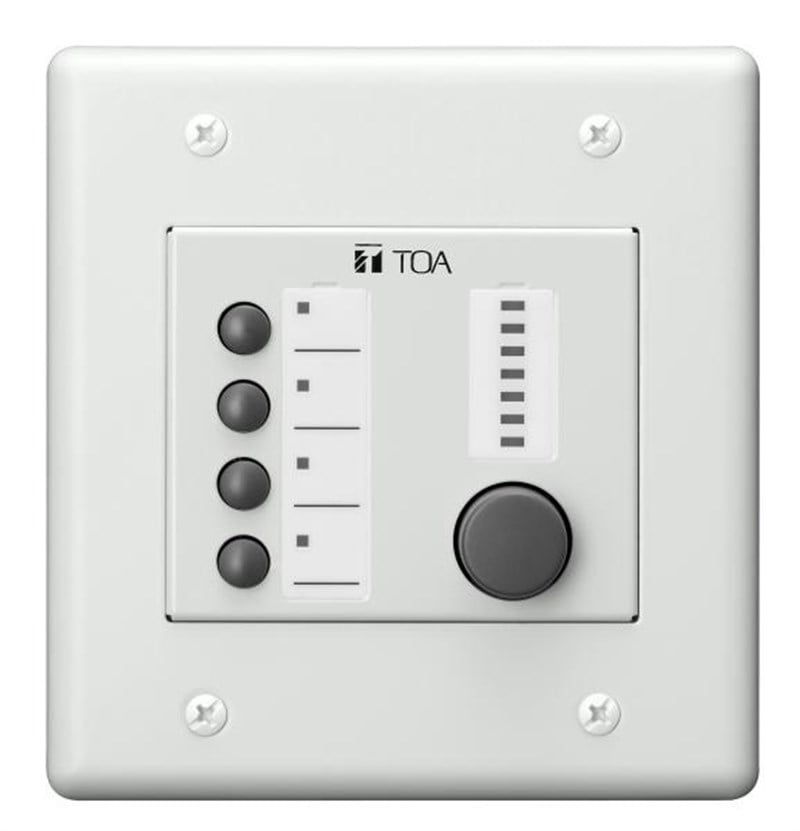

Toa ZM-9014 Ses Kontrol Paneli (1 Volum Potans. 4 Kanal Seçici)
Power Source 24 V DC (supplied from RC-001T or M-864D)
Current Consumption 50 mA or less
Terminal Removable terminal block (10 pins)
Connection Cable Shielded CPEV cable (paired data line and paired power line) or
Category 5 twisted pair cable for LAN (CAT5-STP)
Operating Section 4 function buttons, 1 volume control
Indicator 4 function indicators (green LEDs), Level indicators (green LEDs)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Surface-treated steel plate, white, paint
Dimensions 120 (W) × 127 (H) × 58.5 (D) mm (4.72" × 5" × 2.3")
Weight 374 g (0.82 lb)
Accessory Box mounting screw (No.6-32UNC × 30) …4,
Box mounting screw (M4 × 30) …4, Panel mounting screw …4,
Removable terminal plug (10 pins) …1
