Toa ZM-9012 Ses Kontrol Paneli (1 Volum Potans.)

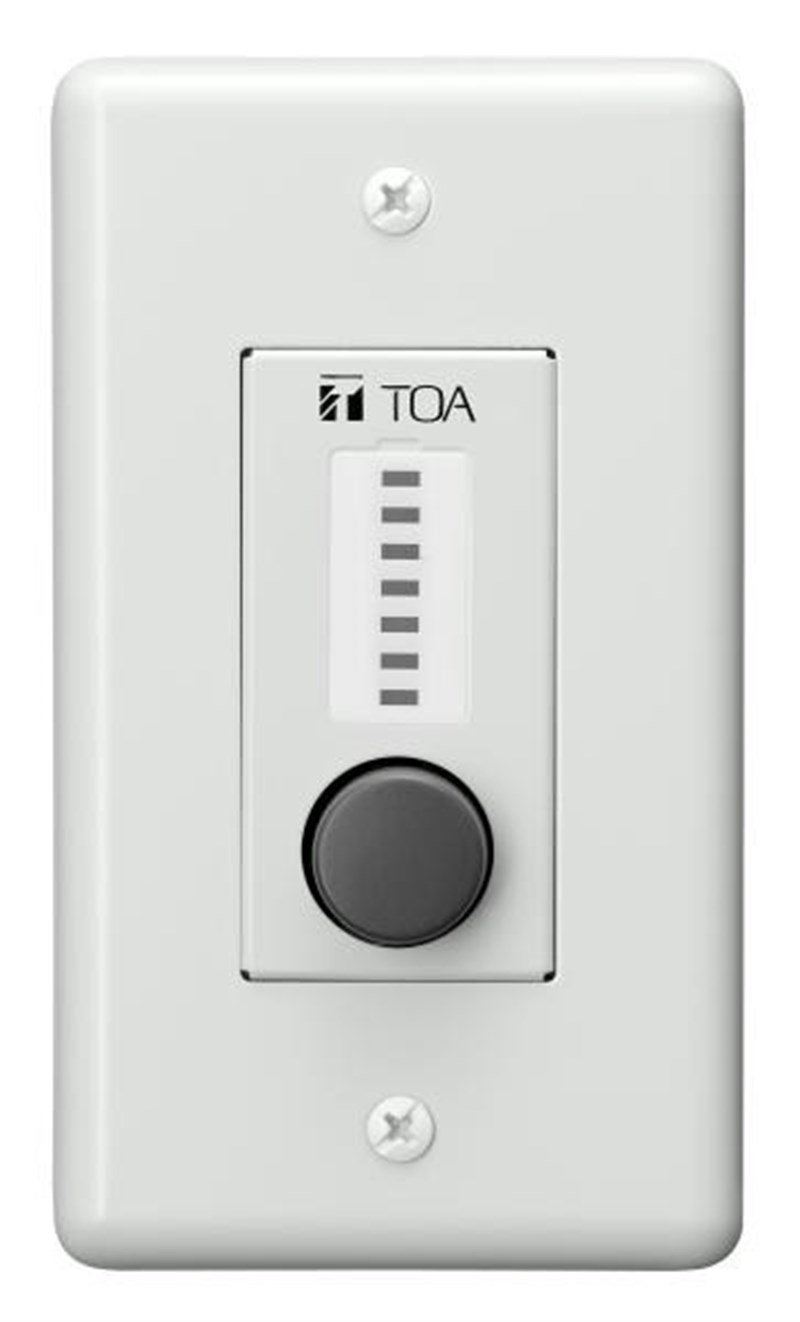

Toa ZM-9012 Remote Control Panel
Designed for exclusive use with the 9000M2 Series amplifier or M-864D,
the ZM-9012 is a wall mounted remote control panel having a volume control knob.
It is used in conjunction with the RC-001T Remote control module or M-864D.
It can be mounted in an American standard 1-gang electrical box in the wall.
Power Source24 V DC (supplied from RC-001T or M-864D)
Current Consumption50 mA or less
TerminalRemovable terminal block (10 pins)
Connection CableShielded CPEV cable (paired data line and paired power line) or
Category 5 twisted pair cable for LAN (CAT5-STP)
Operating Section1 volume control
IndicatorLevel indicators (green LEDs)
Operating Temperature0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity35 % to 80 %RH (no condensation)
FinishSurface-treated steel plate, white, paint
Dimensions72 (W) × 127 (H) × 57.5 (D) mm (2.83" × 5" × 2.26")
Weight208 g (0.46 lb)
AccessoryBox mounting screw (No.6-32UNC × 30) …2,
Box mounting screw (M4 × 30) …2, Panel mounting screw …2,
Removable terminal plug (10 pins) …1
