Toa ZM-9003 Uzaktan Kontrol Paneli (6 Buton)

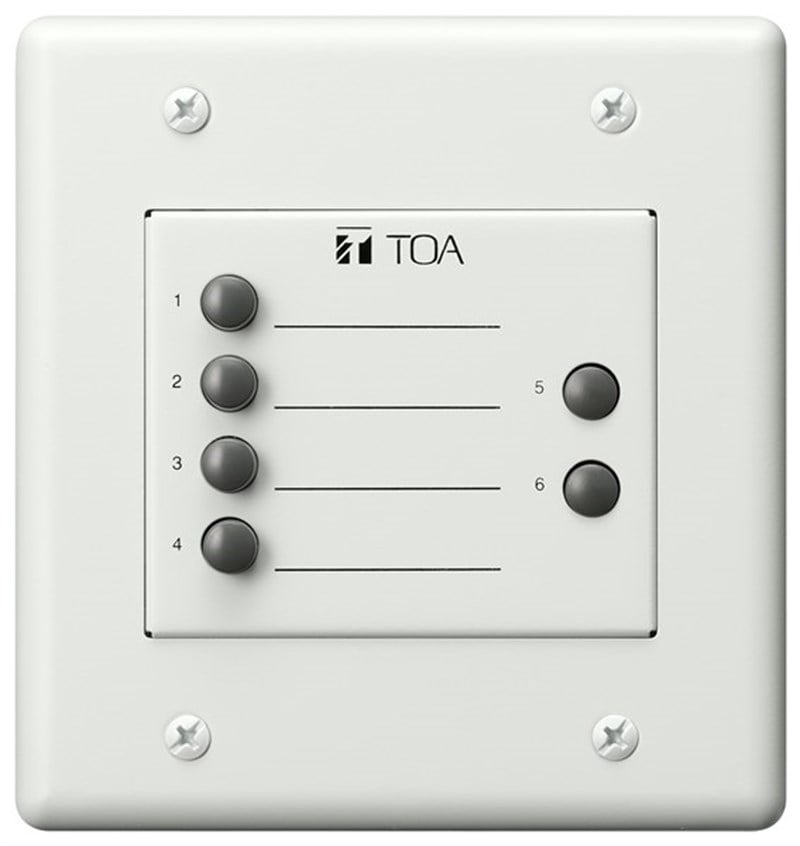

The ZM-9003 is a remote control switch panel with 4 interlocking selection switches
and 2 momentary switches.
Connecting it to the 9000 series amplifier's control input terminal permits various
controls such as BGM source selection and the sound volume adjustment.
It can be mounted in an American standard 2-gang electrical box in the wall.
Line Resistance250 Ω or less (per line)
TerminalRemovable terminal block (7 pins)
Operating Temperature-10℃ to +40℃ (14゜F to 104゜F)
FinishSurface-treated steel plate, white, paint
Dimensions120 (W) × 127 (H) × 53.3 (D) mm (4.72 × 5" × 2.1")"
Weight375 g (0.83 lb)
AccessoryBox mounting screw (No.6-32UNC × 30) …4,
Box mounting screw (M4 × 30) …4,
Panel mounting screw …2, Removable terminal plug (7 pins) …1
