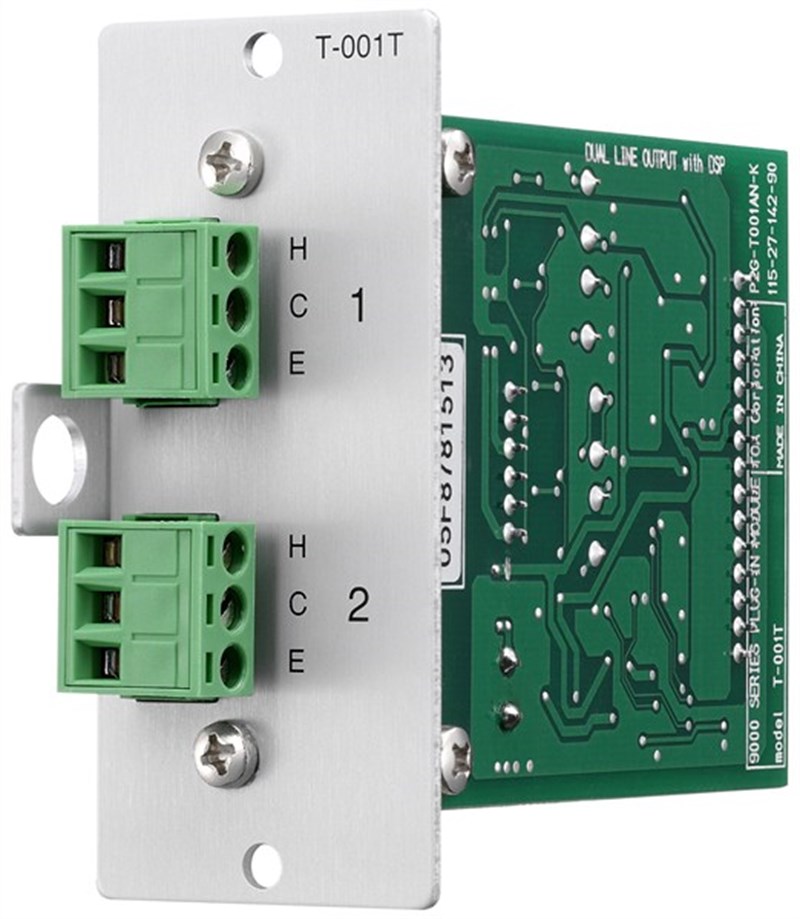

Toa T-001T Dual Line Output Module With DSP
Power Source +24 V DC, -24 V DC, +6 V DC
Current Consumption 35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC)
Output 2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced,
removable terminal block (3 pins)
Frequency Response 20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion + N 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load)
S/N Ratio Over 73 dB (at 20 Hz - 20 kHz BPF)
Residual Noise Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB)
Cross Talk Over 87 dB (at 20 kHz)
D/A Converter 24 bit DAC
Sampling Frequency 48 kHz
Tone Control Bass: ±12 dB (at 100 Hz)
Treble: %%p12 dB (at 10 kHz)
Parametric Equalizer 10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB,
Q: 0.3 - 5
Speaker Equalizer 10 (setup software has 30 TOA speaker presets)
High-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter -12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor Depth: 1 - 5
Delay 0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only
Operating Temperature -10 ℃ to +40 ℃
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm
Weight 82 g
Accessory Removable terminal plug (3 pins) …2, Module mounting screw …2
