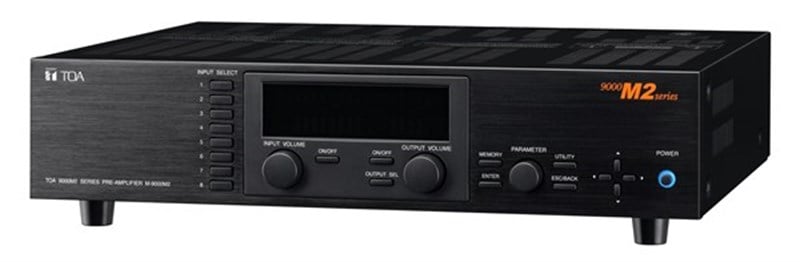

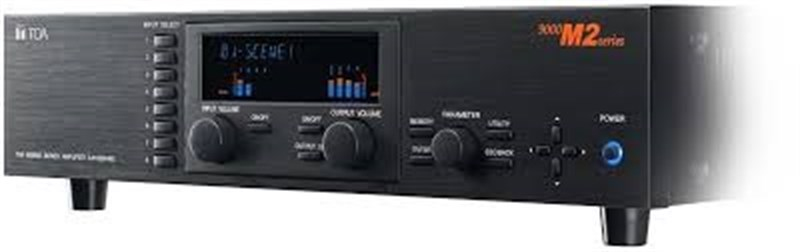

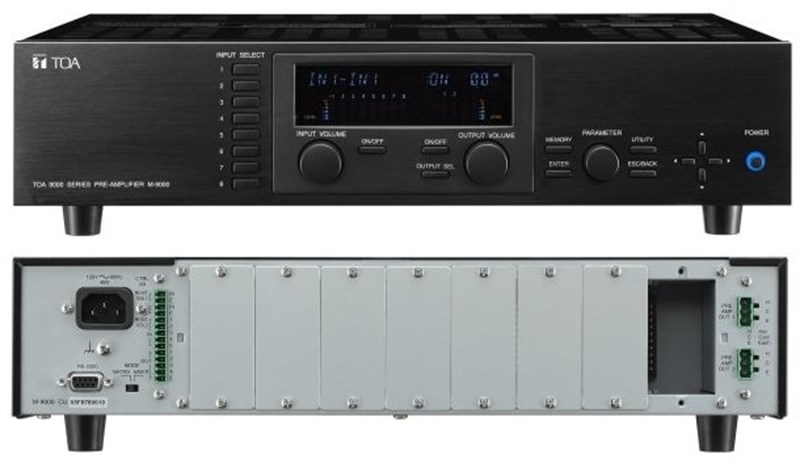

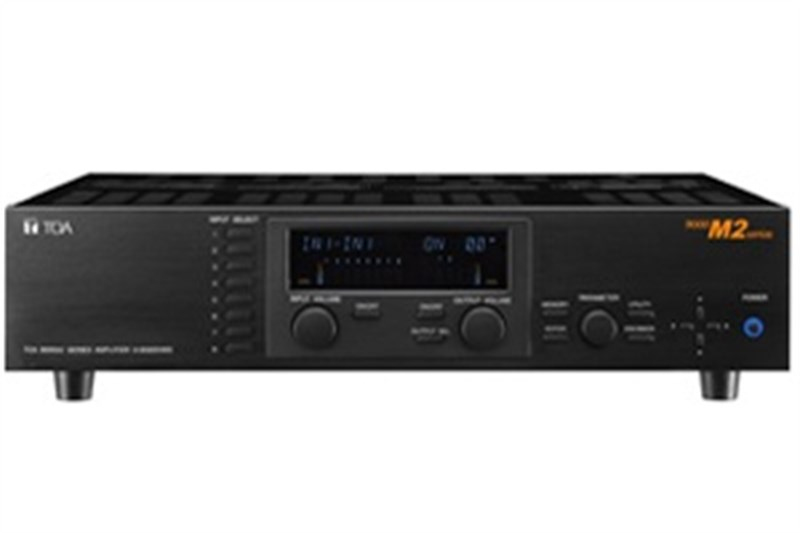

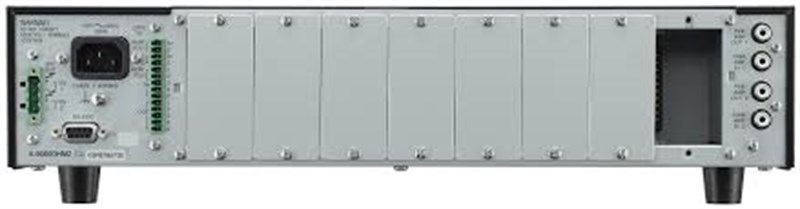

Toa M-9000 M2 - 8x8 Dijital Matrix Mikser
Power Source AC Mains, 50/60Hz
Power Consumption 40W
Audio Input Max. 8 channels, modular construction (modules optional)
Audio Output Preamplifier output 1, 2: 0dB*, 600Ω, balanced, removable terminal block (3 pins)
Module Slot Analog input (slot 1 – 8): -10dB*, 10kΩ, unbalanced
Digital input (slot 1 – 4): 24 bit/48kHz
MIX output (slot 1 – 8); -14dB*, 330Ω (CH 1 prefader output), unbalanced
Digital output (slot 5 – 7): 24 bit/48kHz
Power supply (slot 1 – 8); +24V, -24V, +6V DC
Frequency Response 20Hz – 20kHz +1, -3dB
Total Harmonic Distortion 0.008% (@22kHz LPF, 1kHz, +10 dB* output)
S/N Ratio At input short, 20Hz – 20kHz, ALL FLAT or OFF setting
Output volume min.: 90dB
Output volume max.: 61dB (input 1 vol.: 0dB,other inputs:OFF)
Crosstalk 64dB or more (at 20kHz)
Tone Control Bass: +/-12dB (at 100Hz), Treble: +/-12dB (at 10kHz)
Parametric EQ 10 bands, Freq: 20Hz – 20kHz, 31 points, Variable range: +/- 12dB, Q: 0.3 – 5
Speaker Equalizer 10 (setup software has 30 TOA speaker presets)
High-pass Filter -12dB/oct, Variable frequency range: 20Hz – 20kHz, 31 steps
Low-pass Filter -12dB/oct, Variable frequency range: 20Hz – 20kHz, 31 steps
Compressor Depth: 1 – 5
Delay 0 – 40 ms (1 ms steps), maximum 40 ms (CH1 + CH2)
Scene/Event Memory 32
Auxiliary Function Key lock function
Control Input/Output RS-232C*2, D-sub connector (9P, female)
Control input: 4 inputs, no-voltage make contact input, open voltage: 3.3V DC, short-circuit current: 1mA or less,removable terminal block (14 pins)
Control output: 4 outputs, open collector output, withstand voltage: 27V DC,control current: 50mA, removable terminal block (14 pins)
Remote volume: 2 channels, connect a10kΩ/linear taper variable resistor or input the DC voltage of 0 to 10V, removable terminal block (14 pins)
Operating Temperature -10° to 40°C (14° to 104°F)
Operating Humidity 35% to 80% RH (no condensation)
Finish Panel: aluminum, hair-line, black; Case: surface-treated steel plate, black paint
Dimensions (W × H × D) 420 × 107.6 × 353mm (16.54″ × 4.24″ ×13.9″)
Weight 6 kg (13.23 lbs.)
Acessories Blank panel…7, Blank panel mounting screws….14
Removable terminal plug(3pins)…2
Renovable terminal plug (14 pins)…1, CD…1
