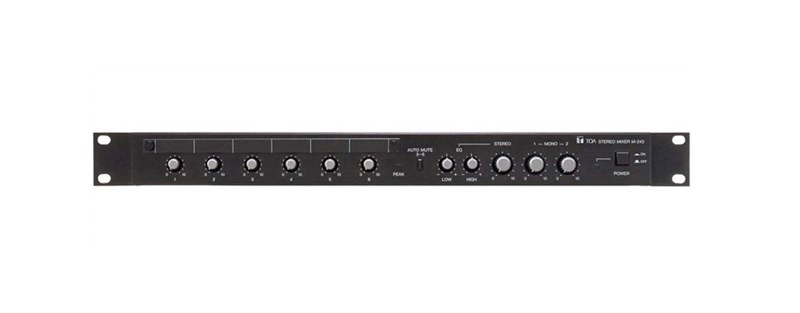

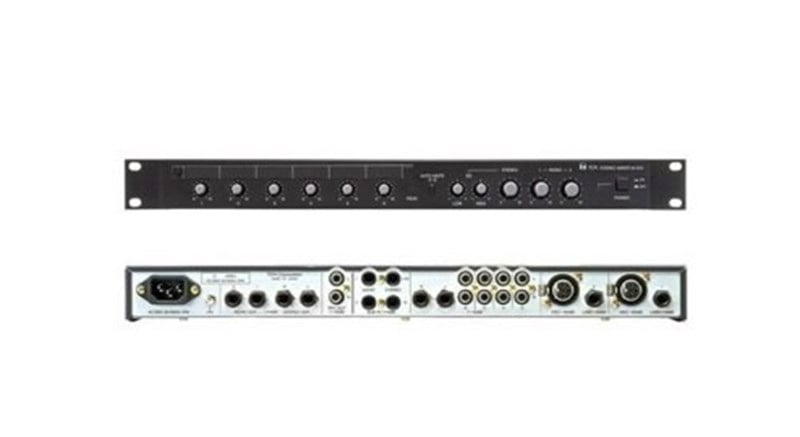

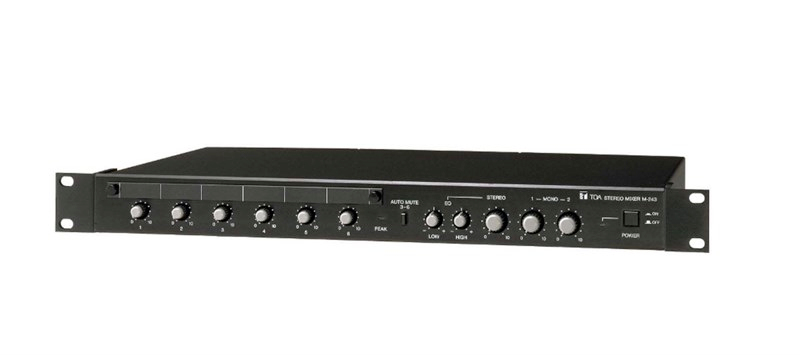

Toa M-243 - Rack Tipi 6 Girişli Deck Mikser
Power Source AC mains
Power Consumption 10 W (120 V AC version)
12 W (220 - 240 V AC version)
Monaural Input Line: -10 dB*, 10 kΩ, unbalanced, phone jack
Mic: -60 dB*, 1 kΩ, balanced, XLR3-pin connector
Mic (Pad): -40 dB*, 1 kΩ, balanced, XLR3-pin connector
Stereo Input (L, R) -10 dB*, 10 kΩ, unbalanced, RCA jack
Auxiliary Stereo Input +4 dB*, 50 kΩ, unbalanced, phone jack
Stereo Output (L, R) +4 dB*, 1 kΩ, unbalanced, phone jack
Monaural Output (1, 2) +4 dB*, 1 kΩ, unbalanced, RCA jack
REC Output (L, R) -10 dB*, 1 kΩ, unbalanced, RCA jack
Frequency Response 20 - 20,000 Hz (+1, -2 dB)
T.H.D. 0.01 % or less (1,000 Hz, rated input/output)
Noise Level (IHF-A) When all volume controls are in minimum position.
Stereo Output (L, R): -105 dB* or less
Monaural Output (1, 2): -98 dB* or less
When the stereo, monaural (1, 2) are in maximum position.
Stereo Output (L, R): -94 dB* or less
Monaural Output (1, 2): -95 dB* or less
Finish Front Panel : Alumite, black
Case : Steel, black
Dimensions 483 (W) × 46 (H) × 301.8 (D) mm (19.02" × 1.81" × 11.88")
Weight 3.8 kg (8.38 lb)
Accessory Rack mounting screw……4, Rubber foot……4, Knob (blue, small)……2,
Knob (red, small)……2, Knob (blue, large)……1, Knob (red, large)……1
