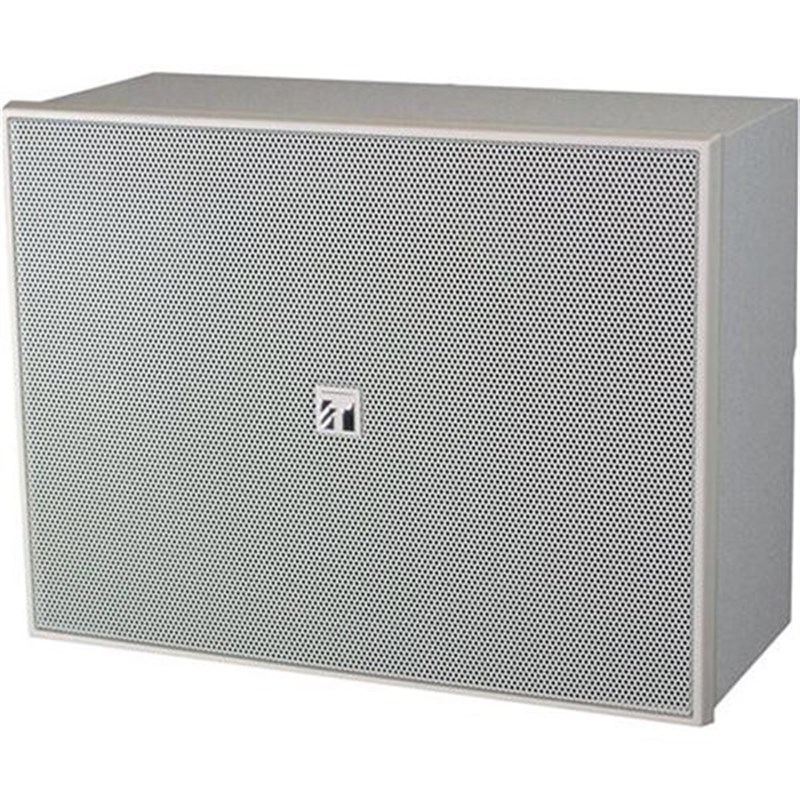

Toa BS-678 6 inç 6W 16CM Duvar Tipi Hoparlör
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Sensitivity 94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)
Frequency Response 150 Hz - 20 kHz (peak -20 dB)
Speaker Component 16 cm (6") double cone-type
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal)
Finish Baffle: HIPS, off-white (RAL 9010 or equivalent color)
Cabinet: Particle board with pvc sheet, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color)
Dimensions 250 (W) × 190 (H) × 110 (D) mm (9.84" × 7.48" × 4.33")
Weight 1.7 kg (3.75 lb)
Accessory Speaker mounting screw (4 × 35 (0.16" × 1.38")) …2
