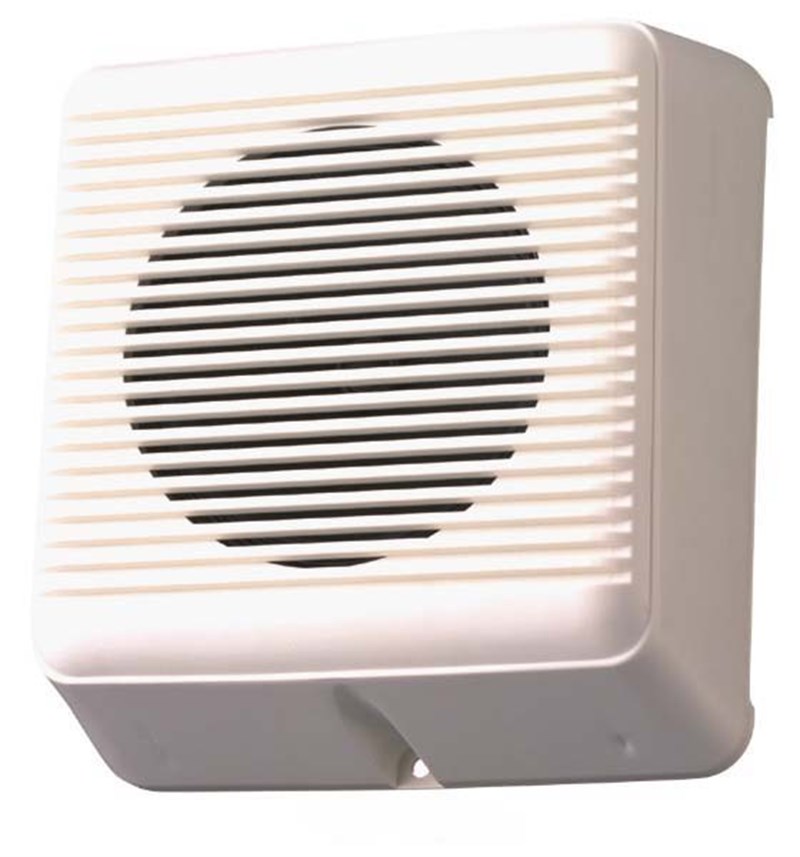

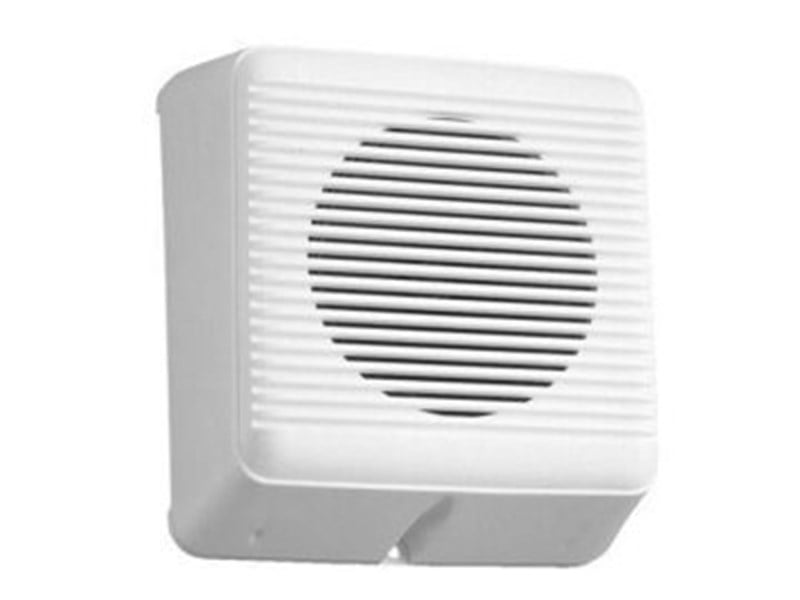

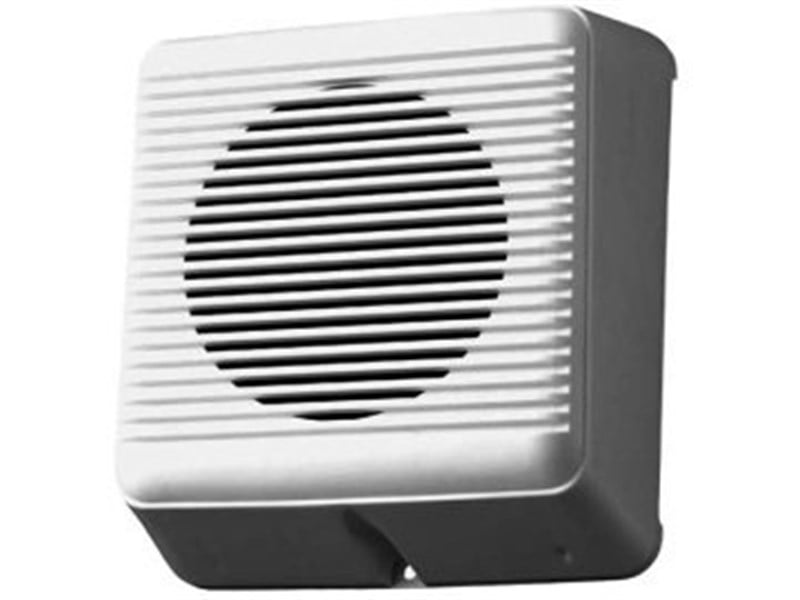

Toa BS-633 A - 12 cm 6W 100V Duvar Hoparlörü
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 91 dB (1 W, 1 m)
Frequency Response 120 - 15,000 Hz (-20 dB)
Speaker Component 12 cm (5) cone-type"
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal)
Operating Temperature -10℃ to +50℃ (14゜F to 122゜F)
Finish Case: ABS resin, off-white
Rear board: Hard board
Dimensions 173 (W) × 195 (H) × 101 (D) mm (6.81 × 7.68" × 3.98")"
Wall Mounting Dimensions Case front mount: 184 mm (7.24)"
Fixing hole mount: 120 mm (4.72)"
Weight 780 g (1.72 lb)
Accessory Speaker mounting screw (4 × 35 (0.16 × 1.38")) … 2
