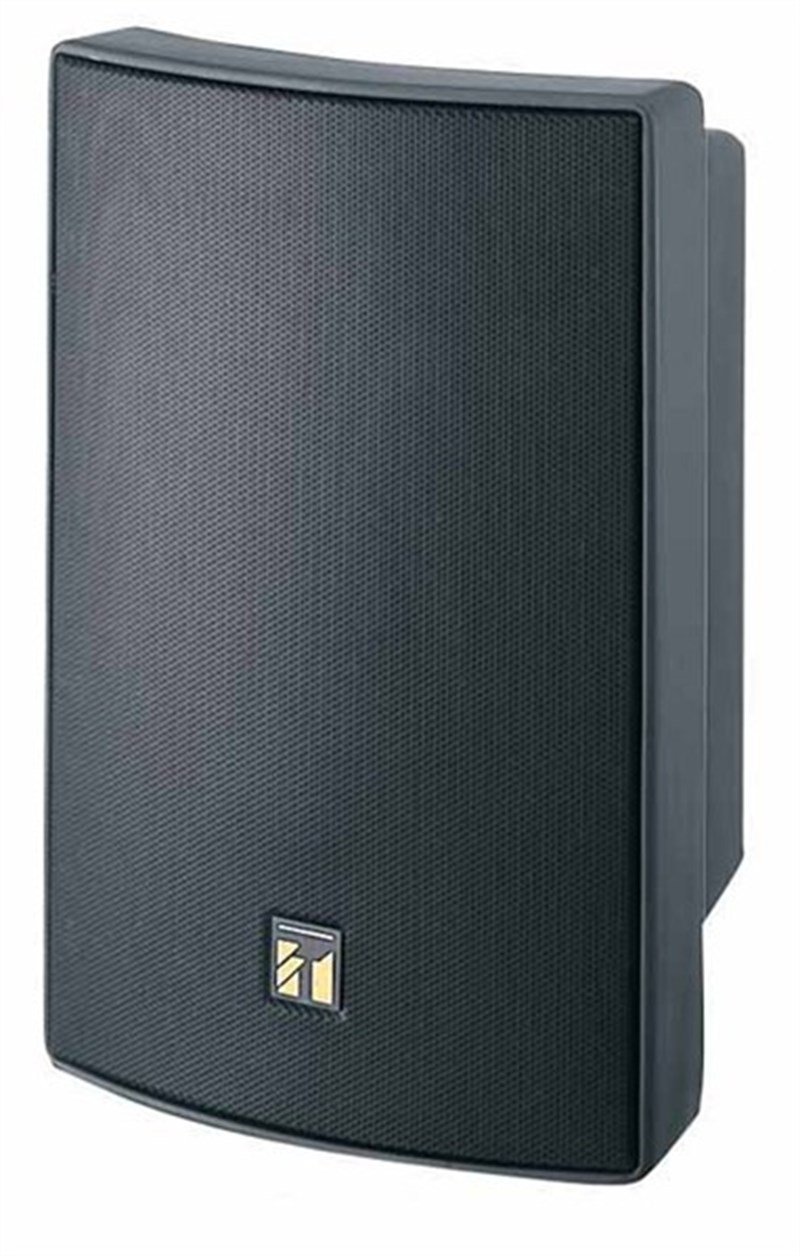

Toa BS 1030B - 5 inç 100V 30W 2-Yollu Bass Reflex Tip Hoparlör (Siyah)
İç ve Dış Mekan Uygulamaları

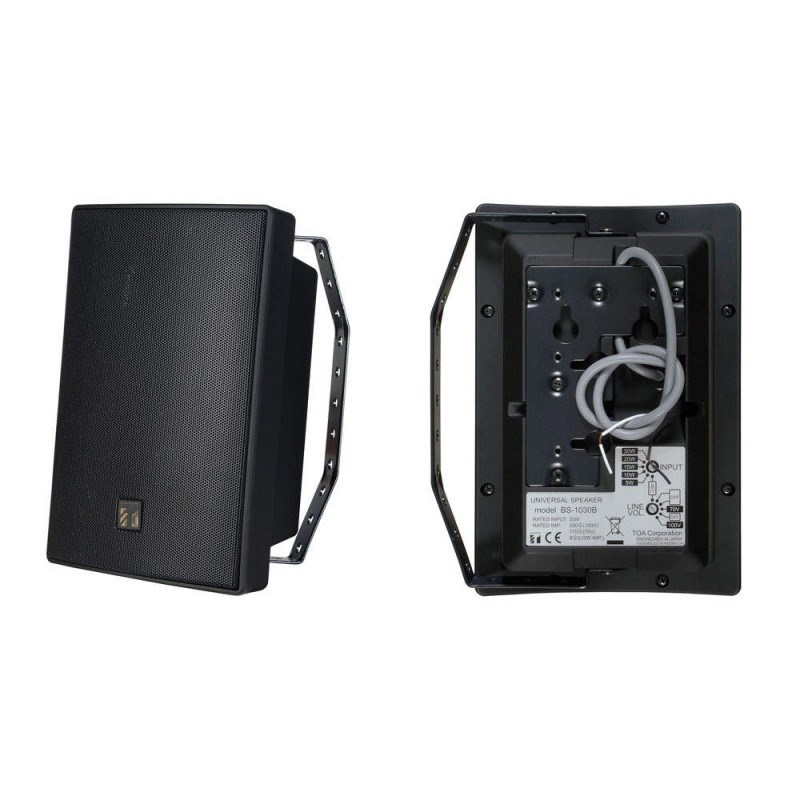

Montaj Braketi
Boyanabilir Muhafaza
İki Yönlü Bas-Refleks Tasarım
70.7/100 V ve 8-Ohm
Tornavida-Ayarlanabilir dokunun Ayar s
Renk Siyah
Enclosure 2-way bass-reflex type
Rated Input 30 W
Rated Impedance 8 Ω
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sound Pressure Level 90 dB (1 W, 1 m)
Frequency Response 80 Hz - 20 kHz
Speaker Component 12 cm cone-type + dome-type
Speaker Cord 2-core cabtyre cord with diameter of 6 mm
Operating Temperature -10 ℃ to +50 ℃
Water Protection IPX4 (can be installed vertically or horizontally.*)
Finish Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint
Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating
Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK,
powder coating
Dimension 196 (W) × 290 (H) × 150 (D) mm (unit only)
Weight 2.5 kg (unit only)
Accessory Bracket…1,
Bracket mounting screw…2,
Bracket mounting washer…2
Option Applicable bracket: WCB-13B, SP-410
Applicable stand: ST-16A
