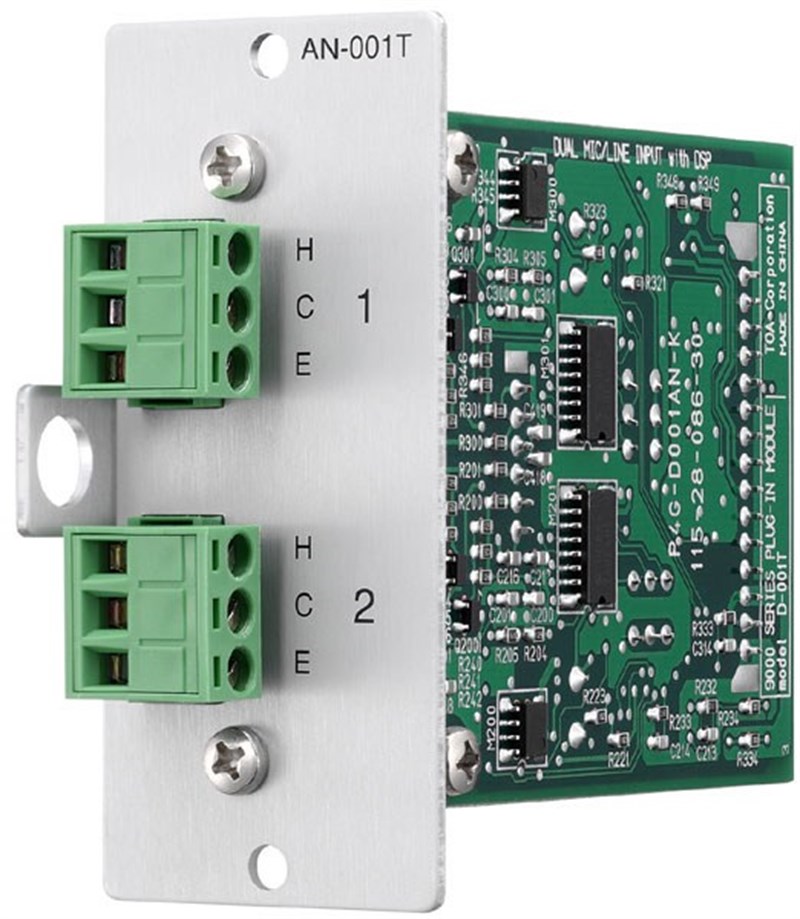

Toa AN-001 T M-9000 M2 Modül Kartı
Power Source +24 V DC, -24 V DC, +6 V DC
Current Consumption 20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input Sensor input (Ambient noise sensor microphone input): 2 channels,
3 kΩ (when the phantom power is ON)/10 kΩ (when the phantom power is OFF),
electronically-balanced, removable terminal block (3 pins)
Input Sensitivity -60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
Phantom Power +24 V DC
A/D Converter 24 bit ADC
Sampling Frequency 48 kHz
Ambient Noise Control Function Sensor input reference level adjustment function
Maximum output signal level control: -15 to 0 dB
Minimum output signal level control: -18 to -3 dB
Sample time setting: 10 s, 15 s, 20 s, 30 s, 1 min, 2 min, 3 min, 5 min
Gain ratio setting (Ambient noise: Output signal level):
Operating Temperature -10℃ to +40℃
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) × 78 (H) × 91.5 (D) mm
Weight 82 g
Accessory Removable terminal plug (3 pins) …2, Module mounting screw …2
Option Ceiling mount microphone: AN-9001
