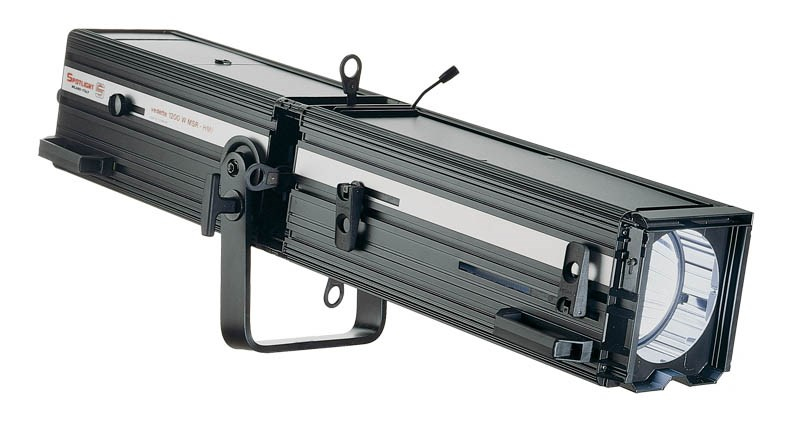

Spotlight VD 12 MCR 7˚ 18˚ 1200W Takip Spotu
7˚ - 18˚
200x200x1124 mm
Lamp MSR G 22
18.8 kg
Sehpa dahil değildir
Electrical (ballast)
Standard 230V, 50/60Hz power supply (others available
Compact magnetic ballast supplied as standard (flicker-free electronic
Bipolar thermomagnetic safety switch
Capacitor for power factor correction
Lamp-on and Power-on indicators
2m power supply cable (plug available on request)
Electrical (lantern)
Lamp-holder type G 22 special
Silent fan
Strain relief cable clamp entry into light housing
2.5 m lantern-to-ballast cable with lockable multi-pole connector
Safety
Automatic power cut-out by bipolar microswitch on opening the lamp-tray
Filter-frame locking system
Compliance to CE EN 60598-2-17 standards
Optical
High output definition for gobo projection
Independent lens system 7° to 16°
4 lens condenser optical system with aspherical quartz lens
4 removable shaping shutters mounted between plates specially treated with anti-abrasive surface
18-leaf iris diaphragm with black-out
Optical tempered glass internal lens; diameter 150mm
Optical glass external lens; diameter 230mm
Spherical reflector in 99.99% polished and treated aluminium
Mechanical
Die-cast extruded aluminium housing
Black optical internal paint to give no light reflection and high temperature resistance
Black Epoxy Resin paint
Labyrinth ventilation to avoid light spillage
Operational
A size gobo holder slots covered by a sliding door to prevent the accessories from falling out and to avoid spill light
Exclusively designed zoom and focusing system with fast locking levers
Double sliding door to access lenses for maintenance
Lamp-tray hinged to the housing for easy maintenance
Yoke with 10mm diameter hole, reversible and sliding into extruded rails to allow installation, focusing and balancing of the accessories
Accessory top covered by a door
Heat insulated knobs and handles
Optimum working distance 20 to 40m
Manual dimmer (optional)
DMX 512 controlled dimmer (optional)
Removable lantern and optics
