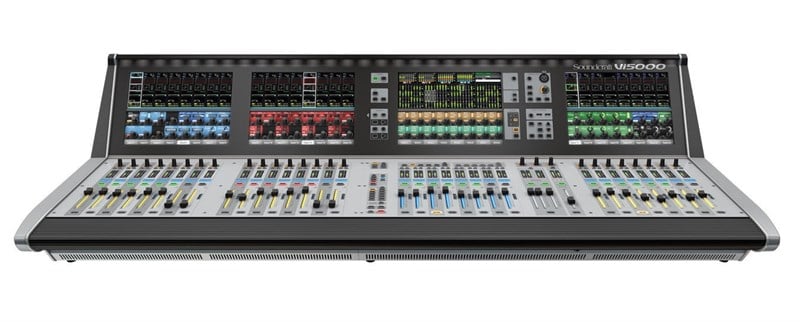

Soundcraft Vi5000 Digital Live Sound Console
The Vi5000 digital mixing consoles delivers the best Vi sound ever, bringing optional 96kHz processing, upgraded channel counts and even more reliable hardware to live sound's most popular mix interface.
Partnering a compact control surface with new Local Rack and Active Breakout box hardware, Vi delivers simultaneous mixing of up to 128 inputs and 32 mono/stereo busses.
Pristine sound quality is assured by ultra-low noise mic amp designs and enhanced 96kHz* 40-bit floating point digital audio processing, while FX come courtesy of 8 independent Lexicon multi-FX units, BSS DPR901ii™ integration and a BSS graphic EQ on every bus output. Rapid configuration and powerful automation features, radio mic status monitoring and extensive ViSi Connect I/O expansion (EtherSound™, CobraNet™, Dante™, MADI, etc.) complete the package.
* Additional DSP cards and reduced channel count required for 96kHz operation
Specifications
Frequency Response - Stagebox Mic input to Line output: +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out: +0/-0.2dB, 20Hz-20kHz
Stagebox Mic In (min gain) to Local Line Out: <0.003% @ 1kHz
Stagebox Mic In (max gain) to Local Line Out: <0.020% @ 1kHz
Local Line In to Line Out: <0.003% @ 1kHz
Mic Input E.I.N: <-126dBu (150Ω source)
Residual Noise: -91dBu Stagebox line output; no inputs routed, Mix fader @0dB
CMRR, Stagebox Mic input: 80dB @ 1kHz
Sampling Frequency: 48kHz or 96kHz
Latency: Stagebox Mic Input to Local Line output: <2ms @48kHz
AES/EBU Input Sample Rate: 32–108kHz (with SRC enabled)
DSP Resolution: 40-bit floating point
Internal Clock Accuracy: <+/-50ppm
Internal Clock Jitter: <+/-5ns
External Sync: BNC Wordclock
Input & Output Levels - Mic Inputs: +28dBu max
Input & Output Levels - Line Inputs: +22dBu max
Input & Output Levels - Line Outputs: +22dBu max
Nominal Operating Level: +4dBu (-18dBFS)
Input & Output Impedances - Mic Inputs: 10kΩ
Input & Output Impedances - All other analogue Inputs: >10kΩ
Input & Output Impedances - Line Outputs: <75Ω
Input & Output Impedances - AES/EBU Outputs: 110Ω
Oscillator: 20Hz to 20kHz/Pink/White Noise, variable level
Stagebox HP Filter: 80Hz fixed, 12dB per octave
Channel HP filter: 20Hz-600Hz, 18dB per octave
Channel LP filter: 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid: 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF: 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering: Internal 20-segment LED bargraphs plus 9-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range: 90-264V, 47-63Hz, autoranging
Mains Power Consumption: 300W
Operating Temperature: 0°C – 45°C (32°F – 113°F)
Relative Humidity: 0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature: -20°C – 60°C (-4°F – 140°F)
