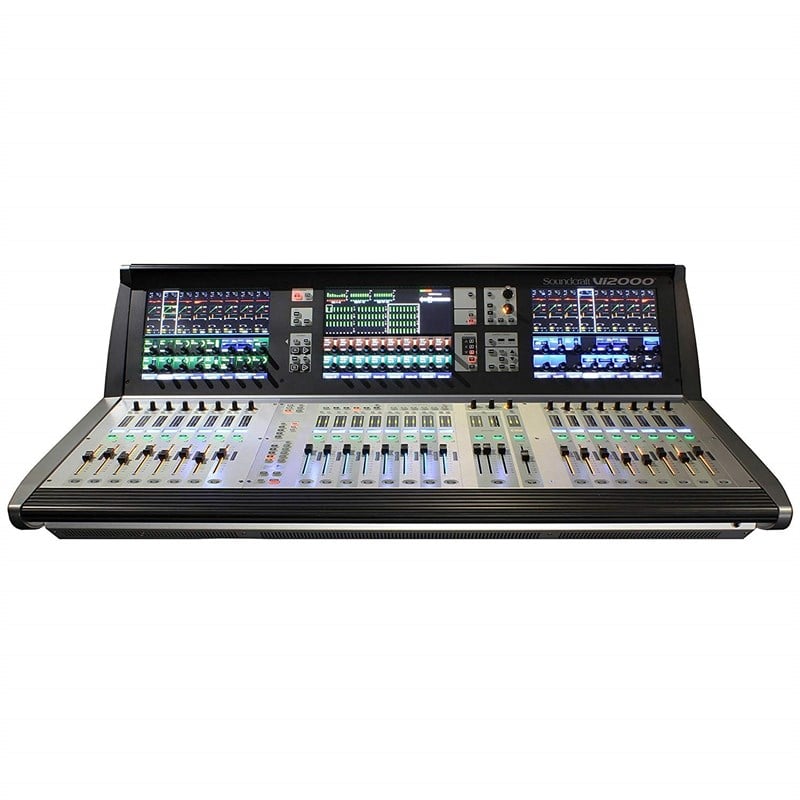

Soundcraft Vi2000 96 input 24 Fader Digital Mixing Console
The Soundcraft Vi2000 features an all-new appearance with a more efficiently designed control surface, 28 faders, 24 mono/stereo busses and a sweeping black screen panel with three Vistonics II™ touchscreen interfaces with sleek, updated 3D graphics. Because the Vi2000 has three touchscreens, it’s the only console in its class that can be used by two engineers at the same time. And at show time... Settings libraries, copy/paste functions, sophisticated automation and radio mic status monitoring, FaderGlow™, processing from dbx, BSS, Lexicon and Universal Audio (Optional Realtime Rack), and more will not let you down.
Features
Control Surface
Input Faders: 16
Output Faders: 8 +3 (LRC masters) +1 (Monitor A/B)
Total Faders: 28
3D Vistonics screens: 3 (2 input, 1 master)
Fader bay operation: 4x Fixed Input layers A/B/C/D giving 64 inputs on 16 fdrs.
Input channels can be assigned to Master bay for 24 input fdrs.
5x User layers 1-5
1x Busses 1-16 Layer plus screen assign 17-24, for 24 mono/stereo busses
VCA/A/B/C/D/E output/input fader pages, (A-E user definable)
Local I/O Physical connectors
Mic/Line Inputs: 48, 32 or 16 configurable (max 3x 16ch out cards of 4 total) (Last 5 outs default to local monitors but can be repatched)
AES/EBU In: 2 (=4ch) plus optional 16ch via Vista1 card (remove 2 mic or line out cards to fit).
AES/EBU Out: 2 (=4ch) plus optional 16ch via Vista1 card (remove 2 mic or line out cards to fit).
TB Mic in: 1 front panel, with rear-switched 48V.
Phones out: 1 ste jack, under armrest
Optical MADI In/Out: 1 (outputs paralleled with Dante interface).
Dante ports: 1x 64ch in/out (2x Ethercon Pri/Sec).
Dante inputs are A/B switched with optical MADI.
D21m Option Slots: 2 double/4single (total 128ch)
AES/EBU Input Sample Rate: 32–108kHz (with SRC enabled)
Total number of simultaneous IO channels: 246 inputs / 214 outputs
(assumes 48 mic in/16 line out config)
DSP Mixing Core Soundcraft® SpiderCore
Processing: 40-bit Floating point, 48kHz sample rate
Input Channels to mix: 96 mono Pairable to 48 stereo
Busses - Aux/Grp: 24 mono/stereo
Busses - Matrix: From 24 bus pool – max 16 mono/stereo.
Busses - Master: 3 (LRC)
Assignable Insert Points: 64 + 4FX
Tie Lines: 128 (allow Stagebox IO to connect to Local IO without using mixing channels.
Lexicon FX: 4 units (14 reverbs, 7 delays, 8 pitch-shift effects in each unit)
Tap Delay from F-key 1-4.
BSS Dynamic EQ: 8 instances of DPR901ii 4-band DEQ
vMIX Automixing: Up to 2 groups of 16 input channels
BSS GEQ: 24 mono/stereo +LRC.
External Control Ports
Ethernet: 1 (dedicated HiQnet / Realtime Rack control)
MIDI: 1 In, 1 Out
Other Ports
Mains Input: 2, switched (redundant power supplies built in)
USB2.0: 4 (2 front, 2 rear)
Wordclock: In /Out 2x BNC
DVI out: Reserved for future use
Gooseneck lamp 4-pin XLR: 2, for rear panel illumination
Stagebox: Optional, via MADI optical or Cat 5 option cards fitted to D21m expansion slots. Can connect up to 2 x 64ch Vi Stageboxes. Also compatible with Compact Stagebox and Mini Stagebox
