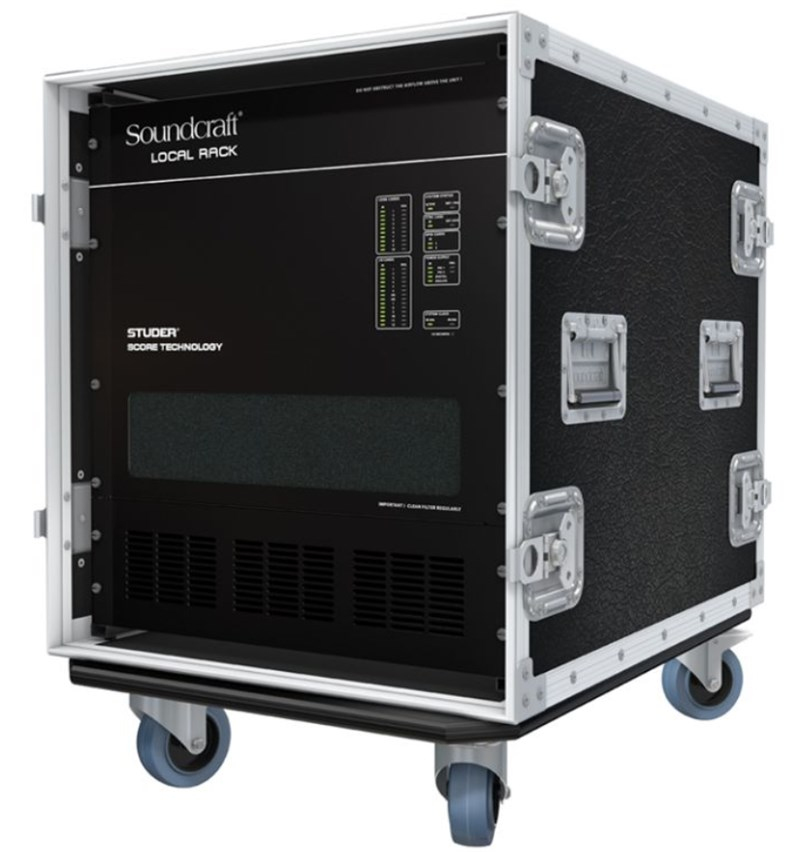

Soundcraft Vi 7000-5000 Local Rack
Soundcraft Vi 7000-5000 Local Rack

Soundcraft Vi 7000-5000 Local Rack

Marka : Soundcraft
Fiyat : $0.00(KDV Dahil)



Soundcraft Vi 7000-5000 Local Rack



Soundcraft Vi 7000-5000 Local Rack, en uygun fiyat  ve etkili performansıyla medumuzikmarket.com'da


The latest incarnation of the Local Rack boosts I/O up to 384 and is loaded with additional card slots to allow simultaneous use with two Stageboxes, 2 recording cards and the Realtime Rack MADI interface.

Various operating modes are available using a combination of DSP cards

128 inputs/32 stereo busses @ 48kHz (5 DSP cards)

64 inputs/32 stereo busses @ 96kHz (8 DSP cards)

Cat5 or Cat7 cables with Amphenol RJF connectors provide a convenient, highly robust connection between the Soundcraft Vi Series™ stageboxes and local rack enabling the mixing position to be located up to 100 metres from the stage. And in larger venues and installations, an optional Fibre Optic interface allows a run of up to 1.5 kilometres between the stagebox and the local rack.

A comprehensive provision of inputs and outputs can be patched to any channel input, direct output, bus output or insert point as required.

The local rack has 16 analogue line inputs, 3 analogue mic/line inputs, a talkback mic input (mounted on the control surface) and 8 pairs of AES/EBU inputs. Outputs include 16 analogue line, 8 pairs of AES/EBU, 3 LCR local monitor A line, 2 LR local monitor B line and TB line.
