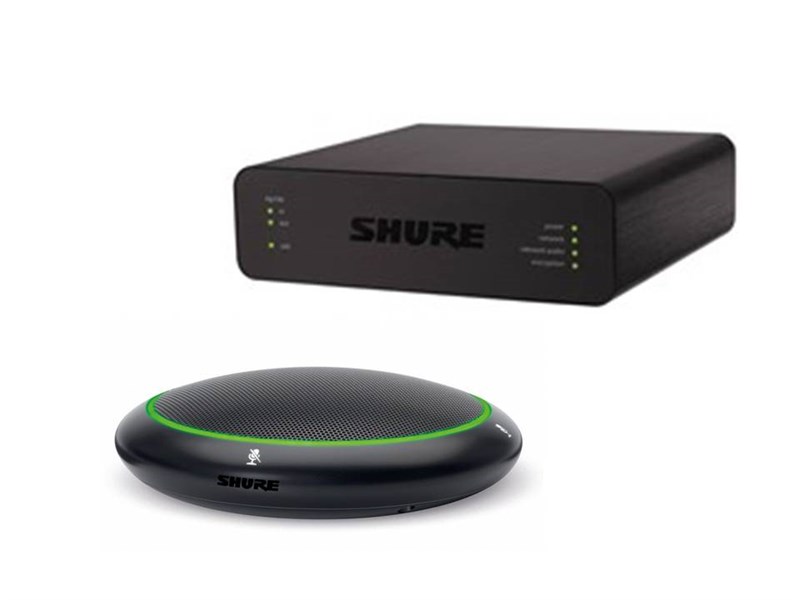

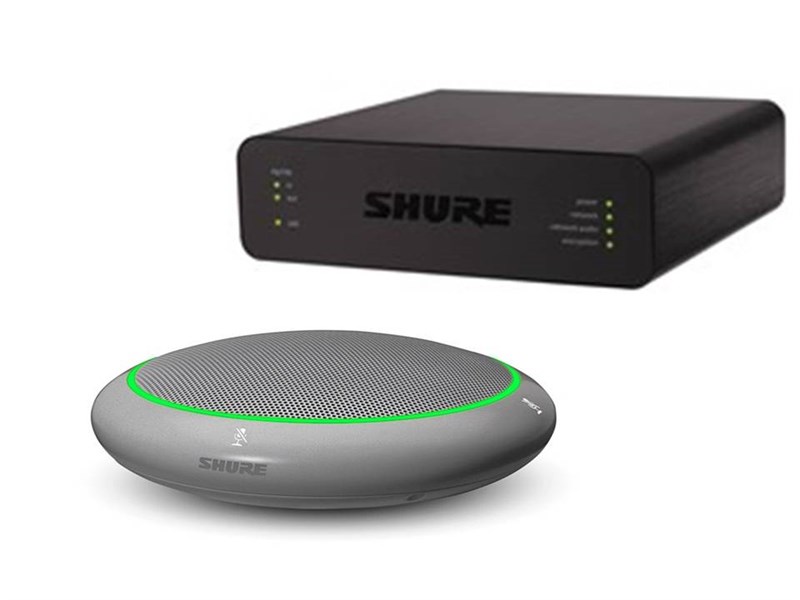

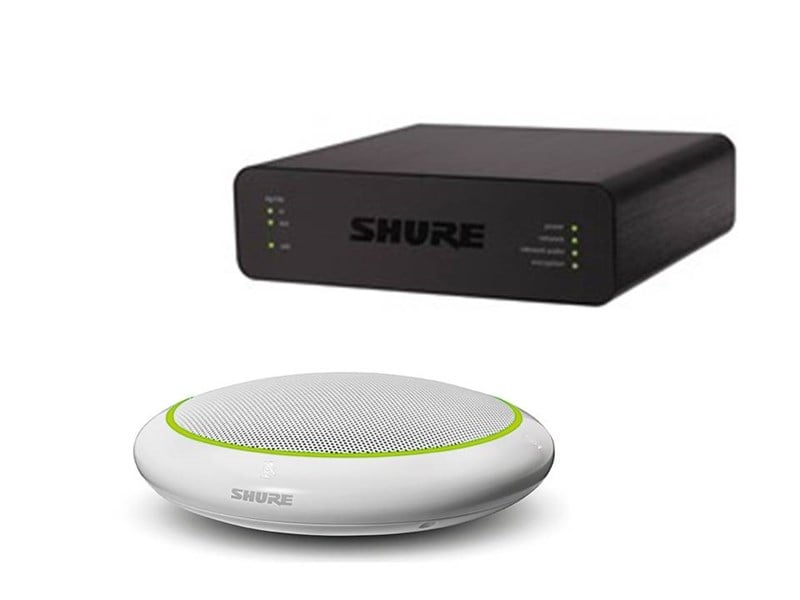

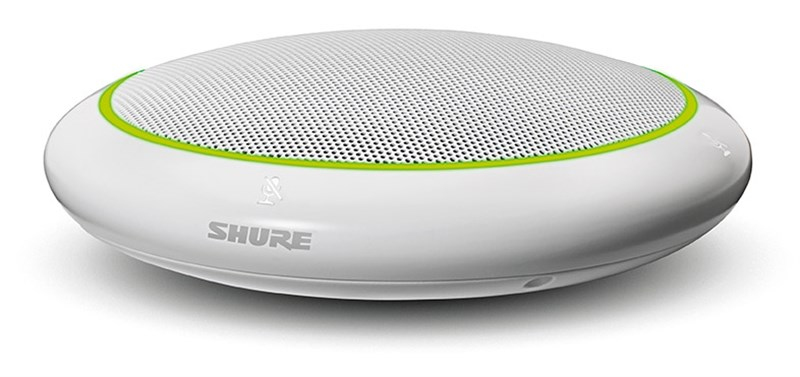

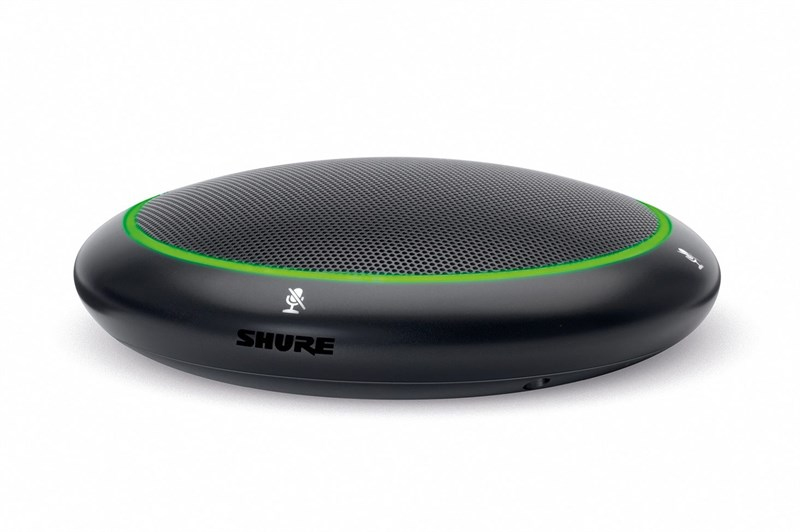

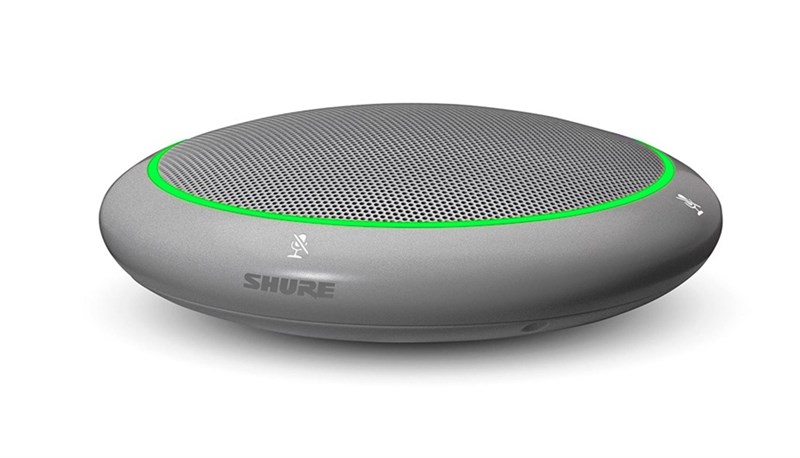

Shure MXA310 Table Array Mikrofonlar

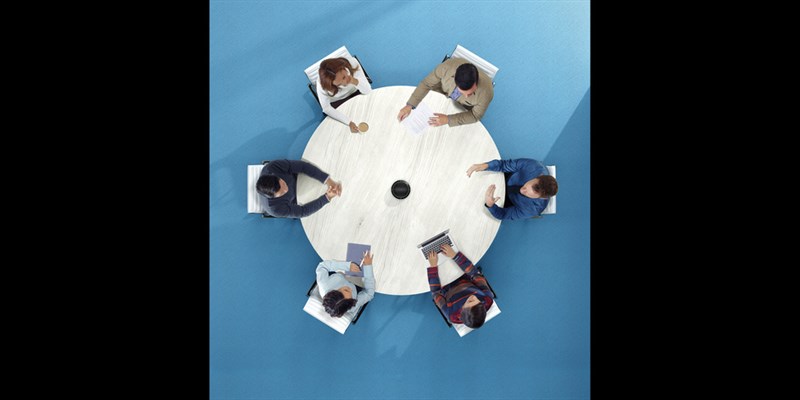

The Microflex® Advance™ Table Array is a premium networked array microphone that captures high quality audio and provides flexibility in varying A/V Conferencing environments including boardrooms, huddle rooms and multi-purpose spaces. Within the onboard Shure DSP Utilities, Shure’s proprietary Steerable Coverage™ technology deploys up to four discrete simultaneous coverage zones around a table and utilizes an innovative “toroid” ring-shaped pattern to reject unwanted artifacts from overhead such as HVAC or projector fans.
Programmable capacitive-touch mute switches ensure simple user operation. Configurable multi-colored LED light ring displays mute status and displays lighted segments during set-up to confirm coverage areas and auto mix settings. Integrates seamlessly with Dante™ Networked Audio, and third-party preset controllers including Crestron and AMX. All parameters are configured via a browser-based control software, with intuitive control of polar patterns, templates and presets for quick set up for any meeting space requirement.
Watch the MXA910 and MXA310 Demo Video
View the MXA310 Software GUI Demo
Features
Audio Capture / DSP
Up to four simultaneous polar patterns including the innovative “toroid” pattern, capturing audio from table level while rejecting unwanted overhead artifacts (additional patterns include Omnidirectional, Cardioid, Supercardioid, Hypercardioid, and Bidirectional—all steerable to any angle in 15 degree increments)
Shure DSP Utilities:
Steerable Coverage Technology
Automatic Mixing
4 Band C/S PEQ assignable to any one channel at a time
Software Control
Browser-based control software that features a simple yet smart interface showing templates and varying polar patterns for all device parameters
Stores 10 presets
Connectivity
Dante Audio Networking, standard PoE (class 0), and Control carried on single Ethernet cable
Control strings for third-party preset controllers including Crestron and AMX
Hardware / Installation
Configurable multi-color LED
Displays Mute and Unmute status in Ring, Segment or Automix in two colors (available in red, orange, yellow, green, blue, purple, white, pink)
Brightness controls (default, dim, disabled)
Mute Switch modes
Toggle, Push-to-Talk, Push-to-Mute, Disable
Backlit LED indicator of enabled/disabled mute switch
Generates external control signal to mute a downstream device or trigger camera presets

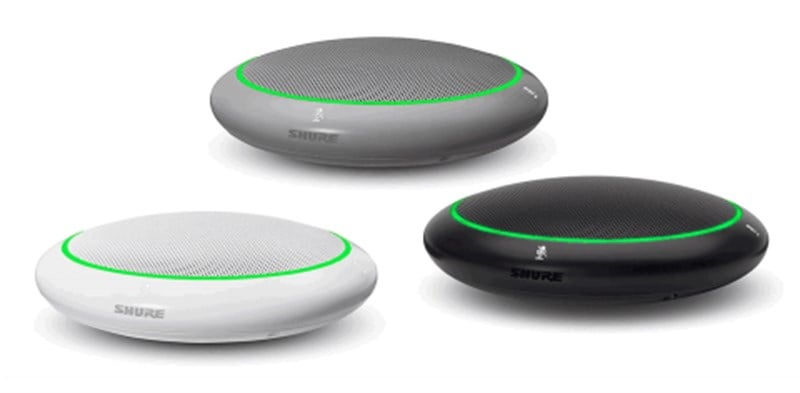

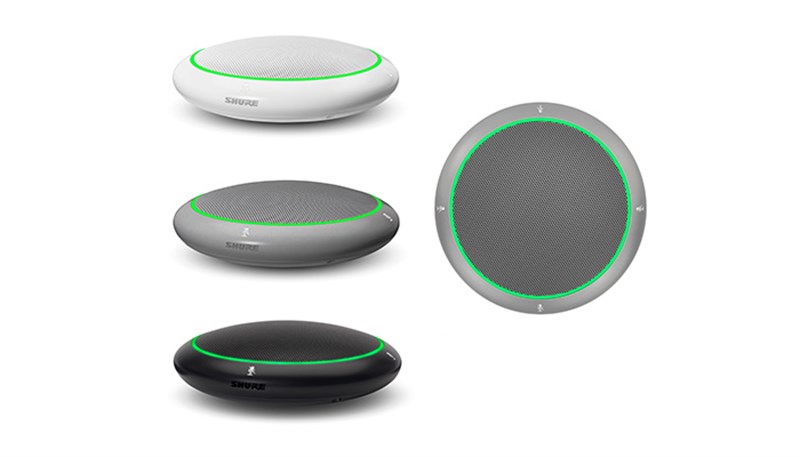

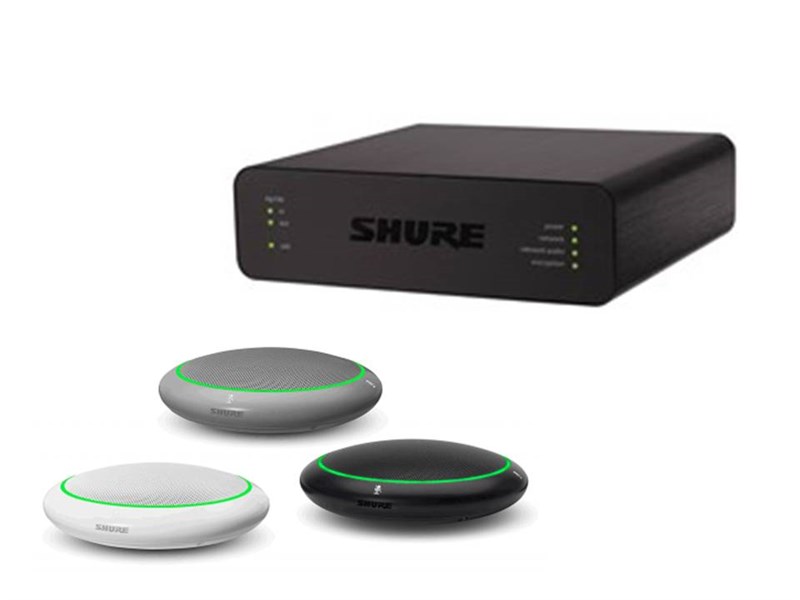

Available in white, black and aluminum
CommShield® RF Immunity (learn more in our blog post)
Cable exit along or through table allows for easy retrofitting of previous Shure MX396/MX395 boundary microphone installations
Device Reboot/Factory Reset Options
Two stage hardware reset: 4 second press resets network settings, 8 second press resets to factory default restoring all settings including device name and network details
