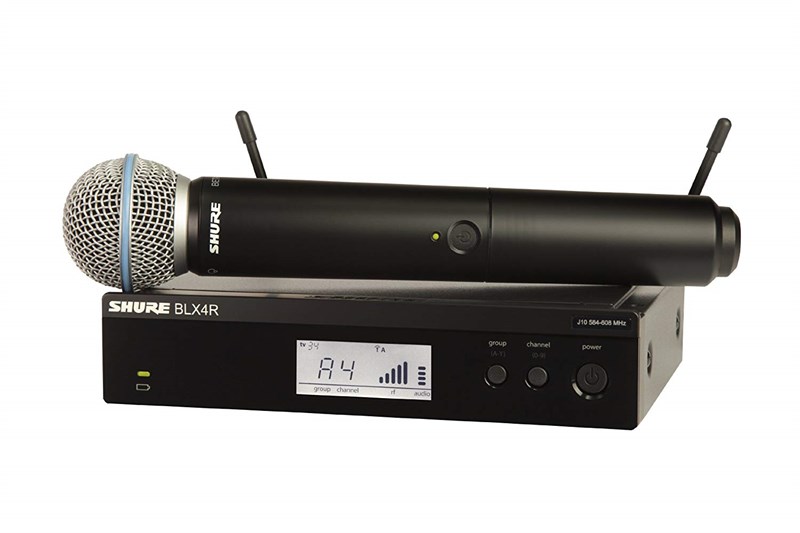

Shure BLX24RE/B58 Kablosuz El Mikrofon Seti
BLX2/B58 Handheld Wireless Transmitter with Beta 58A Microphone Cartridge (J10: 584 - 608 MHz)
Transmitter
-Audio Input Level 0 dB Gain: -20 dBV Maximum
-10 dB Gain: -10 dBV Maximum
-Gain Adjustment Range 10 dB
-RF Output 10 mW, Typical (Varies by Region)
-Power Requirement 2x LR6 AA Batteries, 1.5 V Alkaline
-Housing Molded ABS
-Dimensions (Ø x L) 2.1 x 8.8" (53 x 224 mm)
-Weight 7.7 oz (218 g)
Microphone
-Type Dynamic (Moving Coil)
-Frequency Response 50 Hz to 16 kHz
-Polar Pattern Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
-Output Level Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPL
Packaging Info
-Box Dimensions (LxWxH) 11.2 x 5.3 x 3.2"

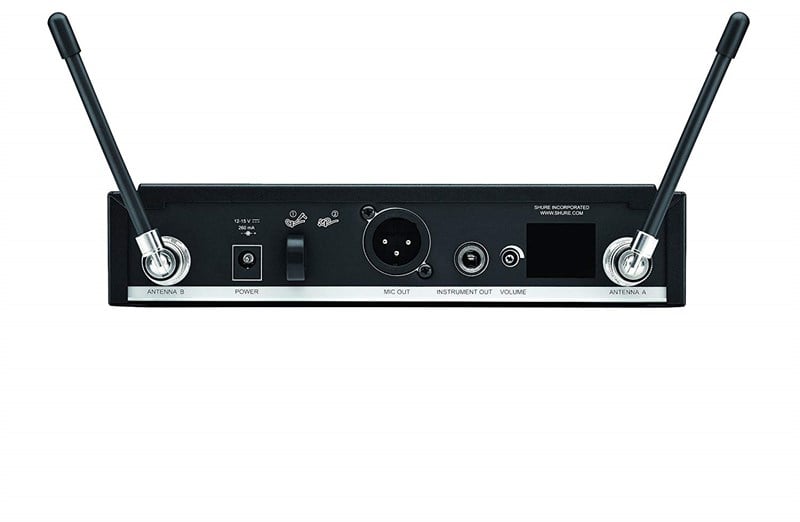

-BLX4R Single-Channel Wireless Rackmount Receiver (J10: 584 - 608 MHz)
-Output 1x XLR Output
-1x 1/4" (6.35 mm) Output
-Output Impedance XLR: 200 ohms
-1/4": 50 ohms
-Audio Output Level XLR Connector: -20.5 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
-1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
-RF Sensitivity -105 dBm for 12 dB SINAD, Typical
-Image Rejection >50 dB, Typical
-Housing Molded ABS, Steel
-Power Requirement 12 to 15 VDC @ 260 mA, Supplied by External Power Supply (Tip Positive)
-Dimensions (H x W x D) 2.0 x 7.8 x 6.4" (50 x 198 x 163 mm)
-Weight 2.2 lb (998 g)
