Shure BLX1288E/SM58 Kablosuz Enstruman + Vokal Mikrofonu
Shure BLX1288E / SM58 - Two-channel microphone / instrumental radio system, set: 2-channel BLX88 receiver, BLX1 body transmitter, BLX2 dynamic cardioid radio microphone with SM58 capsule, WA302 instrument cable, accessories included.

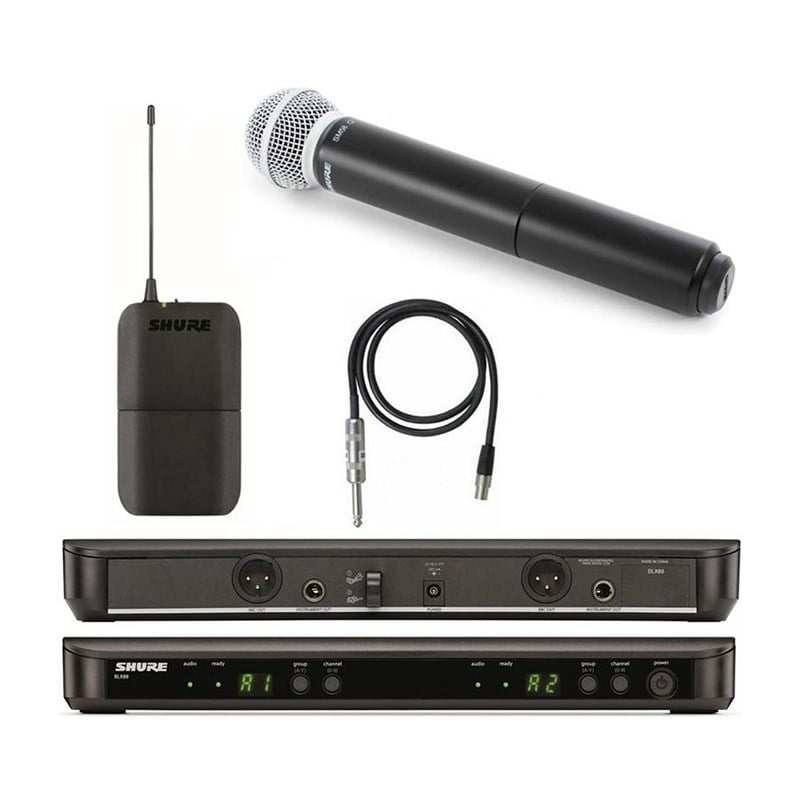

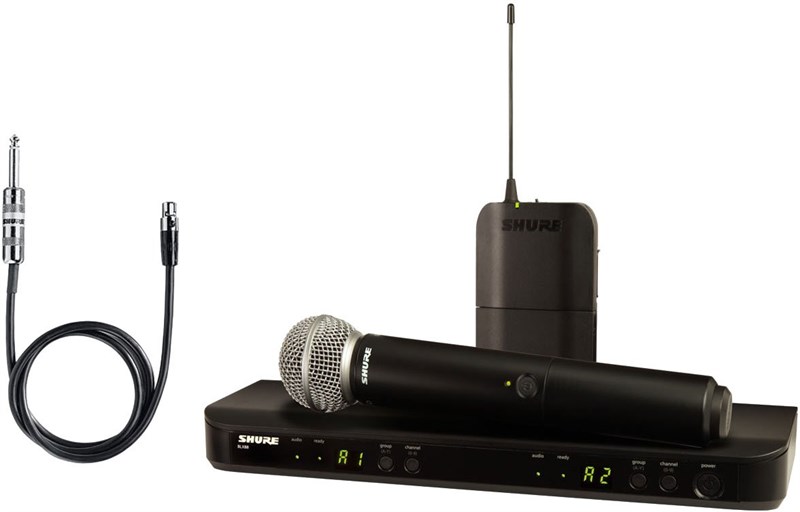

The Shure BLX1288E / SM58 dual -channel combined wireless system includes a BLX88 dual-channel wireless receiver, a BLX1 bodypack transmitter, a BLX2 handheld transmitter with an SM58 microphone cap, a WA302 instrument cable, and accessories. The system can be tuned to different frequency ranges.
Both the BXL1 bodypack transmitter and the BLX2 handheld transmitter have a range of 100 m, with a BLX88 receiver. Each of them is powered by 2 AA batteries, which can provide up to 14 hours of operation. The BLX88 receiver is equipped with microprocessor-based antenna antenna diversity, which helps prevent interference and signal dropout. Its one-touch QuickScan feature detects frequency without interference and sets up a channel for quick tuning.
The Shure BLX1288E / SM58 set is suitable for both vocalists and guitarists thanks to the included WA302 instrument cable.
Complete set:
Receiver
BLX88 - Belted BLX1 transmitter - Manual BLX2
transmitter -
Microphone capsule SM58 -
WA302 instrument cable -
Microphone holder -
Stand adapter -
4 AA batteries -
Power supply
The Shure BLX1288E / SM58 two-channel microphone / instrumental radio system can be purchased in such frequency ranges:
-518-542 MHz (H8E)
-614-638 MHz (K14)
-606-630 MHz (K3E)
-662-686 MHz (M17)
-742 -766 MHz (Q25)
-794-806 MHz (R12)
-823-832 MHz (S8)
-863-865 MHz (T11)
Characteristics BLX1288E Shure / SM58:
-Working Range: 91 m (300 ft) Line of Sight (Actual Primary range depends on RF signal absorption, reflection and interference)
-Audio Frequency Response: 50 Hz Note 15.000 to: Dependent on type microphone
- Total Harmonic Distortion, Ref. ± 33 kHz deviation with 1 kHz tone: 0.5%, typical
-Dynamic Range: 100 dB, A-weighted, typical
-Operating Temperature: -18 ° C (0 ° F) to 57 ° C (135 ° F) Battery characteristics may
Limit this range -Polarity: WA302 phone plug inch output
BLX1 Bodypack Transmitter:
Audio Input Level:
-gain max: -16 dBV maximum
-min (0 dB): +10 dBV maximum
-Gain Adjustment Range: 26 dB
-Input Impedance: 1 MΩ
-RF Transmitter Output: 10 mW, typical varies by region
-Housing: Molded ABS
-Power Requirements: 2 AA batteries LR6, 1.5 V, alkaline
-Battery Life: up to 14 hours (alkaline)
Dimensions: 110 mm x 64 mm x 21 mm (H x W x D)
Weight: 75 g (2.6 oz.), Without batteries
BLX88 Dual Wireless Receiver:
Output Impedance:
-XLR connector: 200 Ω
-6.35 mm (1/4 ”) connector: 50 Ω
Audio Output Level Ref. ± 33 kHz deviation with 1 kHz tone:
-XLR connector: –27 dBV (into 100 kΩ load)
-6.35 mm (1/4 ”) connector: –13 dBV (into 100 kΩ load)
-RF Sensitivity: -105 dBm for 12 dB SINAD, typical
-Image Rejection:> 50 dB, typical
-Housing: Molded ABS
-Power Requirements: 12–15 V DC @ 160 mA (BLX88, 320 mA), supplied by external power supply (tip positive)
Dimensions: 40 mm X 388 mm X 116 mm (H x W x D)
Weight: 429 g (15.1 oz.)
BLX2 Handheld Transmitter:
Audio Input Level gain:
0dB: -20 dBV maximum
-10dB: -10 dBV maximum
-Gain Adjustment Range: 10 dB
-RF Transmitter Output: 10 mW, typical varies by region
-Housing: Molded ABS
-Power Requirements: 2 LR6 AA batteries, 1.5 V, alkaline
-Battery Life: up to 14 hours (alkaline)
Dimensions: 224 mm X 53 mm dia. (8 7/8 X 2 1/8 in.)
Weight: 218 g (7.7 oz.) (Without batteries)
SM58 Capsule:
-Type: Dynamic
-Frequency Response: 50 to 15,000 Hz
-Polar Pattern: Cardioid
-Sensitivity (at 1,000 Hz Open Circuit Voltage): –54.5 dBV / Pa (1.85 mV), 1 Pa = 94 dB SPL
-Impedance: Rated impedance is 150Ω (Polynomial resistance)
: Positive pressure diaphragm
