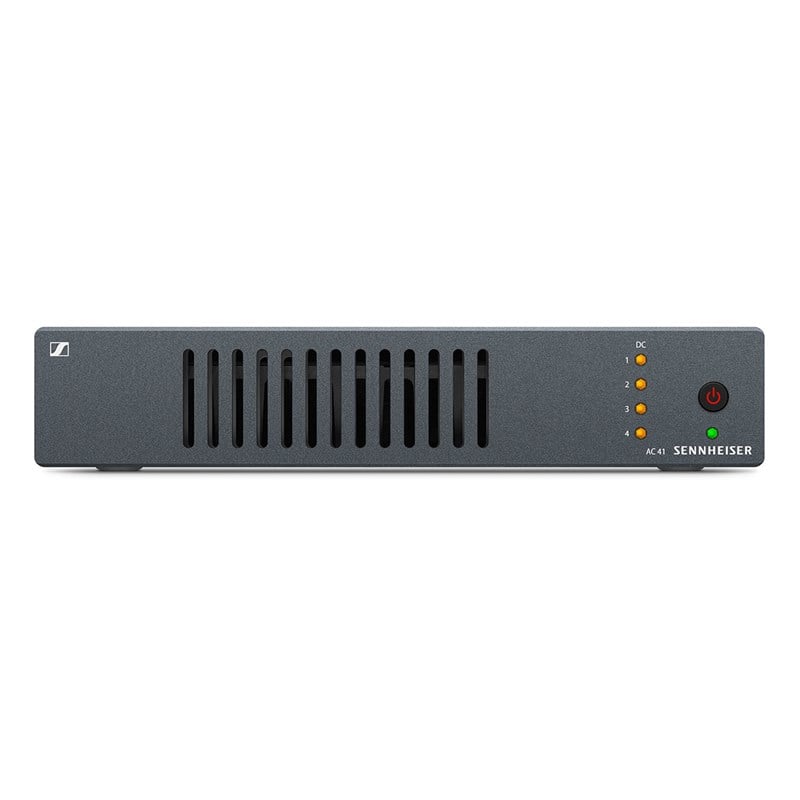

Sennheiser AC-41 Kablosuz Mikrofonlar Aktif Anten Birleştiricisi
Sennheiser AC-41 Kablosuz Mikrofonlar Aktif Anten Birleştiricisi
Sennheiser AC-41 Kablosuz Mikrofonlar Aktif Anten Birleştiricisi

Sennheiser AC 41 Kablosuz Mikrofon Setleri Aktif Anten Birleştiricisi

Marka : Sennheiser
İndirim Oranı : %25 İndirim
Fiyat : $1,295.17(KDV Dahil)
İndirimli : $971.38(KDV Dahil)

Active antenna combiner for evolution wireless G4 systems



Sennheiser AC 41 Kablosuz Mikrofon Setleri Aktif Anten Birleştiricisi



Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna.
Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.





Up to 4 wireless stereo transmitters using one antenna
Power supply via BNC cables ensures efficient powering, no need for additional power supply units for the SR IEM G4
Compatible with G4 and G3 systems

Frequency range: 470 - 870 MHz/470 - 608 MHz
Impedance: 50 Ω
Dimensions: 212 x 168 x 43 mm
Weight: approx. 1470 g
Power consumption: max. 3.4 A (with connected transmitters)
Storage temperature: -20 °C to +70 °C (-4 °F to 158 °F)
Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
Power supply: 13.8 V DC (with tabletop power supply unit NT 3-1)11.4 V DC (protected against reverse supply), 350 mA
RF input: max. 30 mW per input
Transmission loss: 0 dB (±1 dB)
Operating relative humidity: 5 to 95 %



Kullanım Kılavuzu
