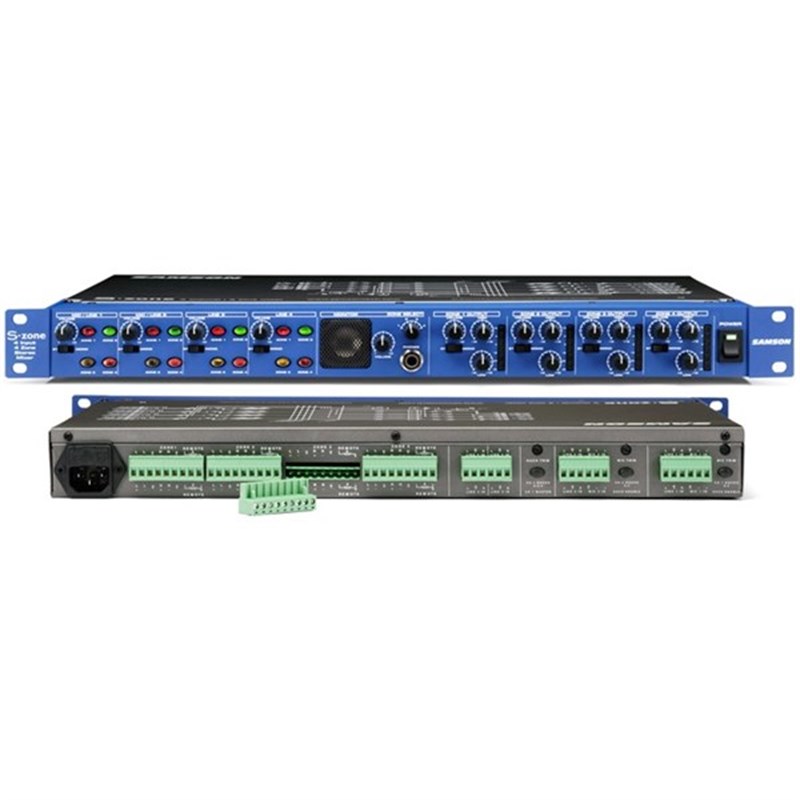

Samson SZONE 4-Kanal 4-Bölge Rack Tipi Stereo Mikser
4-channel/4-zone stereo mixer
Two Mic/Stereo Line inputs with ducking
Two Stereo CD/Line inputs
Onboard Speaker and Headphone monitoring
Euroblock output connectors
Remote Volume Control
Total # Of Inputs 4 - Balanced via Euroblock connector, see manual for wiring configuration
Mic/Line Inputs 2 - Mic / Stereo Inputs via Euroblock connector, see manual for wiring configuration
Stereo Line Inputs 2 - Stereo Inputs RCA Type via Euroblock connector, see manual for wiring configuration
In-Line Inputs/Returns No
AUX Sends No
AUX Returns No
Inserts No
BUS (Group) Outputs 4 - Balanced
2 Trk Master I/O No
ALT I/O No
Monitor Outputs 1/4" Phone - Headphone Output
Internal Speaker
EQ Section Tone Controls:
Low: +/- 15dB @ 100Hz
High: +/- 15dB @ 10kHz
Solo/Mute Zone 1 - 4 assignment controls
Channel Level Control Rotary POTS
Zone Input and Output Controls
Trim/Gain Control No
Phantom Power +12 VDC
Metering 7 Segment Peak LEDs (Zone Outputs 1 through 4)
Frequency Response not specified by manufacturer
Dynamic Range not specified by manufacturer
Signal-to-Noise Ratio 96 dB
Total Harmonic Distortion (THD) <. 02% CMRR: >52 dB (Mic)
Power Supply USA/Canada ~ 120V AC, 60Hz
Fuse: 100-120V AC; 250 mA (slow-blow)
Power Consumption: 5 Watts
Power Inlet: Standard IEC Receptacle with Fuse
Dimensions 19 x 7.5 x 1.75" (482 x 190 x 44mm) (WxDxH)
Weight 5.1 lb. (2.31 kg)
Packaging Info
Package Weight 9.5 lb
Box Dimensions (LxWxH) 21.0 x 13.8 x 3.65"
