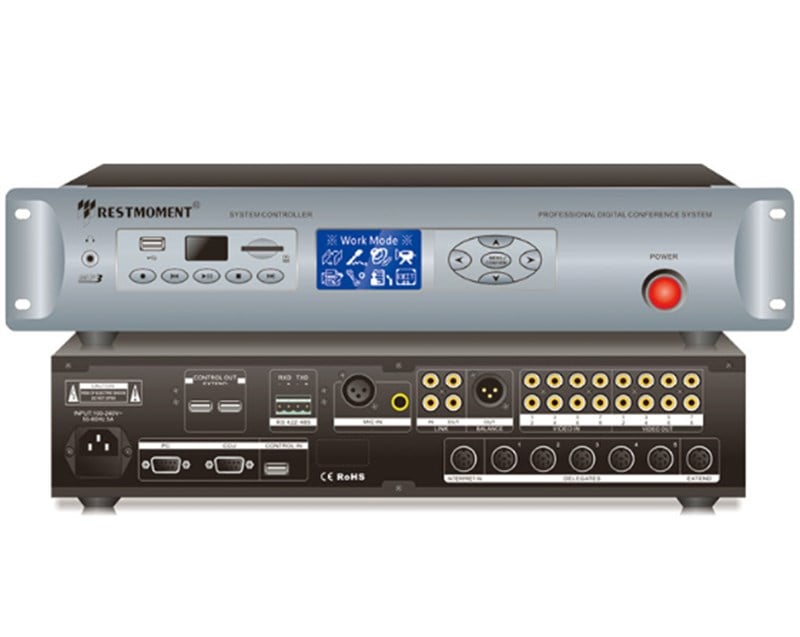

Restmoment original full digital conference technique, compliant to IEC 60914 international standard and GBT15381-94 national standard..
Adopt high speed RISC embedded hardware structure, more reliable, faster
True full digital conference technique; digital signal for controlling and transmission; professional 6 pin cable for connecting; remote transmission won’t influence on sound quality.
Distance between equipments could reach at 150m
Sampling frequency reaches 48K; Frequency response is 20Hz – 20KHz which is close to CD sound quality
It controls this integrated system through navigation key board of the panel.
2.8 inch LCD, Chinese/English menu display, can order any language.
Self restraint return function. System can adjust input/output signal.
User-defined ID number to aviod the colliding of ID address.
System self-checking function which can check system list and working status. Also it can position the fault.
System support 150 chairman units, could specify one as chief chairman.
Strong anti-interference from mobile phone;
Support”PnP” to keep system’s safty and stability.
Built-in MP3 recorder. Users can record the whole conference audio by USB or SD card. It supports replay.
Support 128G flash memory and 2000 hours audio content.
Once the external audio source enter into MP3 recorder, the system will record it automatically.
Memory devices exchanging function. User can change the memory device during recording.
And the audio content will not be lost. Recorded content can be played or replayed.
Conference monitoring function which can control the conference process dynamically.
Support conference rooms splitting/combining.
Built-in 8X8 video matrix switching.
2 RS-232 ports which can connect PC and central control system.
Support video tracking function. It can control cameras offline to setup presetting bit.
It has RS-422, RS-485 and RS-232(need convertor) video control modes.
It has emergency broadcast signal port.
Built-in balance and unbalance audio input/output ports.
It has ports to connect interpretation consoles directly, max 64 channel interpretation.
5 MIC management modes
Limited mode, set the number of delegates permitted to speak at the same time (1/2/3/4)
FIFO mode, microphone key control with override of the active microphones
Apply mode, microphone key with request-to-speak registration
Voice-activated microphones
Free discussion mode
5 unit output channels and support 100pcs speaking units. Working with conference expandable main unit, the whole system can contain 65335 units
System has “Line hand in hand connection”, “Y type connection”, “distribution box connection”, “audio box connection” and “ring type hand in hand connection”
System has “Conference” and “Speech” modes.
It adopts RS-232 protoco connection between system controller and PC.
The transmission is safe and stable.
Aluminium alloy case, antistatic. It can prevent 8000V static.
The system passes ISO9001:2000 certification and has ROHS, CE, FCC, CCC certification.
Adopts 2U international standard design which can be installed in 19inch case.
Built-in international common use power and stabilized system.
Working with conference management software to achieve more increment functions
|
Working power: AC100~ 120V, 8A / AC220 ~240V, 4A
Working consumption: Depends on the quantity of connecting unit: Single unit 25W, Maximum 400w
Display: 2.8 inch screen
Menu: Chinese/English or custom made
Capacity of each way: 20pcs
Unit capacity: 100 multi-function units, expandable
Transmission distance: 150M
Voltage of unit output port: 24V
Audio output
RCA X 2 2V p-p
6.3mm x 1 -50Db
XLR x 1 -50dB
Audio input
RCA X 2 2V p-p
XLR X 1 -50dB
Output impedance: 47KΩ
Frequency response: 20 ~ 20KHz
SNR: 102Db
Dynamic range: 106Db
Total harmonic distortion: ﹤0.05%
Channel separation: 102dB
Channels quantity: 8/16/32/64CH
Unit ID number: User defined
Quantity of possible chairman units: 150pcs
Serial port control: 2 serial ports which can connect PC or programmable central control system
Working modes: 5 modes
Quantity of turnning on units: 1/2/3/4/5/6/or all
Speaking limit function: √
Video control type: RS-422/RS-485
6pin mount: 6 pin DIN
Balling unit capacity: 8 pcs
Video matrix: 8x8 channel
Quantity of panorama: 8X4 channel can setup switching time & order
Video output level: RCA X 41.08V p-p
Video output impedance: 75Ω
Video bandwidth(-3dB): 30MHz
Recording function: U disk or SD card
Color: Dark grey
Net weight: 8KG
Dimension: 432L x 90H x 350W mm
Installation: Suitable for 19 inch standard stand
|
