Restmoment original full digital conference technique, compliant to IEC60914.
Can control the conference via the navigation keyboard of the panel.
Adopt high speed RISC embedded hardware structure, more reliable, faster.
Full digital audio technique, close to CD sound quality, Distance between two units could reach at 150m.
2.8inch LCD, display Chinese & English.
system checking auto function, can adjust ID No.
Built in input、output digital volume adjustment.
Built in 8*8 video matrix switch.
Built in 8*4 Panorama video switch.
video tracing with function: camera parameter, Operation options、video matrix and MIC video setup.
System support 120 chairman units, could specify one as executive chairman.
Support“PnP” .
2 pcs RS-232 serial port, connect to PC and central control.
RS-422 & RX-485 video control mode. Could switch o RS-232.
Built in balance and non-balance audio input, output connector.
MIC management mode:
Quantity limited mode
FIFO mode
request speech mode
Voice activating mode
free speech mode
4 line unit output. Every line with 20 units. At most 80 units.
System capacity can be extended by connecting with the extension unit. The max capacity is 65335 units.
System support hand-in-hand connection, Y type connection, Junction box and round type hand-in hand connection.
When single MIC turn off, trace former unit automatically.
Protocols share, compatible with all the pop camera.
Adapt of aluminum cover, hazardous materials, passed RoHS.
2U standard design, could put it in 19 inch rack cabinet.
Built in Universal power supply and Voltage regulation system.
In combination with the corresponding software modules, more conference function.
|

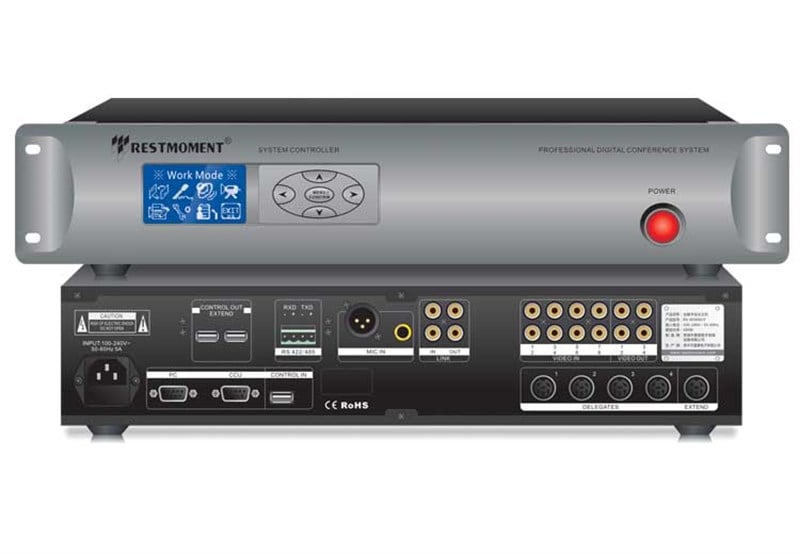

mode: RX-M3000/V
Working power: AC100~ 120V, 8A / AC220 ~240V, 4A
Working consumption: Depends on the quantity of connecting unit: Single unit 25W, Maximum 400w
Display: 2.8 inch screen
Menu: Chinese/English or custom made
Capacity of each way: 20pcs
Unit capacity: 80 multi-function units, expandable
Transmission distance: 150M
Voltage of unit output port: 24V
Audio output: RCA X 2 2V p-p 6.3mm x 1 -50Db XLR x 1 -50dB
Audio input: RCA X 2 2V p-p
Output impedance: 47KΩ
Frequency response: 20 ~ 20KHz
SNR: 102Db
Dynamic range: 106Db
Total harmonic distortion: ﹤0.05%
Channel separation: 102dB
Unit ID number: User defined
Quantity of possible chairman units: 150pcs
Serial port control: 2 serial ports which can connect PC or programmable central control system
Working modes: 5 modes
Quantity of turnning on units: 1/2/3/4/5/6/or all
Speaking limit function: YES
Video control type: RS-422/RS-485
6pin mount: 6 pin DIN
Balling unit capacity: 8 pcs
Video matrix: 8x4 channel
Quantity of panorama: 8X4 channel can setup switching time & order
Video output level: RCA X 41.08V p-p
Video output impedance: 75Ω
Video bandwidth(-3dB): 30MHz
Voting function: NO
Color: Dark grey
Net weight: 8KG
Dimension: 432L x 90H x 350W mm
Installation: Suitable for 19 inch standard stand
|
