Restmoment original full digital conference technique, compliant to IEC60914.

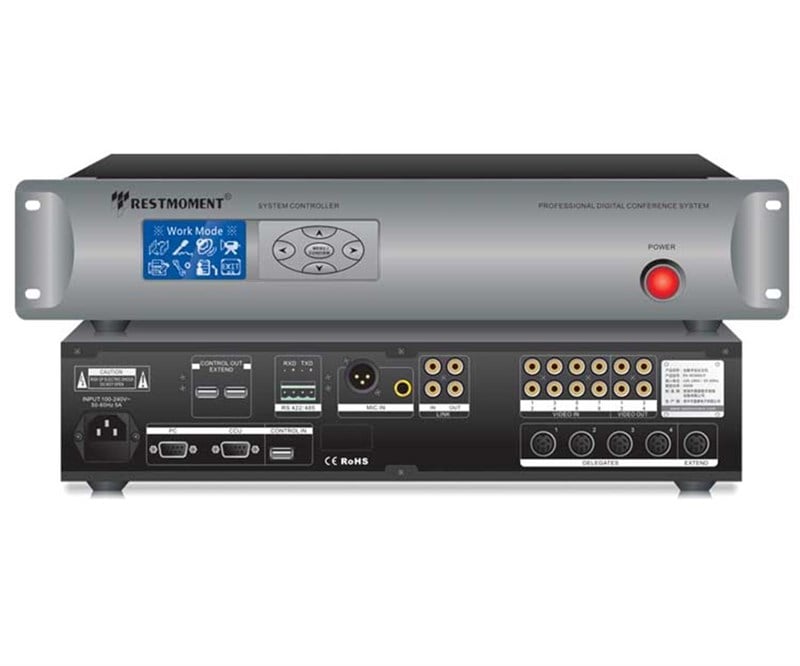

Restmoment RX-M3000 Dijital Konferans Sistemi Merkez Ünitesi
Full digital main unit is the core component of ADCS system. It’s the important intercommunication factor of conference unit and software. Can control speech, via the navigation keyboard of the panel, and LCD.
Restmoment original full digital conference technique, compliant to IEC60914. Can control the conference via the navigation keyboard of the panel. Adopt high speed RISC embedded hardware structure, more reliable, faster. Full digital audio technique, close to CD sound quality, Distance between two units could reach at 150m. 2.8inch LCD, display Chinese & English. system checking auto function, can adjust ID No. Built in input、output digital volume adjustment. System support 120 chairman units, could specify one as executive chairman. Support“PnP” . 2 pcs RS-232 serial port, connect to PC and central control. Built in balance and non-balance audio input、output connector. MIC management mode: Quantity limited mode FIFO mode request speech mode Voice activating mode free speech mode 4 line unit output. Every line with 20 units. At most 80 units. System capacity can be extended by connecting with the extension unit. The max capacity is 65335 units. System support hand-in-hand connection, Y type connection, Junction box and round type hand-in hand connection. When single MIC turn off, trace former unit automatically. Protocols share, compatible with all the pop camera. Adapt of aluminum cover, hazardous materials, passed RoHS. 2U standard design, could put it in 19 inch rack cabinet. Built in Universal power supply and Voltage regulation system. In combination with the corresponding software modules, more conference function.
mode: RX-M3000 Working power: AC100~ 120V, 8A / AC220 ~240V, 4A Working consumption: Depends on the quantity of connecting unit: Single unit 25W, Maximum 400w Display: 2.8 inch screen Menu: Chinese/English or custom made Capacity of each way: 20pcs Unit capacity: 80 multi-function units, expandable Transmission distance: 150M Voltage of unit output port: 24V Audio output: RCA X 2 2V p-p 6.3mm x 1 -50Db XLR x 1 -50dB Audio input: RCA X 2 2V p-p Output impedance: 47KΩ Frequency response: 20 ~ 20KHz SNR: 102Db Dynamic range: 106Db Total harmonic distortion: ﹤0.05% Channel separation: 102dB Unit ID number: User defined Quantity of possible chairman units: 150pcs Serial port control: 2 serial ports which can connect PC or programmable central control system Working modes: 5 modes Quantity of turnning on units: 1/2/3/4/5/6/or all Speaking limit function: YES 6pin mount: 6 pin DIN Balling unit capacity: 8 pcs Voting function: NO Color: Dark grey Net weight: 8KG Dimension: 432L x 90H x 350W mm Installation: Suitable for 19 inch standard stand
