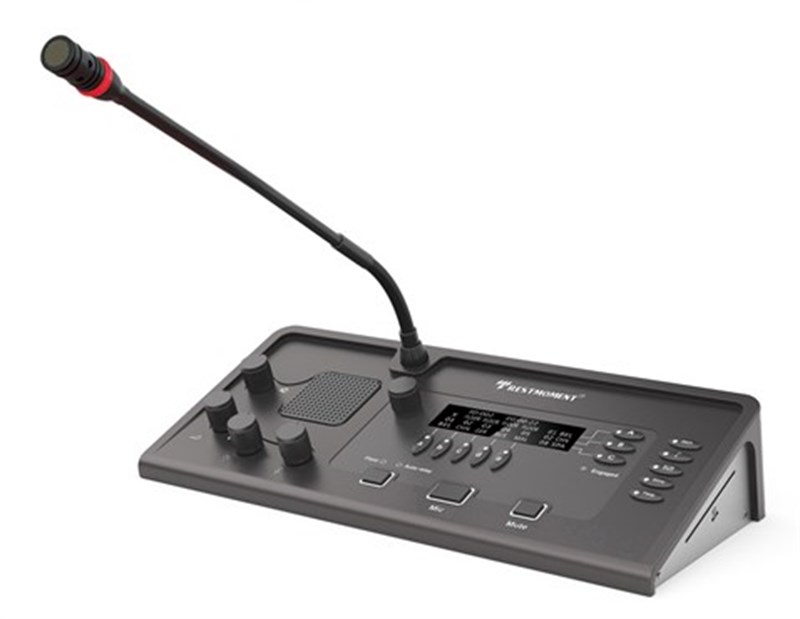

Restmoment RX-E9216 Led Ekranlı 16 Dil KapasiteliTercüman Ünitesi

Restmoment original full digital conference technique, compliant to IEC 60914 international standard.
256X 64 LCD display. It can display conference information and working status real time.
Aluminium alloy appearance.
This system adopts 6PIN hand by hand connection.
Full digital audio transmission technique; Point to point connection; Remote transmission won’t influence on sound quality. Distance between equipments could reach at 150m.
Adopt full digital audio codec technology and digital audio compression technology. The sound is near CD quality after infrared transmission. Listeners have comfortable, natural and high quality sound finishing.
Sampling frequency reaches 48K; Frequency response of all 64 channel can reach 30Hz – 20KHz.
8/16/32/64 (including floor channel) multi-language interpretation function and monitoring function. Working with channel selector or infrared system to extend the audience.
Hand by hand in line connection between consoles. One interpretation controller can connect 80pcs consoles max. If one console has problem, other consoles can work well in the line.
Built-in high-pass filter which can filter out the unnecessary low frequency component.
Same channel interlock function. And it has channel occupancy light to make sure the channel’s uniqueness.
Second translation function. If the interpretor can not understand floor language, he can listen to other interpretor’s sound to do second translation.
Cough elimination function. Interpretor can turn off microphone shortly to prevent cough sound to conference hall.
Speaking speed remind function. Interpretor can press key to remind speaker.
Help function. Interpretor can press HELP to call operator.Preset language name either by the main unit or the application software.
Preset 5 input language channel, and preset shortcut keys(a/b/c/d/e)
Channel selector knob to choose input language channel easily.
Preset 3 interpretation audio source output channel and shortcut keys(A/B/C) with channel occupation light.
Microphone gain and EQ adjustable individually.
Software can switch A/B/C output channel and turn off the console.
Built-in IC Card reader.
Built-in loudspeaker with volume control. If all microphones in the same booth are off and “FLOOR” indicator is on, the loudspeaker will play floor language.
Allows an interpreter to override another interpreter in same booth supplying the same interpretation channel.
Maximum 6 interpretation units can be installed in each booth.
System has memory and playing back function.
ON/OFF key for key tone.
Built-in multi-channel intercom facility.
System has arbitrary distribution ID address. Easy to install.
Connected to interpretation controller individually. Or connected to system controller with other speaking units.
Earphone output jack for headset earphone; Microphone input jack for external microphone.
Microphone pole with speaking indicator light.
Removable microphone pole, easy to be transported.
Table top or embedded installation.

Channel No: 16 CH
System capacity: Depends on system controller, ≤65535pcs, single controller ≤80pcs
Frequency respond: 30-20KHz(Human voice golden Frequency respond)
Display: 256X 64 LCD display
MIC type: Capacitive
sensitivity of MIC: -46Db
SNR: 102Db
Dynamic Range: 106Db
SNR: 102Db
Dynamic range: 106Db
Resolution of channels: 102Db
Total harmonic distortion: ﹤0.45%
Working power: 24DC,-5%
Working current: 50ma, ±5%
Maximum power: 3W
Control type: RS-485
Earphone output: 16Ω, 250mW
Connection mode: Hand in Hand connection
Mount: Big 6 pin DIN (or Big 8 pin DIN)
Color: Grey , Silver (Custom-made)
Dimension: 295(L) x 126(W)x 57(H) mm
Installation: Tabletop
