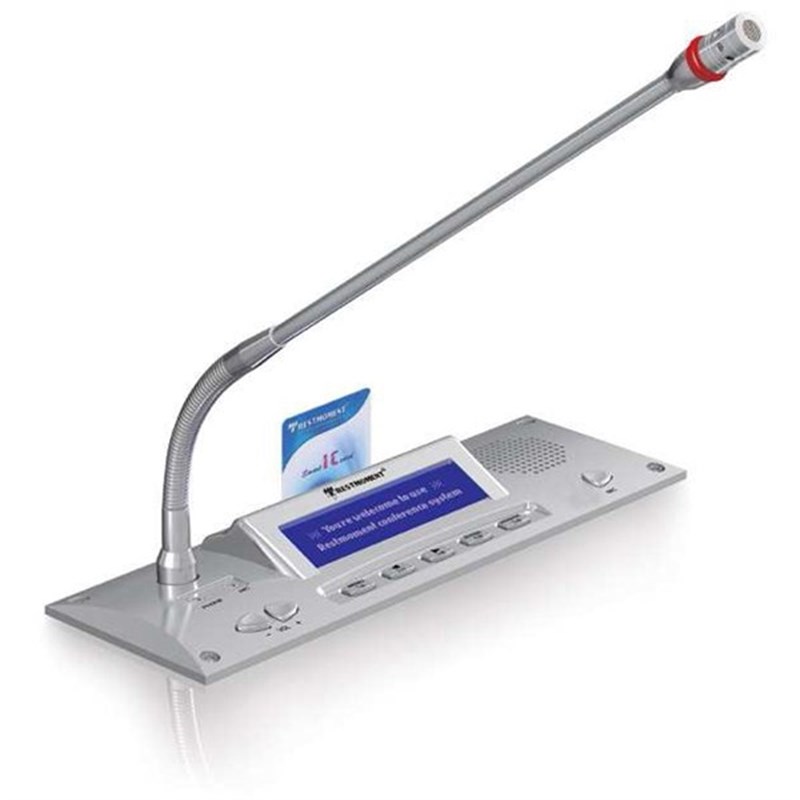

Restmoment original full digital conference technique, compliant to IEC 60914 international standard.
All digital audio transmission technique, point to point connection mode, remote transmission won’t influence on sound quality.
Distance between equipments could reach at 150m.
160*32 LCD, display conference info.
Built in IC card reader, support IC card sign-in, delegates degree identifying, IC card key and set menu language etc.
Streamline design, mode, elegance, nobleness and dantesque.
Hand in hand connection way.
Support“PnP”.
Strong anti-interference from mobile phone; Anti-interference from external driving source.
Support key sign-in and making up sign-in function. Sign-in can be real-time displayed dynamically.
Built in high fidelity speaker, when turn on MIC or connect with earphone, speaker is mute automatically.
Each unit has arbitrary distribution ID address, convenience for installation and avioding ID address repeating.
Double stereo earphone output, could adjust sound volume.
Units can receive/send and read short messages.
Cooperated with video controller and camera, have video tracing function.
5 work modes
•Limited mode
•FIFO mode
•Apply mode
•Voice activating mode
•Free discussion mode
Chairman unit have Priority, could switch off or mute the speaking units.
System support 150 chairman units, could specify one as executive chairman, carry out function as follow:
•Switch work mode
•Activate sign-in, voting
•Receive or reject application speech
•Switch off appointed MIC
•Switch off the earliest MIC
•Switch off all MICS
In combination with the corresponding software modules, conference main unit and chairman can be implemented:
•Parliamentary: agree/oppose/abstain, Pass-rate setup
•Multi choice/Opinion poll:1/2/3/4/5
•Audience response/Rating:--/-/0/+/++, could setup content
•Score: 0---100, practically participant person as average fraction
Working with management software to achieve more functions.
|
Mode: RX-C2200 series
Capacity: Depends on system controller, ≦65535
Frequency respond: 30-20KHz(Human voice golden Frequency respond)
MIC type: Capacitive
sensitivity of MIC: -47dB
SNR: 102dB
Dynamic Range: 106dB
Resolution of channels: 102dB
Total harmonic distortion: <0.45%
LCD: 160*32 LCD
Transmission distance: 150M
Working power: 24DC,-5%
Working current: 50ma, ±5%
Maximum power: 2W
Control type: RS-485
Speaker: One
Internal communications: Receive/send mess
Earphone output: 16Ω, 250mW/32Ω,125mW
Connection mode: hand in hand
Mount: Big 6 pin DIN
Sign-in way: Key or IC card
Unit ID: User defined
Chairman unit Qty: 150pcs
Turn on MIC Qty: 1/2/3/4/5 or all
Speech limited time: yes
Voting: 5 keys voting
IC Card: yes
Color: Black, Silver (Custom-made)
Installation: Embedded
|
