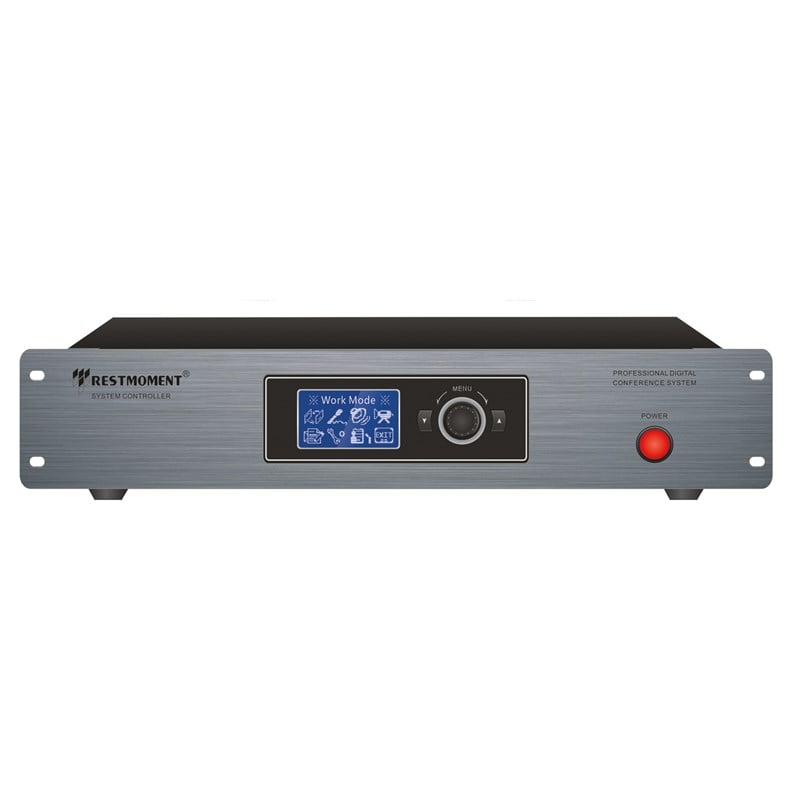

Restmoment RX-6640/V3.1 Dijital Konferans Sistemi Merkez Ünitesi

Restmoment original full digital conference technique, compliant to IEC 60914 international standard and GBT15381-94 national standard..
Adopt high speed RISC embedded hardware structure, more reliable, faster
True full digital conference technique; digital signal for controlling and transmission; professional 6 pin cable for connecting; remote transmission won’t influence on sound quality. Distance between equipments could reach at 150m
Sampling frequency reaches 48K; Frequency response is 20Hz – 20KHz which is close to CD sound quality
Special wheel type operation. It can control all conference functions by knob control panel.
2.8 inch LCD, Chinese/English menu display, can order any language.
Self restraint return function. System can adjust input/output signal.
User-defined ID number to aviod the colliding of ID address.
System self-checking function which can check system list and working status. Also it can position the fault.
System support 150 chairman units, could specify one as chief chairman.
Strong anti-interference from mobile phone;
Support”PnP” to keep system’s safty and stability.
Support hear back-up function to keep the system’s safty and stability.
Support conference rooms splitting/combining function.
Built-in 8x8 video matrix switching.
Three RS-232 ports which can connect PC and central control system.
Can control HD video matrix directly to switch the videos.
Support video tracking function. It can control cameras offline to setup presetting bit.
It has RS-422, RS-485 and RS-232(need convertor) video control modes.
Can connect other capacitive microphones or dynamic microphones.
It has emergency broadcast signal port.
Built-in balance and unbalance audio input/output ports.
It has ports to connect interpretation consoles directly, max 64 channel interpretation.
5 MIC management modes
Limited mode, set the number of delegates permitted to speak at the same time (1/2/3/4)
FIFO mode, microphone key control with override of the active microphones
Apply mode, microphone key with request-to-speak registration
Voice-activated microphones
Free discussion mode
Five unit output channels and support 100pcs speaking units.
System has “Line hand in hand connection”, “Y type hand in hand connection”, “distribution box connection”, “Audio connection box connection” and “ring type hand in hand connection”
System has “Conference” and “Speech” modes.
It adopts RS-232 protoco connection between system controller and PC. The transmission is safe and stable.
Aluminium alloy case, antistatic. It can prevent 8000V static.
The system passes ISO9001:2000 certification and has ROHS, CE, FCC, CCC certification.
Adopts 2U international standard design which can be installed in 19inch case.
Built-in international common use power and stabilized system.
Working with conference management software to achieve more increment functions

Working power: AC100~ 240V, 50/60Hz
Working consumption: Static state 25W, Maximum 400w
Display: 2.8 inch screen
Menu: Chinese/English or custom made
Capacity of each way: 20pcs
Unit capacity: 100 multi-function units
Transmission distance: 150M
Voltage of unit output port: 24V
Audio output: RCA X 2 2V p-p 6.3mmx1 -50Db XLRX1 -50DB
Audio input: RCA X 2 2V p-p XLR X 1 -50dB
Output impedance: 47KΩ
Frequency response: 20 ~ 20KHz
SNR: 102Db
Dynamic range: 106Db
Total harmonic distortion: ﹤0.05%
Capacitive mic connector: 1 channel
Double machine heat back-up: YES
Unit ID number: User defined
Quantity of possible chairman units: 150pcs
Serial port control: Three serial ports which can connect PC or programmable central control system
Working modes: 5 modes
Quantity of turnning on units: 1/2/3/4/5/6/or all
Speaking limit function: YES
Video control type: RS-422/RS-485
Unit connector: 6pin DIN
Balling unit capacity: 8 pcs
Video matrix: 8x8 channel
Quantity of panorama: 8X4 channel can setup switching time & order
Video output level: RCA X 41.08V p-p
Video output impedance: 75Ω
Video bandwidth(-3dB): 30MHz
Color: Dark grey
Net weight: 8KG
Dimension: 432L x 90H x 350W mm
Installation: Suitable for 19 inch standard stand
