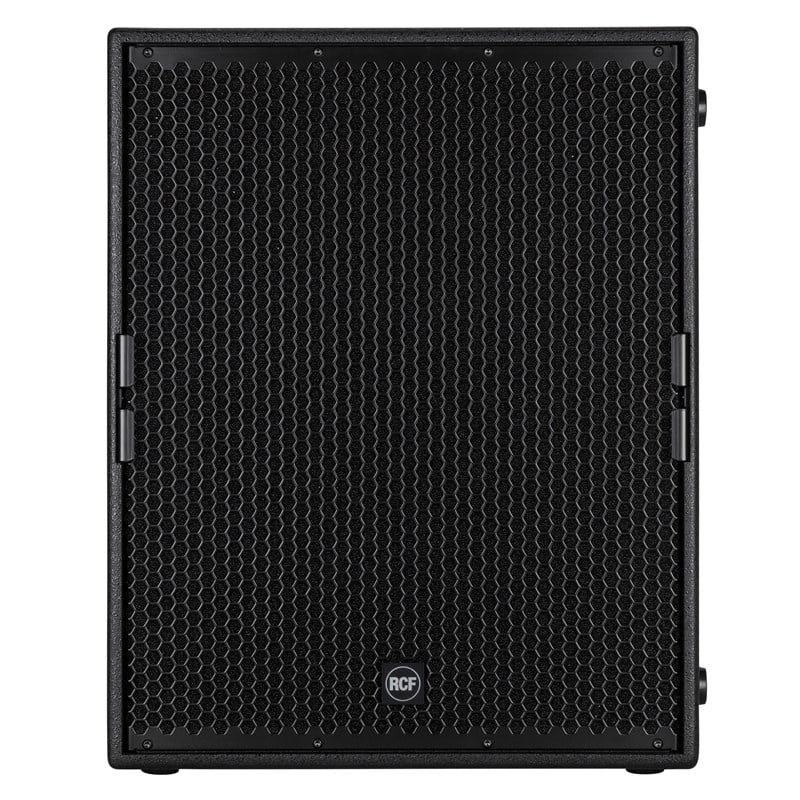

Rcf SUB 9004-AS 18 inç 1400 Watt RMS RDNet Kontrollü Aktif Subbass
The SUB 9004-AS is a single 18” high power active subwoofer. It employs a state of the art transducer featuring a hypervented high power neodymium magnetic circuit with 4” voice coil. The extremely high power amplifier is a new design that delivers extended low frequency performance. Due to its rugged construction it is perfect for AV rental inventories. • 2800 W power rating • 136 dB SPL Max • 30 - 400 Hz Frequency Range • 1 x 18" Hyper Ventilation Neodymium Subwoofer • DSP Controlled Input Section with selectable presets • RDNet remote monitoring and control • Delay Control • Baltic Birch Cabinet
RCF RDNet NETWORKED CONTROL AND MUCH MORE RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
CABINET The cabinet is made of high-quality birch plywood with weatherproof treatment. The subs are stackable and lightweight, for an easy set-up and tear down. A pole receptacle on the top and side allows the woofer to be used in various configurations. The heavy-duty coating and the rugged structure of the cabinet withstand long-term use and transportation and the separate housing for the amplifier guarantees component efficiency and reliability. Transportation is fast thanks to the detachable Kart kit, a dolly caster-board with rugged tour grade casters and rotating cam mechanism.
TOP END ELECTRONICS The amplifier integrates a low-noise 32-bit DSP circuit, controlled through the RCF proprietary RDNet network to easily handle the soft clipping limiters, RMS limits, polarity, amplitude, timing and equalisation. All the settings, monitoring and advanced features are available inside the RDNet Networked Management software. The available control panel on the back adjusts input sensitivity, Low Cut, Xover, volume, bypass, delay and presets selection. The regulated power supply guarantees full power from 100 V to 260 V. The amplifier houses on a unique Vibrostop floating aluminium panel for extra protection during transportation.
HYPER VENTILATION SYSTEM RCF manufactures these components to deliver the cleanest, punchiest, and undistorted low frequencies reproduction. The cone is composed of 30% carbon fibre, 20% fibreglass and 50% cellulose pulp. This particular chemical composition has been carefully developed to improve the robustness and rigidness of the cone avoiding any deformation that would result in a loss of efficiency. The 4.0" inside/outside voice coil is wounded on a strong fibreglass former and guarantees a more efficient cooling. The former is internally and externally reinforced with Nomex that stiffen the overall structure for a better energy transfer between the voice coil and the body cone. In order to dissipate the heat generated by the powerful voice coil, RCF engineers have developed the unique Hyper Ventilation system with very low power compression. The cone is water resistant.
FREQUENCY RESPONSE: 30 Hz ÷ 400 Hz MAX SPL @ 1M: 136 dB WOOFER: 18" neo, 4.0" v.c INPUT CONNECTORS: XLR, RDNet Ethercon OUTPUT CONNECTORS: XLR, RDNet Ethercon INPUT SIGNAL: bal/unbal INPUT SENSITIVITY: +4 dBu PROTECTIONS: Thermal, RMS LIMITER: Fast Limiter HI-PASS/LOW-PASS FREQUENCIES: 35 Hz, 50 Hz / Variable from 50 Hz to 400 Hz CONTROLS: Gain, Eq., Preset Switch, Output Delay RDNet: Yes TOTAL POWER: 2800 W Peak, 1400 W RMS COOLING: Forced
CE MARKING: Yes CONNECTIONS: Powercon IN/OUT CABINET/CASE MATERIAL: Baltic birch plywood HARDWARE: 2xM20 HANDLES: 2 side POLE MOUNT/CAP: Yes GRILLE: Steel COLOR: Black HEIGHT: 700 mm / 27.56 inches WIDTH: 558 mm / 21.97 inches DEPTH: 700 mm / 27.56 inches WEIGHT: 57 kg / 125.66 lbs PACKAGE HEIGHT: 770 mm / 30.31 inches PACKAGE WIDTH: 770 mm / 30.31 inches PACKAGE DEPTH: 630 mm / 24.8 inches PACKAGE WEIGHT: 61.8 kg / 136.25 lbs
