Marka : RCF
İndirim Oranı : %51 İndirim
Fiyat : $5,268.50(KDV Dahil)
İndirimli : $2,582.60(KDV Dahil)

1400W peak 700W RMS, 15"LF 1.4"HF 2-way class-D amplifier

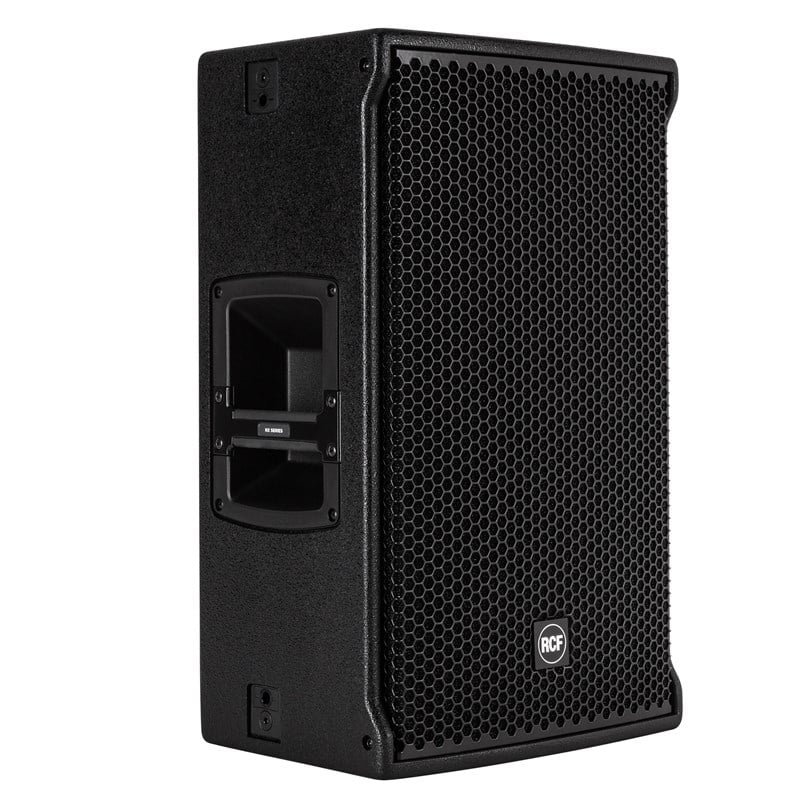

Rcf NX 45-A 15 inç 700W RMS Çok Amaçlı Aktif Kabin



The NX 45-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-power and pristine sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a front, down or side fill speaker.

• 1400 W 2-way class-D amplifier
• 133 dB SPL Max
• 45 – 20000 Hz Frequency Range
• 90° x 50° constant directivity coverage
• 15" neodymium woofer, 3.5" voice coil
• Horn loaded 4.0" neodymium c. driver
• Multiple rigging points
RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.



SUPERIOR COMPRESSION DRIVERS
The RCF Compression Drivers in pure Titanium are perfect for a crossover point lower than 800 Hz. This allows a better impulse response, fast decay and superior efficiency. Lightweight and powerful, our neodymium drivers are a reference in performance and reliability.
The voice coil features a high-temperature kapton former. The assembly process takes advantage of the RCF proprietary Direct Drive technology. The diaphragm’ s suspension has been designed following extensive studies aimed at minimising distortion and extending low frequency range.

POWERFUL CLASS D AMPLIFIERS
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. NX amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the NX amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.



FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
MAX SPL @ 1M: 133 dB
HORIZONTAL/VERTICAL COVERAGE ANGLE:90°/50°
COMPRESSION DRIVER: Coaxial 1.4" neo, 4.0" v.c
WOOFER: 15" neo, 3.5" v.c
INPUT CONNECTORS: XRL, Jack
OUTPUT CONNECTORS: XLR
INPUT SIGNAL: bal/unbal
INPUT SENSITIVITY: -2 dBu/+4 dBu
MIC. INPUT SENSITIVITY: -32dBu
CROSSOVER FREQUENCIES: 650 Hz
PROTECTIONS: RMS, HF
LIMITER: Soft Limiter
HIGH/LOW FREQUENCIES: 400 W Peak, 200 W RMS/ 1000 W Peak, 500 W RMS
CONTROLS: Volume, boost, Mic/Line
RDNet: Yes
TOTAL POWER: 1400 W Peak, 700 W RMS

COOLING: Convection
CE MARKING: Yes
CONNECTIONS: Powercon IN/OUT
CABINET/CASE MATERIAL: Baltic birch plywood
HARDWARE: 5 x M10, 4 x quick lock
HANDLES: 2 side
POLE MOUNT/CAP: Yes
GRILLE: Steel
COLOR: Black
HEIGHT: 707 mm / 27.83 inches
WIDTH: 418 mm / 16.46 inches
DEPTH: 402 mm / 15.83 inches
WEIGHT: 24 kg / 52.91 lbs
PACKAGE HEIGHT: 760 mm / 29.92 inches
PACKAGE WIDTH: 480 mm / 18.9 inches
PACKAGE DEPTH: 460 mm / 18.11 inches
PACKAGE WEIGHT: 27 kg / 59.52 lbs
