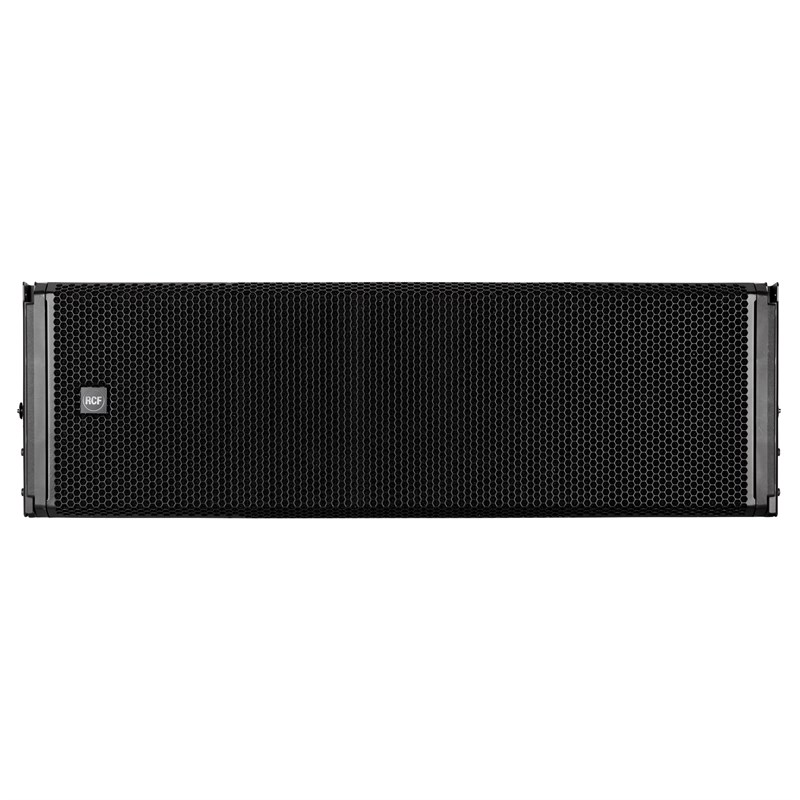

Rcf HDL 50-A 2x12 inç 2200W RMS 3 Yollu Aktif Line Array Modül
The HDL 50-A is a true active high power speaker system ready to use touring system for large events, indoors and outdoors. Equipped with 2x12” woofers, 4x symmetrical 6.5” midranges and two 2” drivers, it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement. Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying. The HDL 53-AS is the ideal flyable bass complement for the HDL 50-A array system. • 4400 Watt, 3 way amplification • 140 dB max SPL • 8 x high power neodymium transducers • 48 kHz, 32 bit DSP processing • RDNet on board • Remote monitoring and control • Symmetrical design • Extremely low weight
RCF RDNet NETWORKED CONTROL AND MUCH MORE RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.
V-SHAPED SYMMETRICAL DESIGN The symmetrical design of the cabinet produces identical left and right coverage. The component positioning and special DSP crossover filtering of the HDL 50-A take care of the constant directivity without spots of break up or attenuation. The originally designed V-SHAPED front baffle provides:
NEODYMIUM RCF PRECISION TRANSDUCERS HIGH FREQUENCIES - The two ND 840 large format compression driver deliver one of the key advantages of the HDL 50-A: the 3.0” voice coil allows a crossover point of 800 Hz and therefore this driver can produce almost all of the vocal range. This allows better coverage and superior efficiency. MID FREQUENCIES - 4 x 2.0” voice coil 6.0”neo midranges - Water resistant fiber doped cone - Polycotton M-roll surround - High power magnetic structure LOW FREQUENCIES - 2 X 3.0”voice coil neodymium 12” woofers - Water resistant fiber doped cone - Polycotton M-roll surround - Hypervented magnetic structure
FREQUENCY RESPONSE: 40 Hz ÷ 20000 Hz MAX SPL @ 1M: 140 dB HORIZONTAL/VERTICAL COVERAGE ANGLE:90°/10° COMPRESSION DRIVER: 2 x 1.4" neo., 3.0" v.c MIDRANGE: 4 x 6.0" neo, 2.0" v.c WOOFER: 2 x 12" neo, 2.5" v.c INPUT CONNECTORS: XLR, RDNet Ethercon OUTPUT CONNECTORS: XLR, RDNet Ethercon INPUT SIGNAL: bal/unbal INPUT SENSITIVITY: +4 dBu CROSSOVER FREQUENCIES: 200 Hz - 800 Hz PROTECTIONS: Thermal, RMS LIMITER: Soft Limiter HIGH FREQUENCIES: 1100 W Peak, 550 W RMS LOW FREQUENCIES: 2200 W Peak, 1100 W RMS MID FREQUENCIES: 1100 W Peak, 550 W RMS TOTAL POWER: 4400 W Peak, 2200 W RMS CONTROLS: PCluster size, HF correction, RDNET
COOLING: Convection CE MARKING: Yes CONNECTIONS: Powercon IN/OUT CABINET/CASE MATERIAL: Baltic birch plywood HARDWARE: Integrated Mechanics HANDLES: 2 side, 2 rear GRILLE: Steel COLOR: Black HEIGHT: 366 mm / 14.41 inches WIDTH: 1171 mm / 46.1 inches DEPTH: 502 mm / 19.76 inches WEIGHT: 56 kg / 123.46 lbs PACKAGE HEIGHT: 400 mm / 15.75 inches PACKAGE WIDTH: 1200 mm / 47.24 inches PACKAGE DEPTH: 600 mm / 23.62 inches PACKAGE WEIGHT: 60 kg / 132.28 lbs
