Marka : RCF
İndirim Oranı : %51 İndirim
Fiyat : $14,124.40(KDV Dahil)
İndirimli : $6,923.72(KDV Dahil)

2x10" LF, 1x1.4" HF, 2200 W Peak, 1100 W RMS



Rcf HDL 30-A 2x10 inç 1100W RMS Aktif Line Array Modül

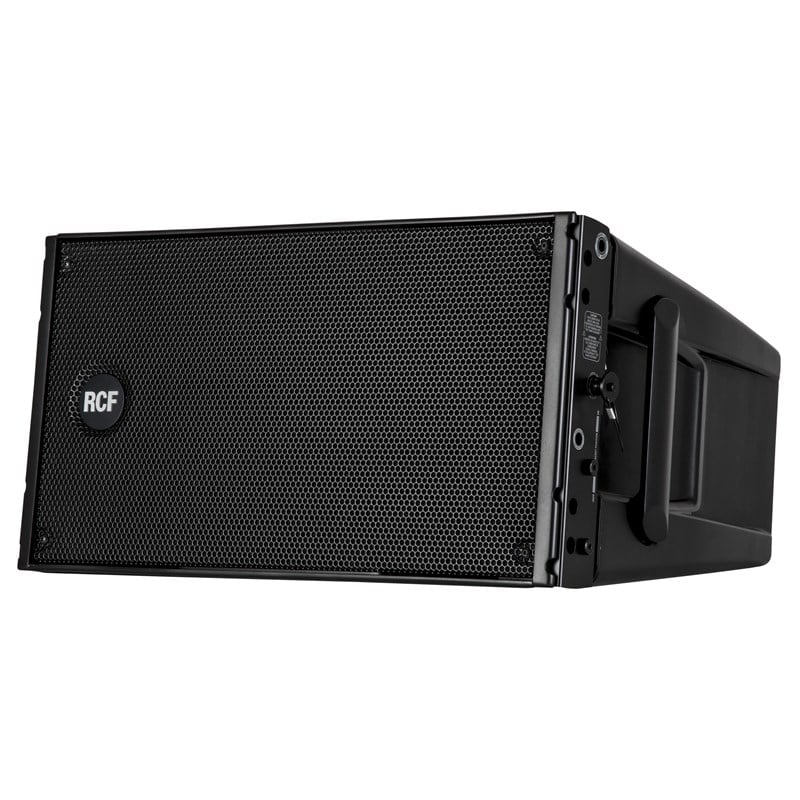

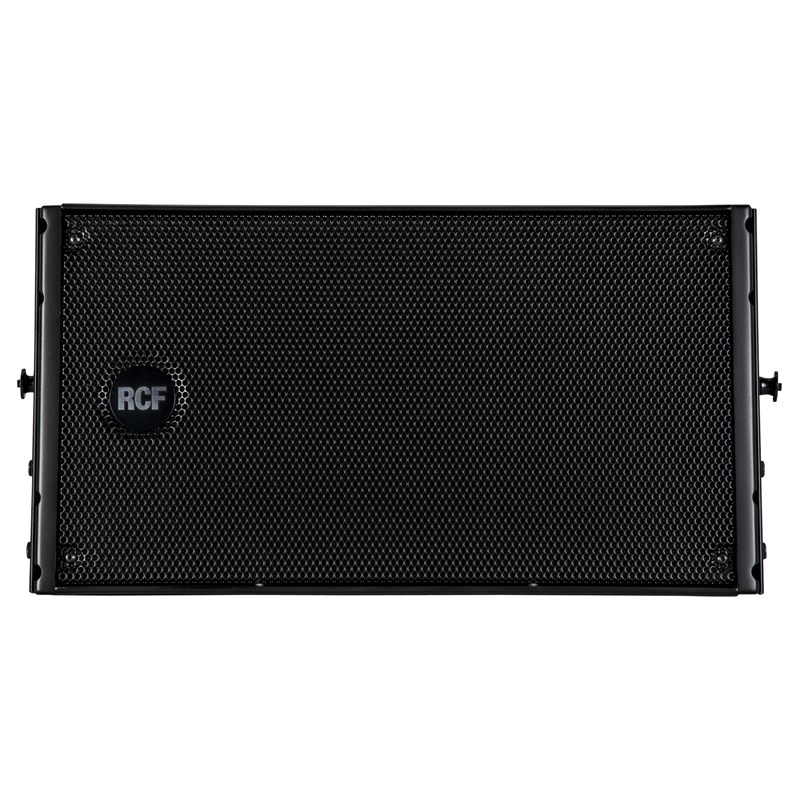

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.

• 2200W Two Way Amplifier
• 137 dB Max SPL
• 48 kHz, 32 bit DSP processing
• 1.4" Titanium Compression Driver, 4.0" voice coil
• 2 x 10" Neodymium Woofers, 2.5" voice coil
• Exclusive FiRPHASE technology on-board
• RDNet Control and Management
• 680 Hz Crossover Point



RCF RDNet
NETWORKED CONTROL AND MUCH MORE

RDNet is a robust management network and control platform for small, medium and large arena-sized sound systems, as well as complex and extended installations. Based on a proprietary network protocol, RDNet provides intuitive control and monitoring of every connected device/object in the RCF audio system. Each device has DSP to address specific presets or modifications of parameters to single or groups of objects. A network user can change level, delay, EQ (linear phase FiR as well) and other settings, including advanced subwoofer configurations. RDNet is not only designed for loudspeakers—you can control parameters and routing of multiple RCF devices, such as digital matrixes or amplifiers.

POWERFUL CLASS D AMPLIFIER
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. HDL amplifiers deliver a ultra-fast attack, realistic transient response, and impressive audio performance. The amplifier features a solid machined aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the HDL amplifiers present SMPS power supply section to produce maximum output and minimum weight.

THE IDEAL FLYABLE BASS COMPLEMENT
It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor venues. The built-in 3200W Class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. With RDNet compatibility, the HDL 38-AS is part of the professional HDL System.





FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
MAX SPL @ 1M: 137 dB
HORIZONTAL/VERTICAL COVERAGE ANGLE:100°/15°
COMPRESSION DRIVER: 1 x 1.4", 4.0" v.c
WOOFER: 2 x 10", 2.5" v.c
INPUT CONNECTORS: XLR, RDNet Ethercon
OUTPUT CONNECTORS: XLR, RDNet Ethercon
INPUT SIGNAL: bal/unbal
INPUT SENSITIVITY: +4 dBu
CROSSOVER FREQUENCIES: 680 Hz
PROTECTIONS: Thermal, RMS
LIMITER: Soft Limiter
HIGH/LOW FREQUENCIES: 600 W Peak, 300 W RMS/ 1600 W Peak, 800 W RMS
CONTROLS: Preset, RDNet bypass
TOTAL POWER: 2200 W Peak, 1100 W RMS

COOLING: Convection
CE MARKING: Yes
CONNECTIONS: Powercon IN/OUT
CABINET/CASE MATERIAL: PP Composite
HARDWARE: Array fittings
HANDLES: 2 side
GRILLE: Steel
COLOR: Black
HEIGHT: 294 mm / 11.57 inches
WIDTH: 705 mm / 27.76 inches
DEPTH: 502 mm / 19.76 inches
WEIGHT: 25 kg / 55.12 lbs
PACKAGE HEIGHT: 375 mm / 14.76 inches
PACKAGE WIDTH: 800 mm / 31.5 inches
PACKAGE DEPTH: 500 mm / 19.69 inches
PACKAGE WEIGHT: 28.2 kg / 62.17 lbs




Aktif-Pasif
Aktif
